Automated Water Bottle Filling Machine For Liquid Filling Line Bottle Filler Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Automated Water Bottle Filling Machine Prices Water Plant Machine Filling Equipment | Application: | Pure Water|mineral Water|beverage |
|---|---|---|---|
| Voltage: | 110V|220V|380V | Automatic Grade: | Automatic|automated |
| Power: | 3.8KW | Capacity: | 200ml|2000ml|10000BPH |
| Driven Type: | Electric | Material: | Stainless Steel |
| Processing: | Bottle Packing Machine | ||
| High Light: | automatic bottle filling machine,water filling machine |
||
Automated Water Bottle Filling Machine For Liquid Filling Line Bottle Filler Machine
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Power: 3.8KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 2900*2450*2400mm
Weight: 3T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Output: 2000-20000BPH
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Name:Water Bottle Filling Machine
32-32-10 Purified Water Filling Machine for Sale Plastic Screw Cap 28mm
Description:
1. The whole machine adopts card bottle hanging running state design, so that the bottle under high-speed operation stable and reliable. Change a few fittings, Can be quickly and easily implement different bottle production need.

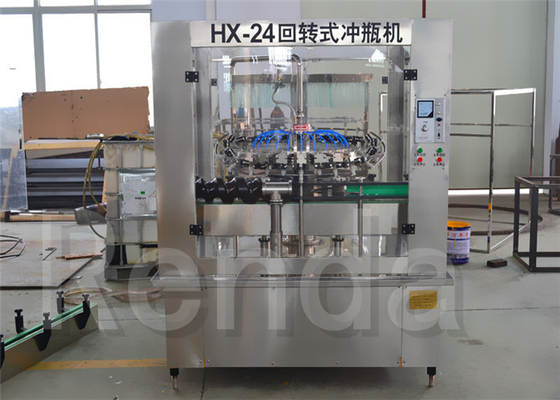

2. Using a new generation of tilting bottles clamp, stainless steel clamps and the bottle thread above part does not contact, bottle clamp with shower, to wash the bottle of any part of the wall.

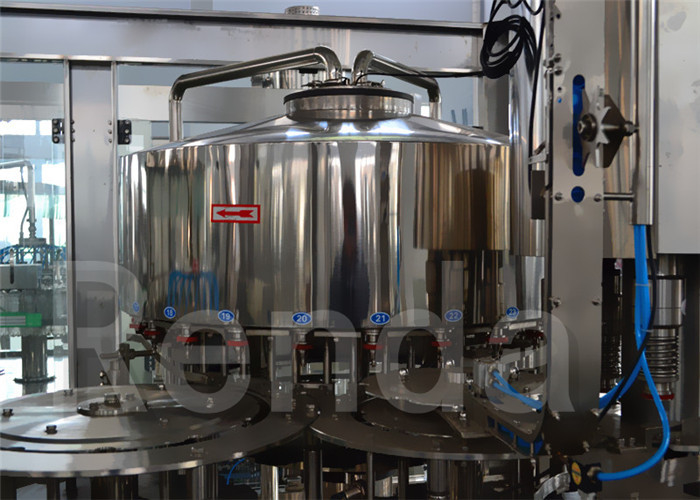

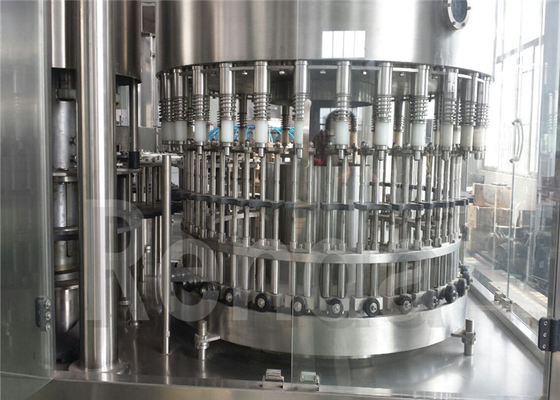

3. Using advanced micro gravity type negative pressure filling principle, filling fast, stable and accurate. Silos is fully enclosed structure, there is the function of temperature control and automatic reflow, and provide the CIP cleaning interface.
4. This machine satisfies the requirement :of below 95 degrees Celsius hot filling technology, before-capping, equipped with bottle R.O. water flushing device, To ensure that the bottle no moldy phenomenon.

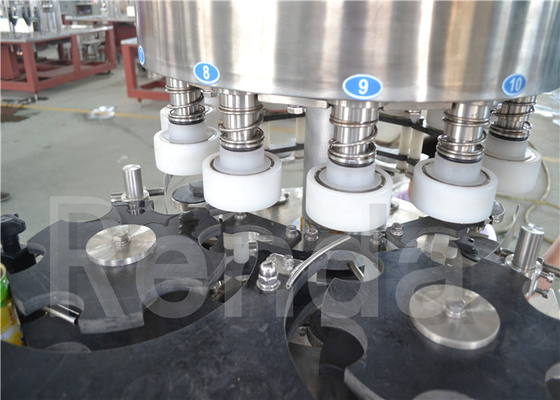

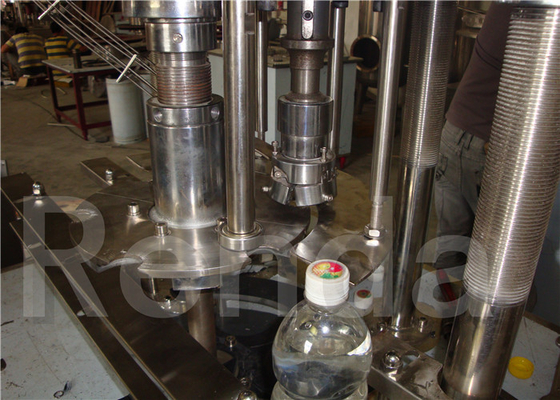

5. Using magnetic torque type screw cap, Pincer-like device tight and reliable and does not hurt cover.
6. The machine adopts the man-machine interface, PLC computer control, touch screen button. there is lack of cover, overload protection and alarm device, can timely detection and troubleshooting, high degree of automation of production
7. And material contact parts adopt high quality stainless steel manufacturing, the main electric components and pneumatic components adopt international famous manufacturers.
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
Automated Water Bottle Filling Machine Prices Water Plant Machine Filling Equipment
Main Technical Paramaters:
| Model | Washing head no. | Filling head no. | Capping head no. | Production capacity(500ml) | Overall size(mm) | Weight(kg) | Filler type | Power of main motor(kw) |
| 8-8-3 | 8 | 8 | 3 | 2000-2500 | 1800*1500*2100 | 2000 | normal pressure filling method | 1.8 |
| 12-12-6 | 12 | 12 | 6 | 3000-4000 | 2100*1760*2350 | 2500 | 2.0 | |
| 18-18-6 | 18 | 18 | 6 | 7000-8000 | 2400*2000*2400 | 3000 | 3.5 | |
| 24-24-8 | 24 | 24 | 8 | 8000-10000 | 2500*2100*2400 | 3500 | 4.5 | |
| 32-32-10 | 32 | 32 | 10 | 12500-15000 | 2900*2100*2650 | 4300 | 5.5 | |
| 40-40-10 | 40 | 40 | 10 | 15000-18000 | 4350*2880*3200 | 6000 | 5.5 | |
| 50-50-12 | 50 | 50 | 12 | 20000-23000 | 4850*3800*3200 | 7500 | 7.5 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download more details:
8000-10000Water Bottling Equipment.pdf
12000-15000BPH Water Filling Production Line.pdf
18000-20000BPH Beverage filling machine.pdf
6000-8000 Water Bottling Production Line.pdf
2000-4000 Bottles per hour water filling plant.pdf
Manufacturing more machines:
Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.
Automated Water Bottle Filling Machine Prices Water Plant Machine Filling Equipment
Wooden case packing:

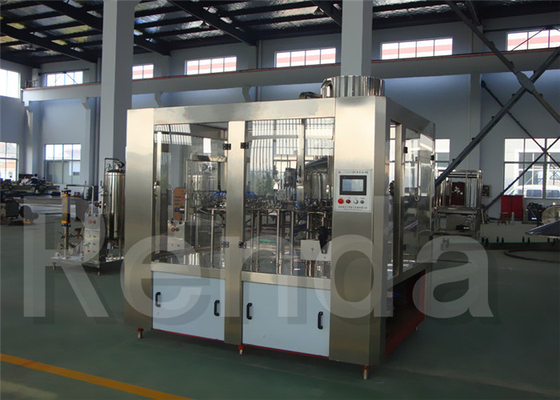

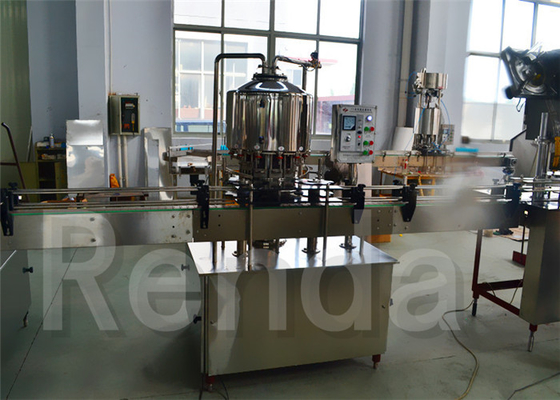

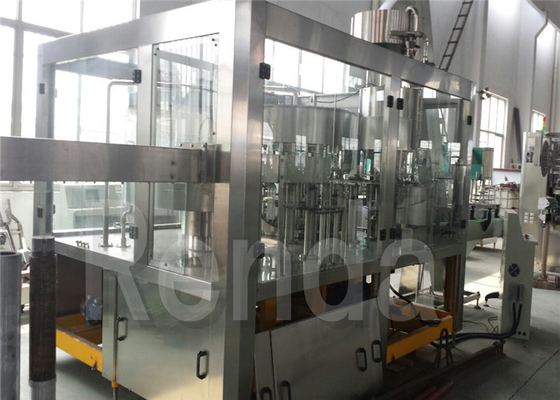

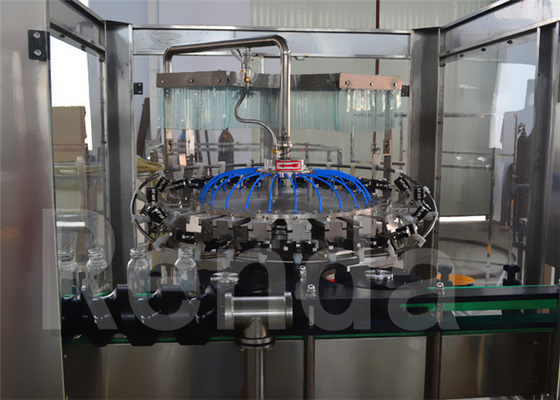

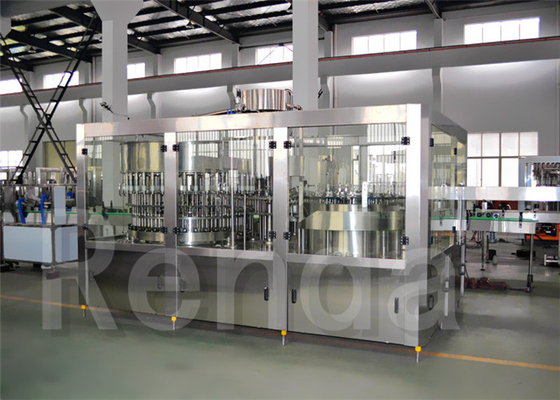

Machine Pictures:
Products Sample:
