200 ml - 2000 ml Automatic Liquid Filler Machine , Water Bottle Filling Machine And Equipment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 2000ml|8000BPH |
|---|---|---|---|
| Certification: | CE|ISO | Processing: | Bottle Filling And Packing Machine |
| Product Name: | Volumetric Filler 200ml-2000ml Automatic Bottling Machine Water Filling Machine For Sale | Voltage: | 110V|220V|380V |
| Power: | 3.2KW | Material: | SUS 304/316 |
| High Light: | beverage filling machine,automatic bottle filling machine |
||
200 ml - 2000 ml Automatic Liquid Filler Machine , Water Bottle Filling Machine And Equipment
Quick Detail:
Driven Type: Electric
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
no bottle, no filling
easy operation and maintenance
Name:Water Bottle Filling Machine
Description:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

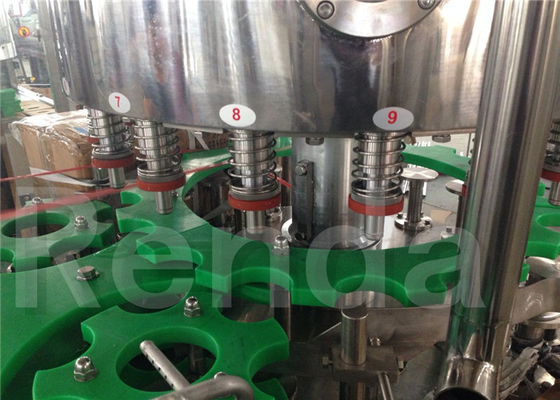

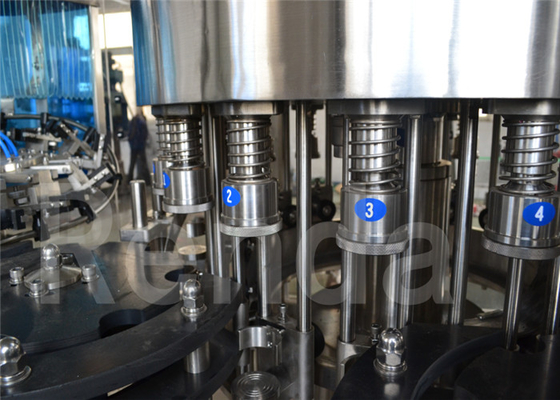

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Applications:

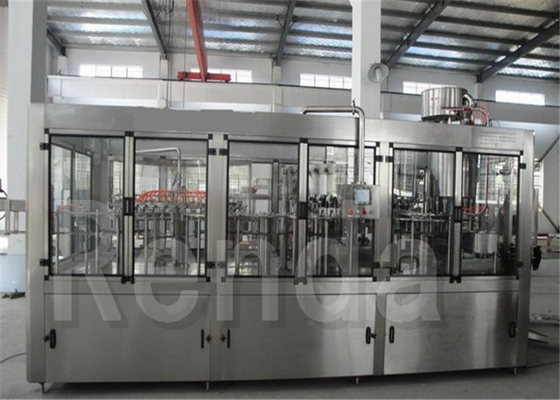

Mineral water bottling machine with 3-in-1 mono-block contains washing, filling and capping with complete automation. It is suitable for filling water, such as mineral water, pure water into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable.
Specifications:
Main Technical Specifications | |
Model | CGF18-18-6 |
Production capacity(500ml)(b/h) | 6000-8000b/h |
Way of filling | micro-negative pressure filling |
Filling precision | ±5mm |
Feedback consumption | ≤8% |
Polyester bottle standard(mm) | Bottle Dimaeterƒ50-ƒ92;Height:150-320 |
Suitable cap shape | Plastic cap |
Water pressure of washing bottle(M pa) | 0.2-0.25 |
Water consumption for water bottle(kg/h) | 800 |
Gas source pressure (M Pa) | 0.4 |
Total power(Kw) | 3.2 |
Total Weight(Kg) | 2500 |
Dimension(L*W*Hmm) | 2500*2010*2500 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download for more details:
6000-8000 Water Bottling Production Line.pdf
Volumetric Filler 200ml-2000ml Automatic Bottling Machine Water Filling Machine for Sale
