2000 ml PET Bottle Filling Sealing Water Bottle Filling Machine , Automatic Water Bottling Equipment

2000 ml PET Bottle Filling Sealing Water Bottle Filling Machine , Automatic Water Bottling Equipment

Quick Detail:

Driven Type: Electric

Voltage: 110/220/380V

Power: 3.8KW

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H): 2900*2450*2400mm

Weight: 3T

Certification: CE,ISO

Processing: bottle packing machine

Suitable Bottle: 0.25-2L

Output: 2000-20000BPH

Material: stainless steel

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Name: Water Bottle Filling Machine

2000ml PET Bottling System, Automatic Bottle Filler,12-12-6 Washing Filling Capping Three in One

Description:

1,The air conveyor is directly connected with bottle-in star wheel. The bottle is transferred by neck holding.
2,High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
3,By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
4,Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
5,The high speed line is of ring type pressure bearing hydraulic cylinder.
6,High speed and large flow filling valve assures the high filling speed and exact fluid level.
7,Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
8,The bottle-out star wheel is of screw down shape. When bottle size is changed, there is no need to adjust the transferring chain's height.

Applications:

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

2000ml PET Bottling System, Automatic Bottle Filler,12-12-6 Washing Filling Capping Three in One

Specifications:

Competitive Advantage:

1. Best price & best quality

2. Custom-made details

3. Delievery in time.

4. Life-time good service.

Download more details:

8000-10000Water Bottling Equipment.pdf

12000-15000BPH Water Filling Production Line.pdf

18000-20000BPH Beverage filling machine.pdf

6000-8000 Water Bottling Production Line.pdf

2000-4000 Bottles per hour water filling plant.pdf

Manufacturing more machines:

Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.

2000ml PET Bottling System, Automatic Bottle Filler,12-12-6 Washing Filling Capping Three in One

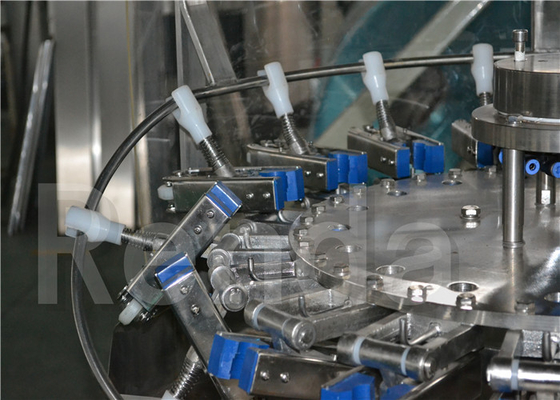

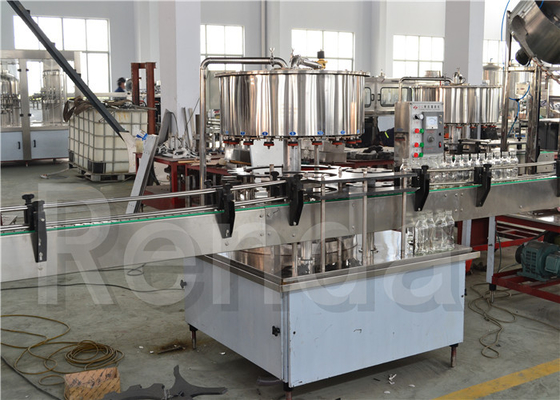

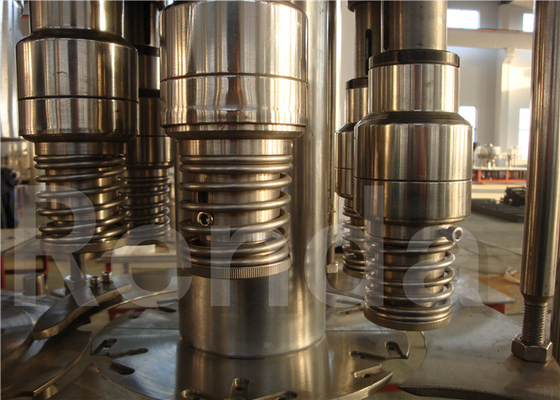

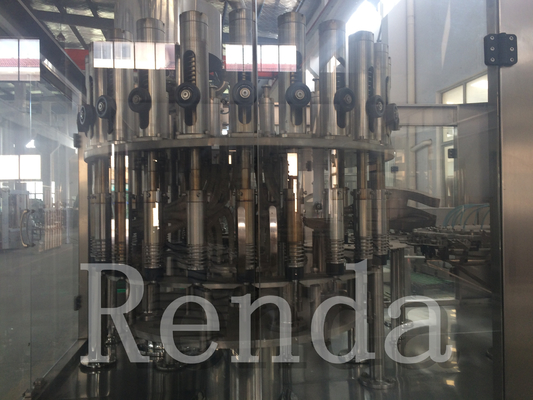

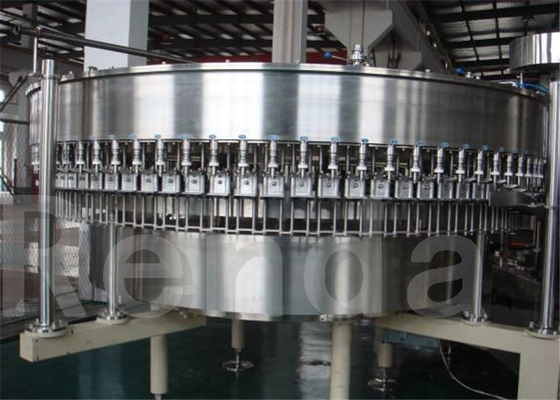

Machine Pictures:
