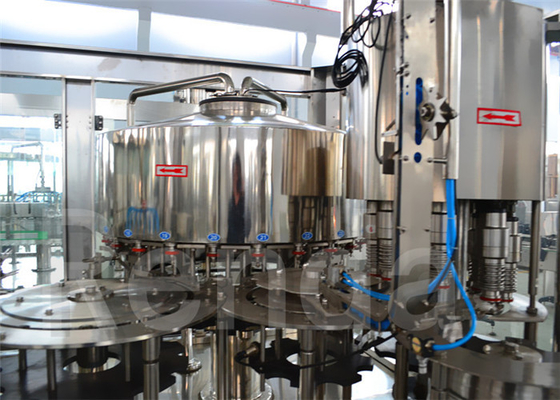

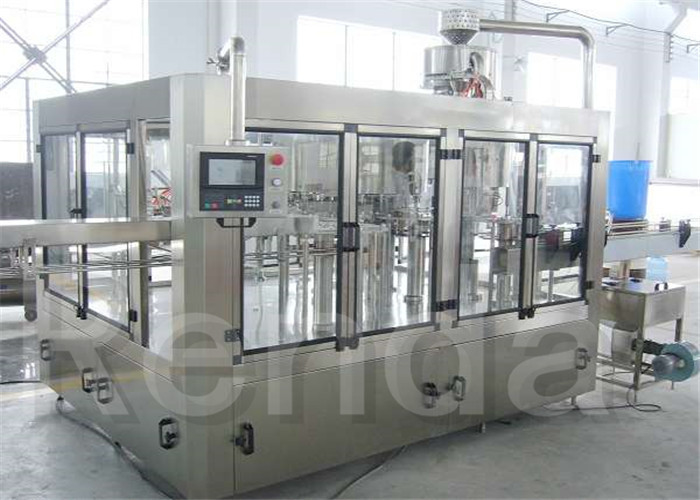

Automated CGF40-40-10 Mineral/Pure Water Bottle Filling Machine 9KW 8000KG 20000BPH

Large Image : Automated CGF40-40-10 Mineral/Pure Water Bottle Filling Machine 9KW 8000KG 20000BPH Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	CGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

Product Name:	Automated CGF40-40-10 Mineral/Pure Water Bottling Machine Prices 9KW 8000KG 20000BPH	Application:	Pure Water\|mineral Water\|beverage
Voltage:	110V\|220V\|380V	Capacity:	200ml\|2000ml\|10000BPH
Certification:	CE\|ISO	Processing:	Bottle Packing Machine
Name:	Name: Water Bottle Filling Machine	Material:	SUS 304 316
High Light:	beverage filling machine , water filling machine

Automated CGF40-40-10 Mineral/Pure Water Bottling Machine Prices 9KW 8000KG 20000BPH

Quick Detail:

Driven Type: Electric

Power: 3.8KW

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H): 2900*2450*2400mm

Weight: 3T

Processing: bottle packing machine

Suitable Bottle: 0.25-2L

Output: 2000-20000BPH

Material: stainless steel

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Name: Water Bottle Filling Machine

32-32-10 Purified Water Filling Machine for Sale Plastic Screw Cap 28mm

Description:

1. The whole machine adopts card bottle hanging running state design, so that the bottle under high-speed operation stable and reliable. Change a few fittings, Can be quickly and easily implement different bottle production need.

2. Using a new generation of tilting bottles clamp, stainless steel clamps and the bottle thread above part does not contact, bottle clamp with shower, to wash the bottle of any part of the wall.

3. Using advanced micro gravity type negative pressure filling principle, filling fast, stable and accurate. Silos is fully enclosed structure, there is the function of temperature control and automatic reflow, and provide the CIP cleaning interface.

4. This machine satisfies the requirement :of below 95 degrees Celsius hot filling technology, before-capping, equipped with bottle R.O. water flushing device, To ensure that the bottle no moldy phenomenon.

5. Using magnetic torque type screw cap, Pincer-like device tight and reliable and does not hurt cover.

6. The machine adopts the man-machine interface, PLC computer control, touch screen button. there is lack of cover, overload protection and alarm device, can timely detection and troubleshooting, high degree of automation of production

7. And material contact parts adopt high quality stainless steel manufacturing, the main electric components and pneumatic components adopt international famous manufacturers.

Applications:

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

Automated CGF40-40-10 Mineral/Pure Water Bottling Machine Prices 9KW 8000KG 20000BPH

Technical Parameter

Model	RGFC 12/12/6	RGFC 18/18/6	RGFC 24/24/8	RGFC 32/32/10	RGFC 40/40/12	RGFC50/50/15	RGFC60/60/15	RGFC72/72/18
Rinsing Head	12	18	24	32	40	50	60	72
Filling Head	12	18	24	32	40	50	60	72
Capping Head	6	6	8	10	12	15	15	18
Capacity (500ml)	2000BPH	8000BPH	12000BPH	15000BPH	18000BPH	21000BPH	24000BPH	27000BPH
Pressure of air source	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Air consumption	0.25M3/min	0.8M3/min	0.8M3/min	0.8M3/min	0.8M3/min	1M3/min	1M3/min	1.2M3/min
Pressure of rinse water	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa
Consumption of rinsing water	1t/hour	1.2t/hour	1.2t/hour	2t/hour	2t/hour	3t/hour	4t/hour	5t/hour
Filling Pressure	0.2-0.3MPa
Suitable bottle size	300ml-1500ml D:50-90mm H:150-320mm	300ml-1500ml D:50-90mm H:150-320mm	300ml-2000ml D:50-115mm H:150-320mm	300ml-2000ml D:50-115mm H:150-320mm	300ml-2500ml D:50-120mm H:150-320mm	300ml-2500ml D:50-120mm H:150-320mm	300ml-2500ml D:50-120mm H:150-320mm	300ml-2500ml D:50-120mm H:150-320mm
Power	2.5KW	3.5KW	4.5KW	5.6KW	6.3KW	7.5KW	11KW	15KW
Weight	2500KG	3000KG	4000KG	5000KG	6000KG	7500KG	8500KG	10000KG
Packing Size (LWH)(mm)	2200×1800 *2300	2300×2000 ×2300	3000×2200 ×2800	4000×2600 ×2800	4700×2950 2800	5100×4800 ×3000	6200×4950×3000	7000×5500×3000

Competitive Advantage:

1. Best price & best quality

2. Custom-made details

3. Delievery in time.

4. Life-time good service.

Download more details:

12000-15000BPH Water Filling Production Line.pdf

18000-20000BPH Beverage filling machine.pdf

6000-8000 Water Bottling Production Line.pdf

2000-4000 Bottles per hour water filling plant.pdf

Manufacturing more machines:

Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.
