Electric Automatic Water Bottle Filling Machine for Water Bottle Plant CE / ISO
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Water Bottle Plant Water Bottle Manufacturing Machine/ CE Bottled Water Equipment | Application: | Pure Water|mineral Water|beverage |
|---|---|---|---|
| Voltage: | 110V|220V|380V | Power: | 3.8KW |
| Capacity: | 200ml|2000ml|10000BPH | Certification: | CE|ISO |
| Processing: | Bottle Packing Machine | Material: | Stainless Steel SUS 304 316 |
| High Light: | automatic bottle filling machine,water filling machine |
||
Electric Automatic Water Bottle Filling Machine for Water Bottle Plant CE / ISO
Quick Detail:
Driven Type: Electric
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 2900*2450*2400mm
Weight: 3T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Name: Water Bottle Filling Machine
Water Bottle Plant Water Bottle Manufacturing Machine/ CE Bottled Water Equipment
Description:
1.Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.
Rinsing-filling-capping 3-in-1 monoblock
- Light checker
- Cap loader
- Conveyor
- Air dryer
- Labeling machine
- Ink jet printer
- Shrink packing machine
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
Water Bottle Plant Water Bottle Manufacturing Machine/ CE Bottled Water Equipment
Specifications:
| CGF12-12-6 | CGF18-18-6 | CGF24-24-8 | |
| Productivity | 2000-4000 BPH | 4000-6000 BPH | 8000-10000 BPH |
| Rinsing Head | 12 | 18 | 24 |
| Liquid Filling Head | 12 | 18 | 24 |
| Capping Head | 6 | 6 | 8 |
| Bottle Volume | 350ml~2000ml±10ml | 350ml~2000ml±10ml | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-90 mm | φ50-90 mm | φ50-90 mm |
| Bottle Height | 150-310 mm | 150-310 mm | 150-310 mm |
| Filling Tolerance | ±2% | ±2% | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps | 28mm and 30mm PE Standard Caps | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.5 MPa | 0.5 MPa | 0.5 MPa |
| Air Consumption | 500 L/min | 500 L/min | 500 L/min |
| Filling Water Consumption | 1.5 m3/h | 3 m3/h | 6 m3/h |
| Rinsing Water Consumption | 0.5 m3/h | 1 m3/h | 2 m3/h |
| Motor Power | 3.5kW | 3.5kW | 4kW |
| Voltage | 380V | 380V | 380V |
| Dimension | (L×W×H) 2640×1520×2340mm | (L×W×H) 2816×1883×2340mm | (L×W×H) 3194×2054×2560mm |
| Weight | 2500kg | 3000kg | 5300kg |
| Filling Principle | Gravity Filling | Gravity Filling | Gravity Filling |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download more details:
8000-10000Water Bottling Equipment.pdf
12000-15000BPH Water Filling Production Line.pdf
18000-20000BPH Beverage filling machine.pdf
6000-8000 Water Bottling Production Line.pdf
2000-4000 Bottles per hour water filling plant.pdf
Manufacturing more machines:
Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.
Electric Sensor Liquid Bottle Filling Machine Water Packing Machine Price Glass Bottle

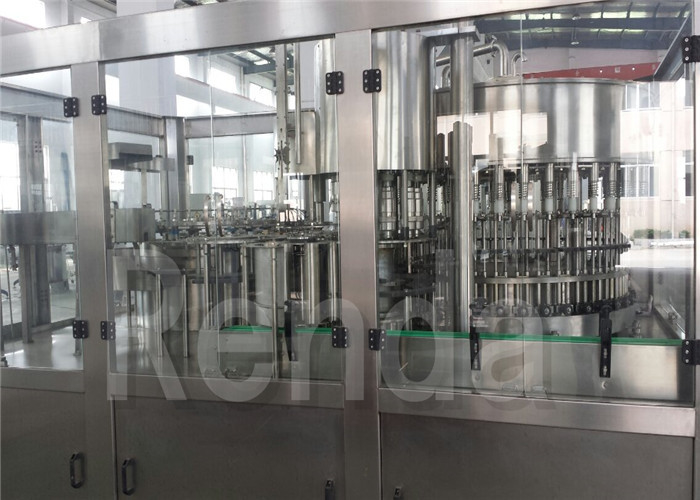

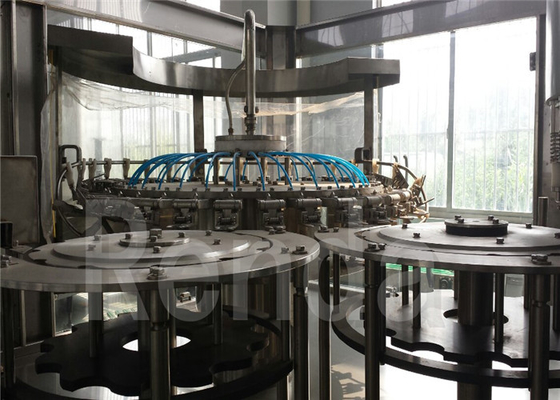

Machine Pictures:
Wooden case packing:
Products Sample:
