3.5KW Automatic Water Bottle Filling Machine Water Bottle Filler With Bottle Capping Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 2000-20000BPH 200ML-20000ML |
|---|---|---|---|
| Driven Type: | Electric | Material: | Stainless Steel SUS304 316 |
| Power: | 4.5KW | Name: | 3.5KW Automatic Bottle Filling Machine Water Bottle Filler With Bottle Capping Machine |
| Voltage: | 110V|380V/Customized | ||
| High Light: | beverage filling machine,water filling machine |
||
3.5KW Automatic Water Bottle Filling Machine Water Bottle Filler With Bottle Capping Machine
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V/Customized
Power: 3.8KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 3100*2300*2800mm
Weight: 3.5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.2-2L
Capacity: 2000-20000BPH
Material: stainless steel
Warranty: 1 year
Packing: Wooden Case Packing
After-sales Service Provided: Engineers available to service machinery overseas
Name: Water Bottle Filling Machine
Description:
1. Automatic Bottling 3 in 1 mineral Water Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304 or SUS316.
2. It is used for filling kinds of non-carbonated water, such as still water, drinking water. mineral water, spring water, flavored water.
3. Its usual production capacity is in 4000-24,000bph, 0.3-2L PET bottle is available.
4. Pivotal electrical part use Mitsubishi, OMRON, SIEMENS.
5. Filling accuracy is more or less than 1%.
6.. We can provide bottle blowing machine, bottle filling machine, labeling machine,wrapping packing machine etc. complete plant solution for PET bottle. with optional capacity from 4,000-24,000BPH.
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
3.5KW Automatic Bottle Filling Machine Water Bottle Filler With Bottle Capping Machine
Specifications:
| Technical Data | ||||
| Model | CGF12/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 |
| The number of Washing, Filling, Capping | 12-12-6 | 18-18-6 | 24-24-8 | 32-32-8 |
| Producing capacity; The number of bottle(600ml)/hour |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
| Pressure (kg/cm2) | 2~3 | |||
| Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
| Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
| Overall dimension (mm) (LxWxH) |
2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 |
| Technical Data | |||
| Model | CGF40/40/10 | CGF48/48/12 | CGF60/60/15 |
| The number of Washing, Filling, Capping | 40-40-10 | 48-48-12 | 60-60-15 |
| Producing capacity: The number of bottle(600ml)/hour |
16000-20000 | 20000-24000 | 25000-30000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||
| Pressure (kg/cm2) | 2~3 | ||
| Motor power (kw) | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
| Outside vacuum pump power (kw) | 2.2 | 3 | 4 |
| Overall dimension (mm) (LxWxH) |
4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
| Weight(kg) | 6800 | 7600 | 9800 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download for more details:
2000-4000 Bottles per hour water filling plant.pdf
6000-8000 Water Bottling Production Line.pdf
8000-10000Water Bottling Equipment.pdf
12000-15000BPH Water Filling Production Line.pdf
18000-20000BPH Beverage filling machine.pdf
Manufacturing more machines:
Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.
3.5KW Automatic Bottle Filling Machine Water Bottle Filler With Bottle Capping Machine

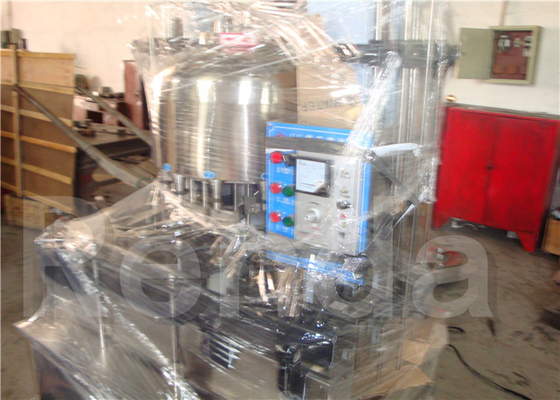

Wooden case packing:

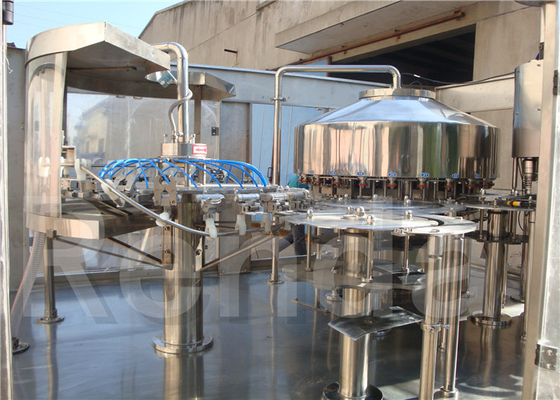

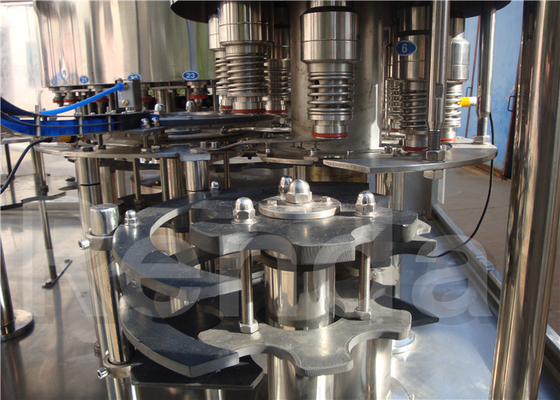

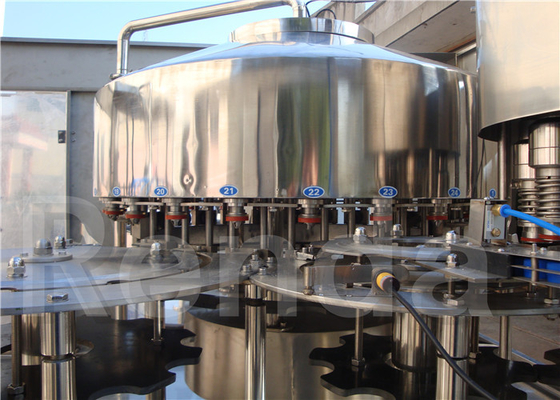

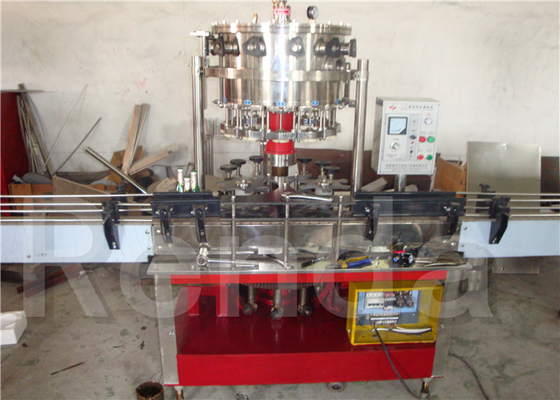

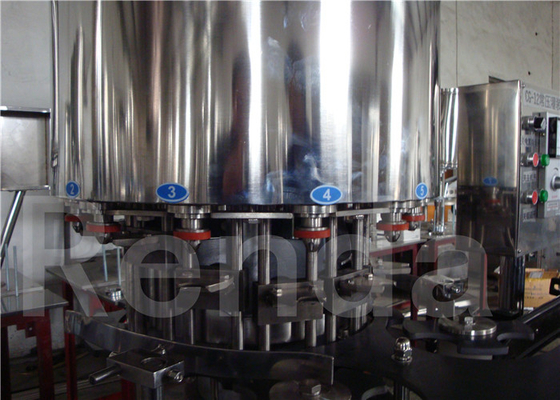

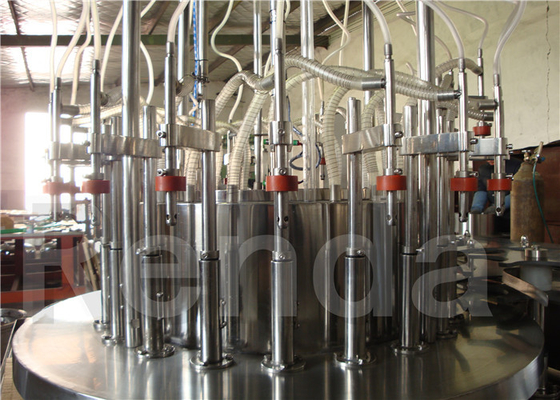

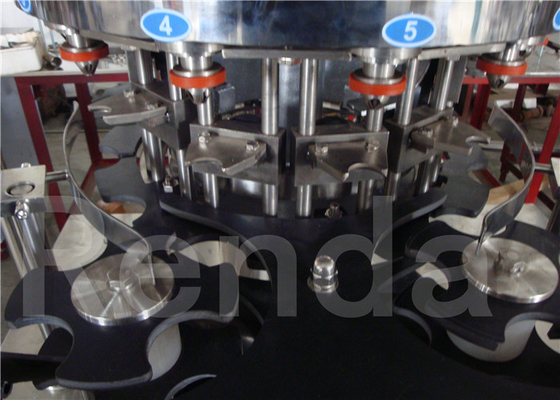

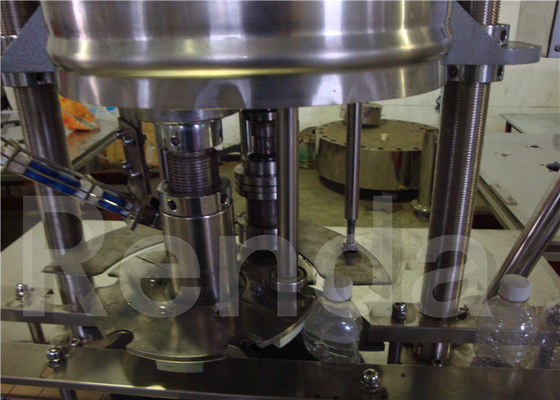

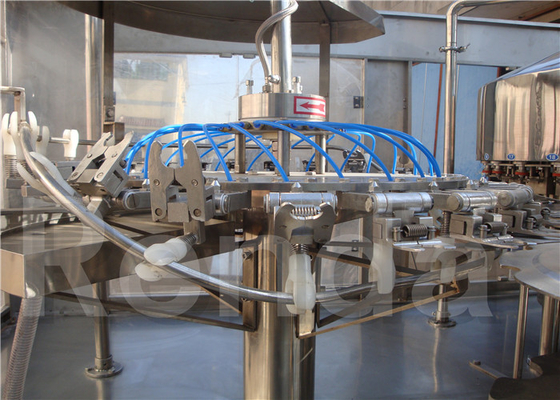

Machine details:
Products sample:
