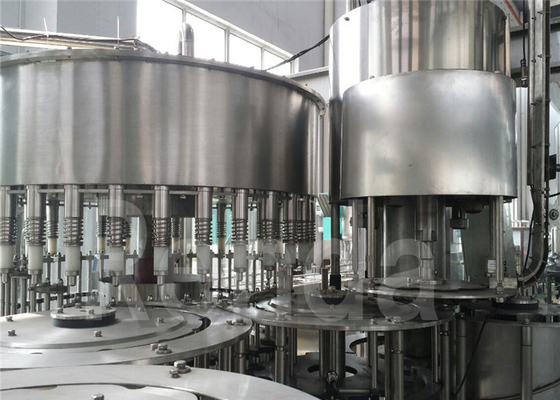

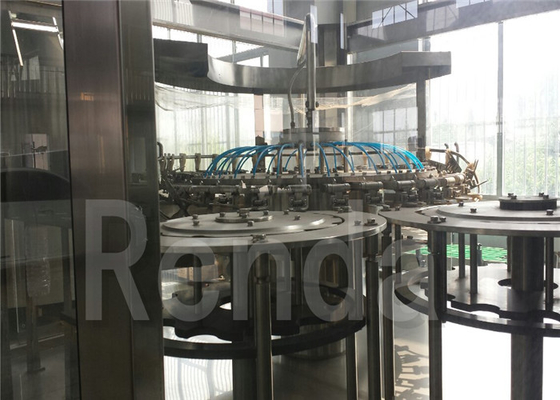

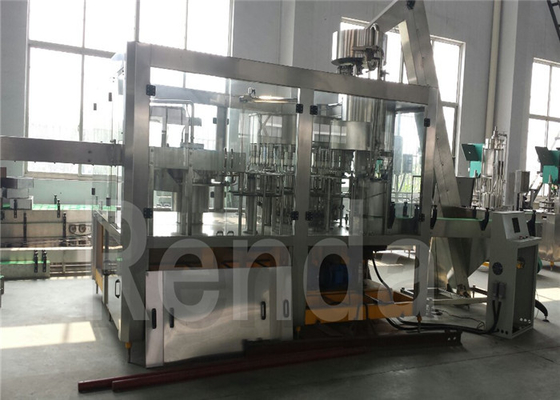

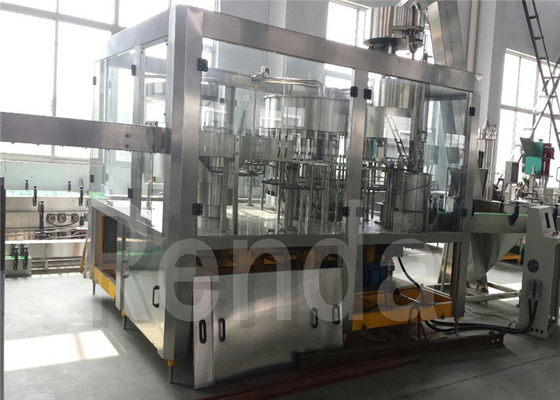

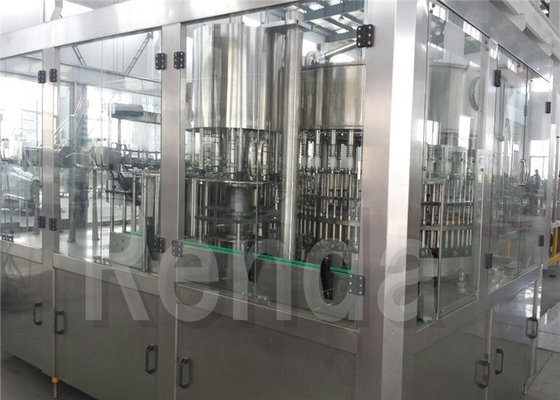

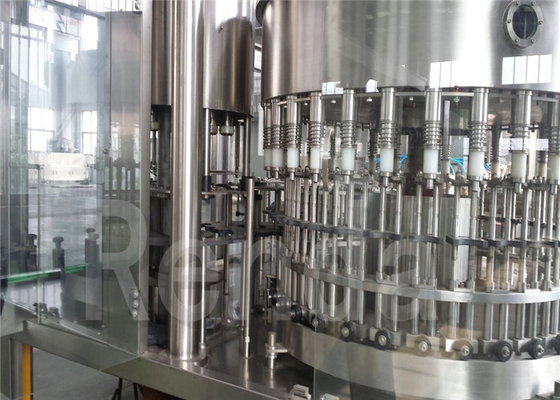

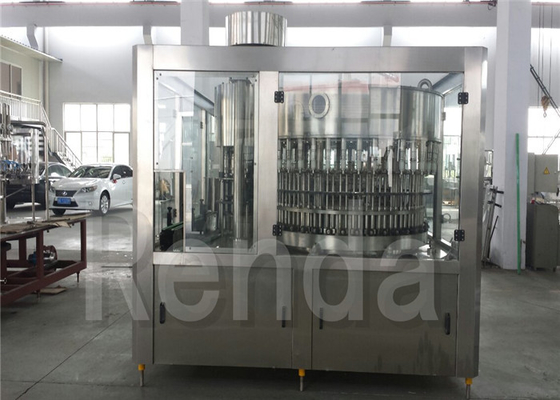

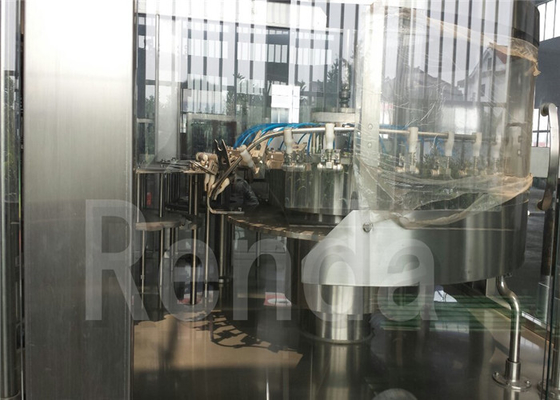

SUS304 Water Bottle Filling Machine 2000ml 10000BPH Sauce Ketchup Mayonnaise CE ISO PET Bottle

Name: SUS304 Water Bottle Filling Machine 2000ml 10000BPH Sauce Ketchup Mayonnaise CE ISO PET Bottle
Brand: Renda
SKU: CGF

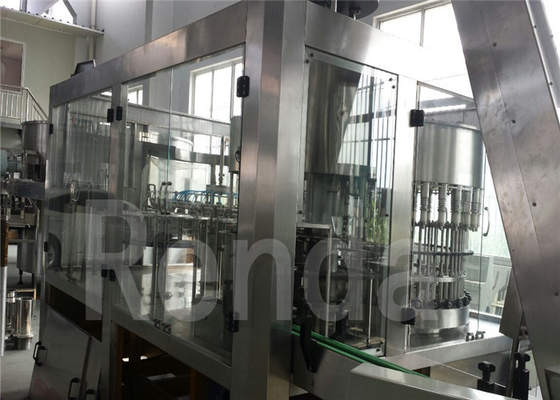

Large Image : SUS304 Water Bottle Filling Machine 2000ml 10000BPH Sauce Ketchup Mayonnaise CE ISO PET Bottle Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	CGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

Application:	Pure Water\|mineral Water\|beverage	Automatic Grade:	Automatic\|automated
Capacity:	2000-20000BPH 200ML-20000ML	Driven Type:	Electric
Material:	Stainless Steel	Power:	4.5KW
Processing:	Bottle Filling And Packing Machine	Voltage:	110V\|380V/customized
High Light:	beverage filling machine , water filling machine

SUS304 Water Bottle Filling Machine 2000ml 10000BPH Sauce Ketchup Mayonnaise CE ISO PET Bottle

Quick Detail:

Name:Water Bottle Filling Machine
Driven Type: Electric
Voltage: 110/220/380V/Customized
Power: 3.8KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 3100*2300*2800mm
Weight: 3.5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.2-2L
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas

Description:

1. This bottling machine is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.

2. Bottle washing, filling and capping are achieved in one machine.

3. The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.

4. CGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.

5. The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.

Applications:

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

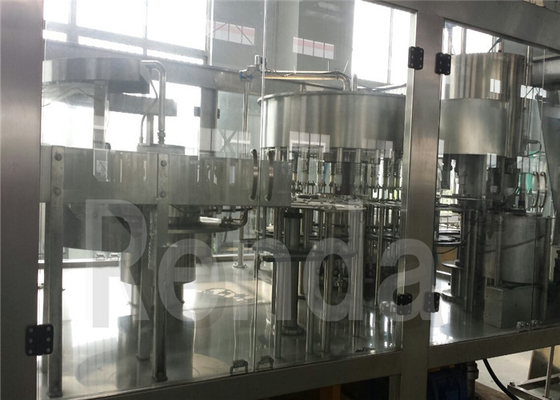

SUS304 Water Bottle Filling Machine 2000ml 10000BPH Sauce Ketchup Mayonnaise CE ISO PET Bottle

Specifications:

Model	CGF12/12/6	CGF18/18/6	CGF24/24/8	CGF32/32/10	CGF40/40/12	CGF50/50/15	CGF60/60/15	CGF72/72/18	CGF80/80/22
Rinsing Head	12	18	24	32	40	50	60	72	80
Filling Head	12	18	24	32	40	50	60	72	80
Capping Head	6	6	8	10	12	15	15	18	22
Capacity (500ml)	3000BPH	8000BPH	12000BPH	15000BPH	18000BPH	21000BPH	24000BPH	27000BPH	30000BPH
Pressure of air source	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Air consumption	0.25M3/min	0.8M3/min	0.8M3/min	0.8M3/min	0.8M3/min	1M3/min	1M3/min	1.2M3/min	1.2M3/min
Pressure of rinse water	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa
Consumption of rinsing water	1t/hour	1.2t/hour	1.2t/hour	2t/hour	2t/hour	3t/hour	4t/hour	5t/hour	5.5t/hour
Filling pressure	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa
Suitable bottle size	H:150-300mm	H:150-340mm; D:Φ50-110mm; can be customized
Power	2.5KW	3.5KW	4.5KW	5.6KW	6.3KW	7.5KW	11KW	15KW	19KW
Weight	2500KG	3000KG	4000KG	5000KG	6000KG	7500KG	8500KG	10000KG	12000KG
Packing Size (LWH)(mm)	2200×1800×2300	2300×2000×2300	3000×2200×2800	4000×2600×2800	4700×2950×2800	5100×4800×3000	6200×4950×3000	7000×5500×3000	7800×6400×300

Competitive Advantage:

1. Best price & best quality

2. Custom-made details

3. Delievery in time.

4. Life-time good service.

Download for more details:

2000-4000 Bottles per hour water filling plant.pdf

6000-8000 Water Bottling Production Line.pdf

8000-10000Water Bottling Equipment.pdf

12000-15000BPH Water Filling Production Line.pdf

18000-20000BPH Beverage filling machine.pdf
