Monoblock 3-in-1 Automatic Bottled Water Bottle Filling Machine CGF Series CE Stainless Steel Bottle Capper

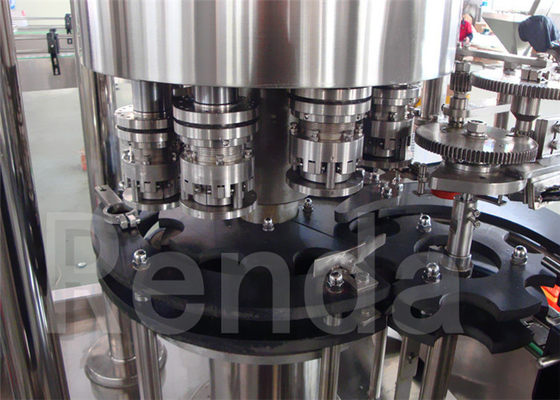

Large Image : Monoblock 3-in-1 Automatic Bottled Water Bottle Filling Machine CGF Series CE Stainless Steel Bottle Capper Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	CGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

Application:	Pure Water\|mineral Water\|beverage	Capacity:	8000BPH\|10000BPH\|2000ml
Material:	Stainless Steel	Power:	3.8KW
Processing:	Bottle Filling And Packing Machine	Product Name:	Monoblock 3-in-1 Automatic Bottled Water Machine CGF Series CE Stainless Steel Bottle Capper
Voltage:	110V\|380V
High Light:	beverage filling machine , automatic bottle filling machine

Monoblock 3-in-1 Automatic Bottled Water Bottle Filling Machine CGF Series CE Stainless Steel Bottle Capper

Quick Detail:

Driven Type: Electric

Voltage: 110/220/380V

Power: 3.8KW

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H): 3100*2300*2800mm

Weight: 3.5T

Certification: CE,ISO

Processing: bottle packing machine

Suitable Bottle: 0.25-2L

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Name: Water Bottle Filling Machine

Description:

1. The air conveyor is directly connected with bottle-in star wheel. The bottle is transferred by neck holding.
2. High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
3. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
4. Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
5. The high speed line is of ring type pressure bearing hydraulic cylinder.
6. High speed and large flow filling valve assures the high filling speed and exact fluid level.
7. Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
8. The bottle-out star wheel is of screw down shape. When bottle size is changed, there is no need to adjust the transferring chain's height..

Applications:

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

Monoblock 3-in-1 Automatic Bottled Water Machine CGF Series CE Stainless Steel Bottle Capper

Specifications:

Model	CGF12/12/6	CGF18/18/6	CGF24/24/8	CGF32/32/10	CGF40/40/12	CGF50/50/15	CGF60/60/15	CGF72/72/18	CGF80/80/22
Rinsing Head	12	18	24	32	40	50	60	72	80
Filling Head	12	18	24	32	40	50	60	72	80
Capping Head	6	6	8	10	12	15	15	18	22
Capacity (500ml)	3000BPH	8000BPH	12000BPH	15000BPH	18000BPH	21000BPH	24000BPH	27000BPH	30000BPH
Pressure of air source	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Air consumption	0.25M3/min	0.8M3/min	0.8M3/min	0.8M3/min	0.8M3/min	1M3/min	1M3/min	1.2M3/min	1.2M3/min
Pressure of rinse water	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa	0.2~0.25MPa
Consumption of rinsing water	1t/hour	1.2t/hour	1.2t/hour	2t/hour	2t/hour	3t/hour	4t/hour	5t/hour	5.5t/hour
Filling pressure	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa
Suitable bottle size	H:150-300mm	H:150-340mm; D:Φ50-110mm; can be customized
Power	2.5KW	3.5KW	4.5KW	5.6KW	6.3KW	7.5KW	11KW	15KW	19KW
Weight	2500KG	3000KG	4000KG	5000KG	6000KG	7500KG	8500KG	10000KG	12000KG
Packing Size (LWH)(mm)	2200×1800×2300	2300×2000×2300	3000×2200×2800	4000×2600×2800	4700×2950×2800	5100×4800×3000	6200×4950×3000	7000×5500×3000	7800×6400×300

Competitive Advantage:

1. Best price & best quality

2. Custom-made details

3. Delievery in time.

4. Life-time good service.

Download for more details:

2000-4000 Bottles per hour water filling plant.pdf

6000-8000 Water Bottling Production Line.pdf

12000-15000BPH Water Filling Production Line.pdf

18000-20000BPH Beverage filling machine.pdf
