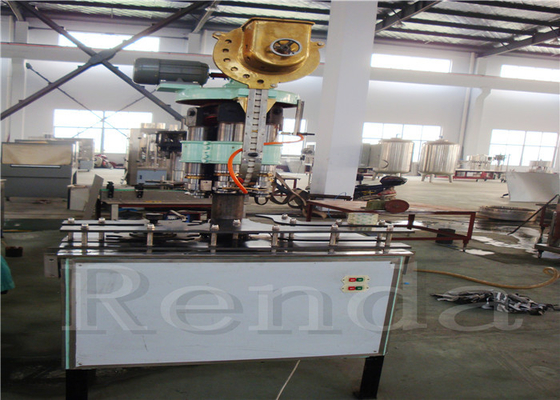

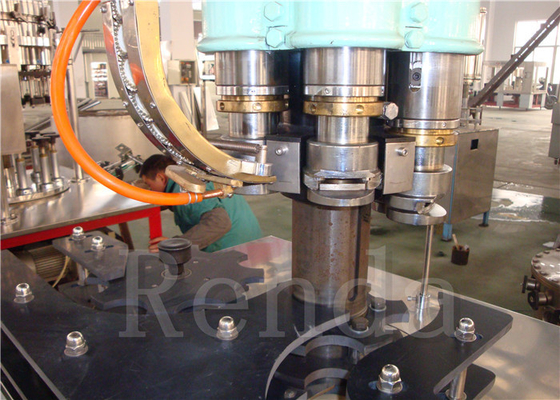

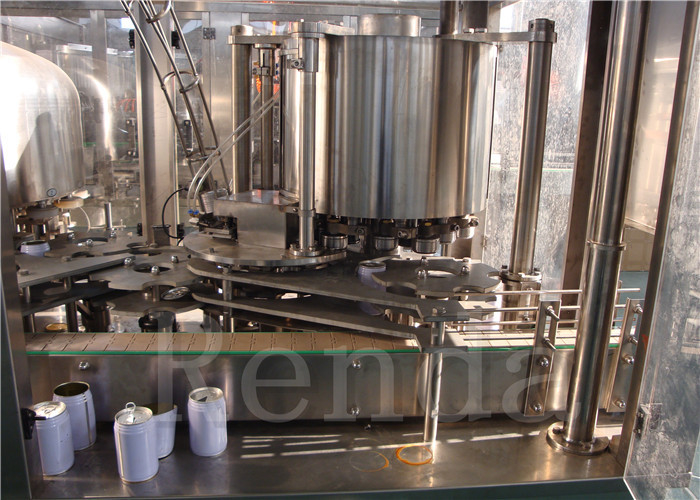

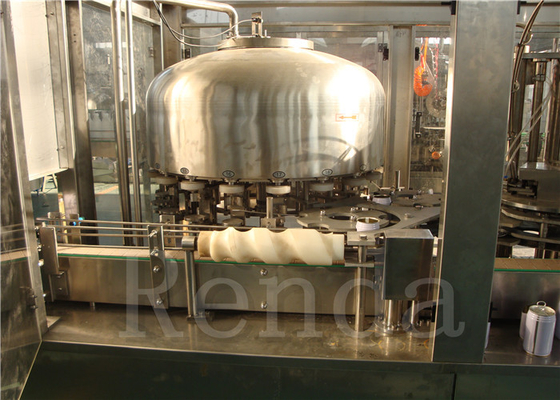

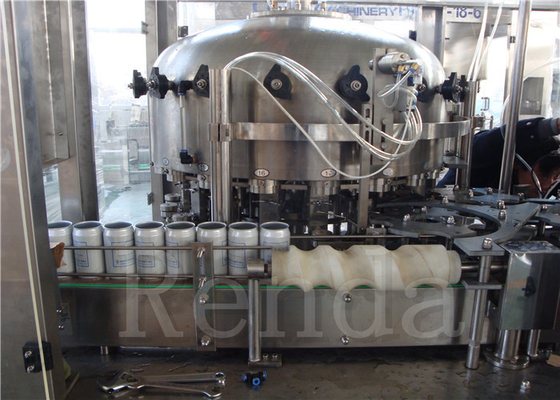

Carbonated Drinks Automatic Tin Cans Filling Machine Washing Filling Capping Equipment

Carbonated Drinks Automatic Tin Cans Filling Machine Washing Filling Capping Equipment

Quick details:

Driven Type: Electric

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Weight: 5T

Certification: CE,ISO

Processing: can packing machine

Suitable cans: 0.25-1L

Material: stainless steel

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Name:Barrel Filling Machine

Description:

It is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry. It is a pop canned Beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development Of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to Ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and Pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping Reliably, frequency conversion timing, less material loss. It can equip long-distance control system according to the Customers request. It is the preferred equipment for the medium beer and beverage plant.

Download for more details:

DCGF40-40-10 Washing Filling Capping 3-in-1 Machine.pdf

Parameters:

Capacity :                     10000cans/h(250ml)

Filling head:                  24

Capping head:             4

Power :                         5.5KW

Air consumption:          1.2m3/h(0.3Mpa)

Sterile air consumption:1.8m3/h(0.4Mpa)

Water consumption:      0.2m3/h

Dimension :                  3200×1600×2300mm
