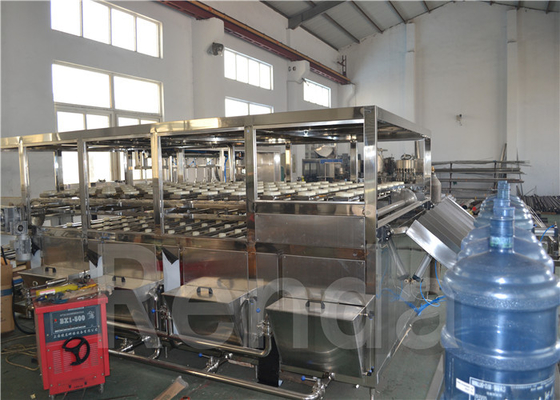

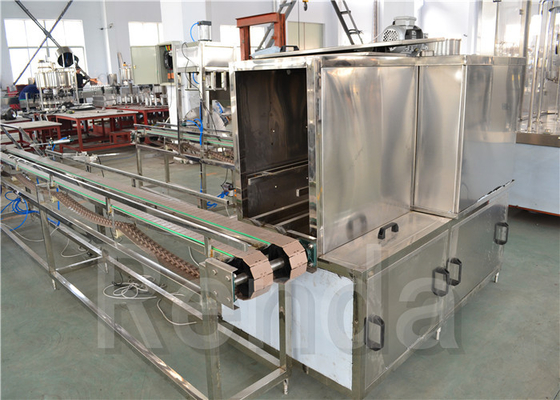

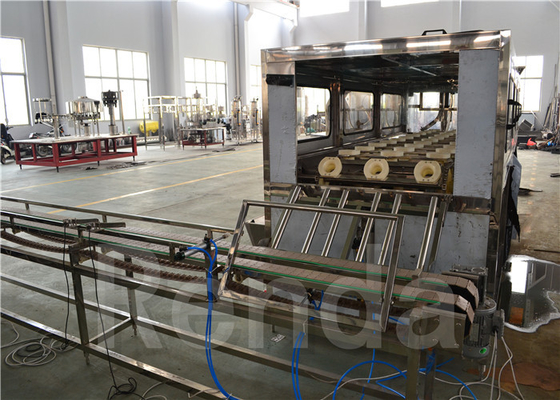

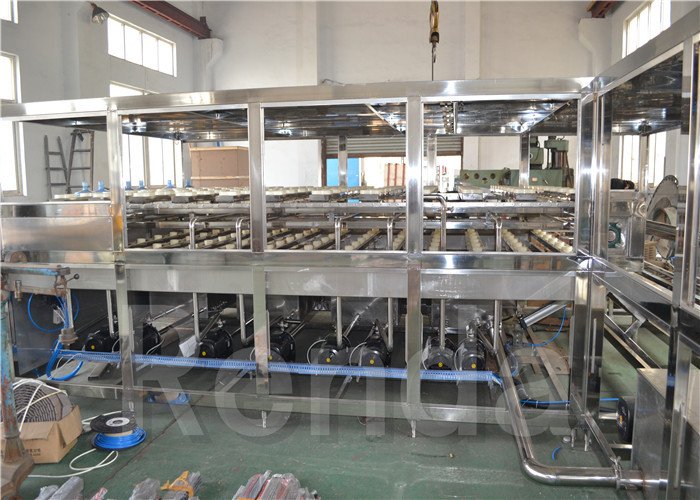

5 Gallon Mineral Water Barrel Filling Machine , Water Filler Equipment ISO CE

Large Image : 5 Gallon Mineral Water Barrel Filling Machine , Water Filler Equipment ISO CE Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	QGF-1200

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case
Delivery Time:	20 days
Payment Terms:	T/T, L/C
Supply Ability:	30 pcs/month

Contact Now

Detailed Product Description

Application:	Water	Automatic Grade:	Automatic\|automated
Capacity:	5 Gallon	Driven Type:	Electric
Material:	Stainless Steel SUS304	Power:	8.5KW
Processing:	Bottle Packing Machine	Voltage:	110V\|220V\|380V
High Light:	beverage filling machine , automatic bottle filling machine

5 Gallon Mineral Water Barrel Filling Machine , Water Filler Equipment ISO CE

Quick Detail:

Name: Barrel Filling Machine
Driven Type: Electric
Voltage: 110/220/380V
Power: 8.5KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 2560*2350*2750mm
Weight:9500kg
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle:5 gallon
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas

Description:

This 5 gallon filling machinery specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type. 5 gallon filling machinery integrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The 5 gallon filling machinery sealer can seal bottle caps automatically.
This 5 gallon filling machinery equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this 5 gallon filling machinery can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which 5 gallon filling machinery integrates mechanism,electricity and pneumatics technologies together.

Applications:

5 Gallon Mineral Water Barrel Filling Machine Filling Production Line ISO CE.

Specifications:

Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200	QGF-2000
Filling heads	1	2	3	4	8	12	16
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Capacity(B/n)	100-120	200-240	300-400	600	900	1200	2000
Gas pressure(mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6	0.6
Gas consumption (m³/min)	0.37	0.6	0.6	1.2	2.2	3	4.5
Motor power(Kw)	1.75	3.22	4.8	8.5	8.5	8.5	8.5
Rated voltage(V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Outline dimension(mm)	3790×650 ×1550	3550×800 ×1800	3550×1200 ×1800	3650×1500 ×1800	2200×1860 ×2700	2560×2350 ×2750	3100×2800 ×2750
Weight(kg)	800	2800	4000	5500	7500	9500	11800

Competitive Advantage:

1. Our 3-5 gallon barrel filling machine can be used for filling mineral water, pure water, distilled water, etc.

2. Machine main function including barrel rinsing, water filling, and capping for barrel, the capping structure adopt cylinder cap press, with cap return function, cap sorter can keep one hour cap consumption.

3. The main electrical element, pneumatic system will adopt international brand such as Siemens, Omron, Airtac, etc. All our brusher is specially designed, which can clean every corner of barrel.

4. With compact structure, advance technology, the whole machine will run efficiently and stably.

5 Gallon Mineral Water Barrel Filling Machine , Water Filler Equipment ISO CE

Download for more details:

300BPH 5 Gallon Water Filling and Packing System.pdf
