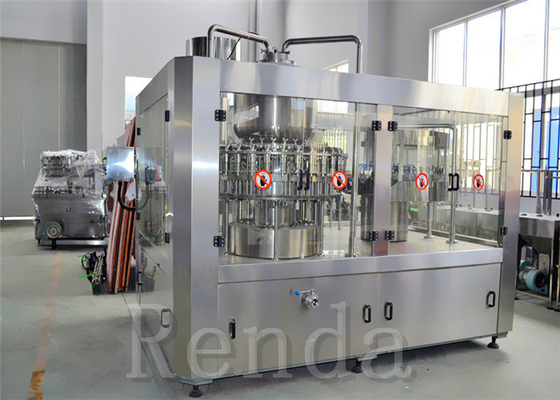

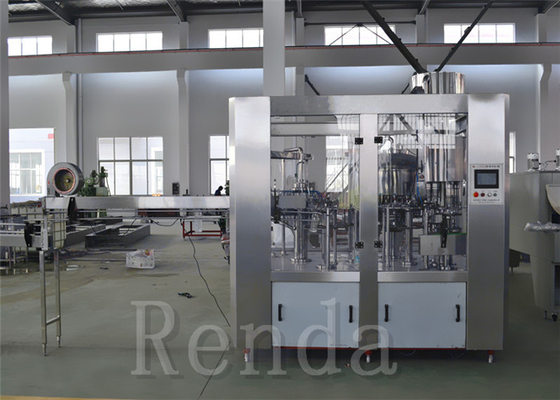

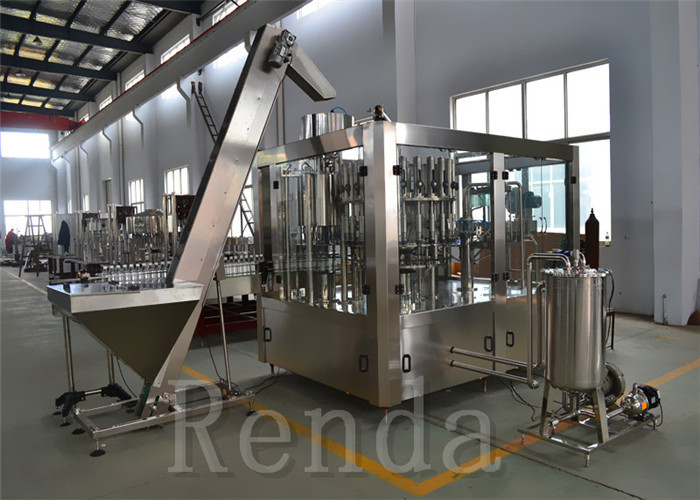

Water Bottle Filling Machine / Mineral Water PET Bottle Filling Machine Glass Bottle

Name: Water Bottle Filling Machine / Mineral Water PET Bottle Filling Machine Glass Bottle
Brand: Renda
SKU: CGF18-18-6

Large Image : Water Bottle Filling Machine / Mineral Water PET Bottle Filling Machine Glass Bottle Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	CE,ISO
Model Number:	CGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiabled
Packaging Details:	Wooden Case Packing
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	20sets/month

Contact Now

Detailed Product Description

Capacity:	6000-8000BPH	Processing Types:	Pure Water,Mineral Water,Beverage
Filling Vol:	330-2000ml	Voltage:	380v,220v
Power:	6.68kw	Material:	SUS.304 316
Production Name:	Water Bottle Filling Machine / Mineral Water Pet Bottle Filling Machine Glass Bottle	Certification:	CE,ISO
High Light:	beverage filling machine , water filling machine

Water Bottle Filling Machine / Mineral Water PET Bottle Filling Machine Glass Bottle

Quick Detail:

Driven Type: Electric

Voltage: 110/220/380V

Power: 6.68KW

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H): 2500*2000*2200mm

Weight: 3.5T

Certification: CE,ISO

Processing: bottle packing machine

Suitable Bottle: 0.33-2L

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Name:Water Bottle Filling Machine

1. All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

The whole machine is controlled by PLC with touch-screen as the human-machine interface.

2.The water filling machine was equipped with suspension type air conveyor

and frequency control of motor speed.

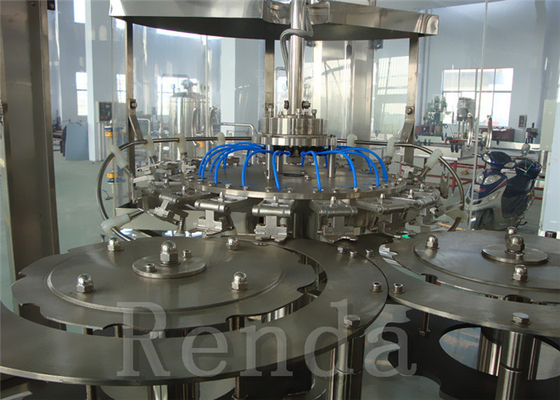

3.These series of machines integrate washing, filling and capping into one unit.

Rinsing: grip the bottle neck, rotate filling plate, inverse bottle;

There are two times of internal and external washing ,

the efficiency of bottle washing is high.

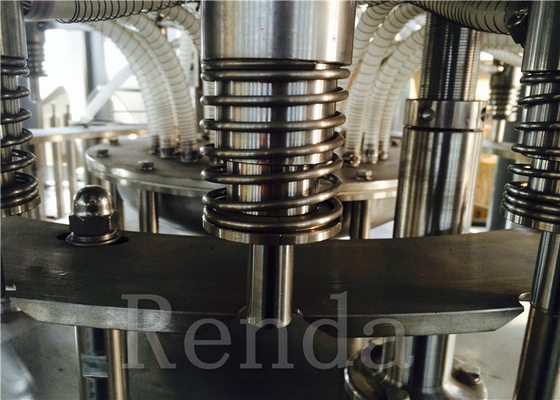

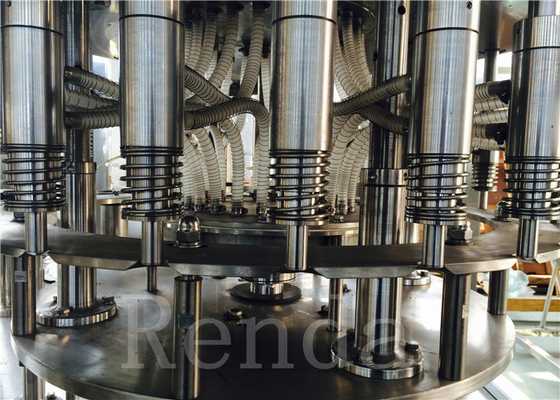

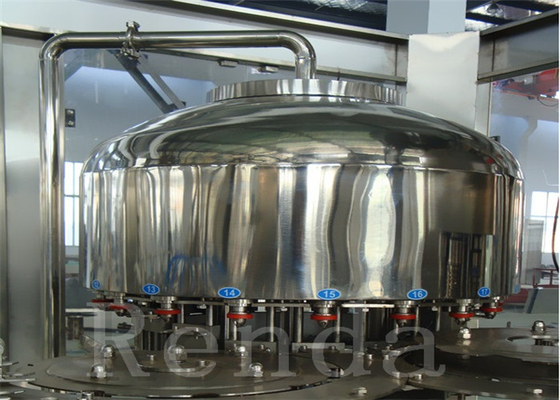

Filling: gravity filling with holding bottle neck;

the special backflow type of the filling valve can avoid leakage

after filling and also control liquid level accurately.

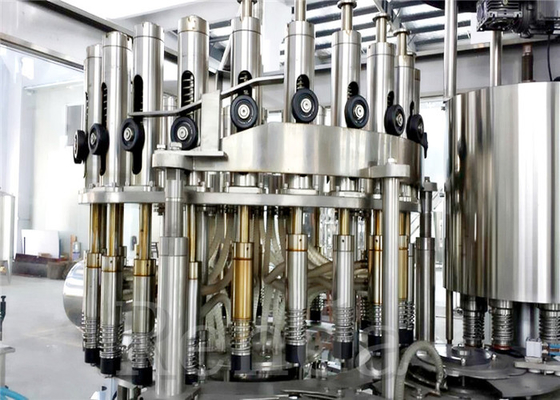

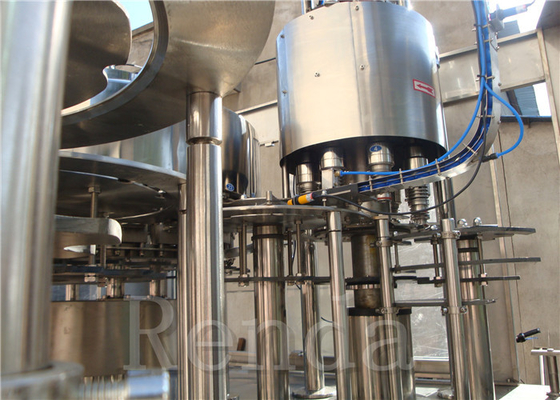

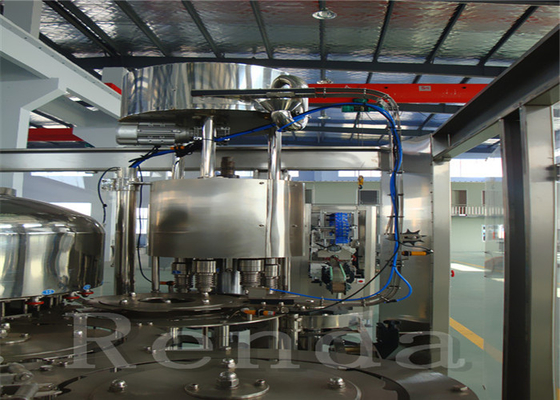

Capping: magnetic torque bottle holding type can minimize the cap damage rate

and make the capping performance the best.

4.This machine owns the reasonable, stable and safe design.

Under the condition that the bottle neck size is the same,

only the output star wheel needs to be changed

if bottles are different. It improves the efficiency a lot.

Description:

-for 330-2000ml bottle filling
-6000-8000 BPH
-no bottle no filling
-Easy operation and maintenance

Applications:

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

Specifications:

Water Bottle Filling Machine / Mineral Water Pet Bottle Filling Machine Glass Bottle

Model	CGF12124	CGF18186	CGF24248	CGF323210	CGF404010	CGF505012
Number of washing, filling and capping heads	12-12-4	18-18-6	24-24-8	32-32-10	40-40-10	50-50-12
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900
Weight (kg)	2500	3500	4500	6500	8500	9800
