Stainless Steel Beverage Juice Filling Machine Juice Filling Production Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Fruit Juice|beverage | Automatic Grade: | Automatic|automated |
|---|---|---|---|
| Capacity: | 15000BPH|2000-4000BPH | Driven Type: | Electric |
| Power: | 3.2KW | Processing: | Bottle Packing Machine |
| Voltage: | 110V|220V|380V | Material: | SUS 304 316 |
| High Light: | beverage filling machine,automatic bottle filling machine |
||

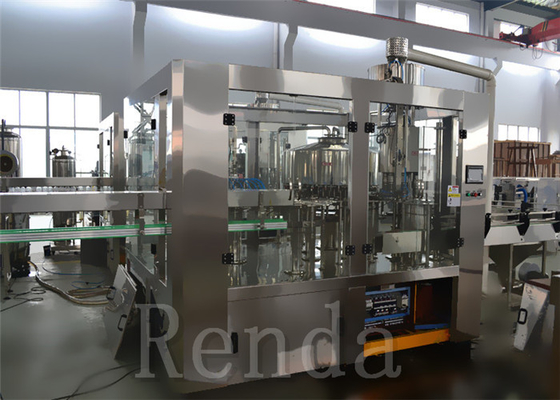

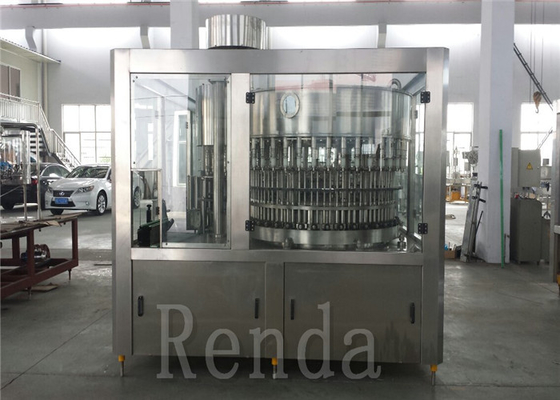

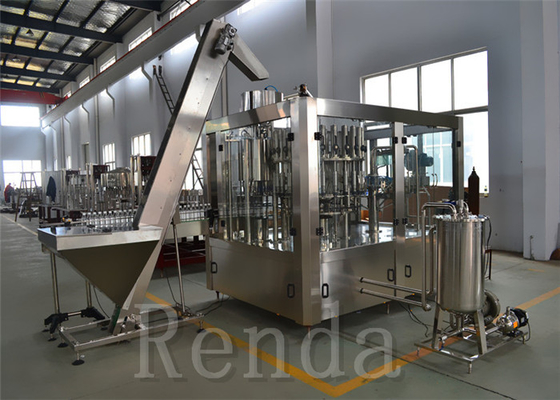

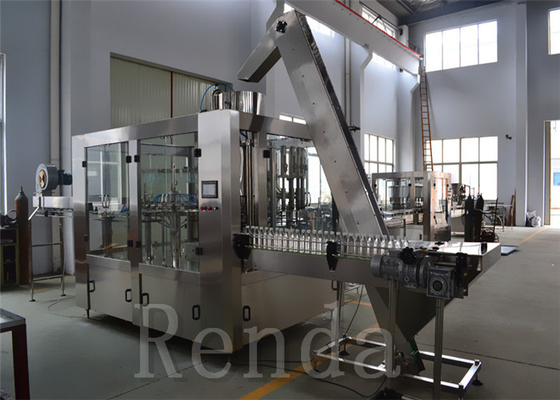

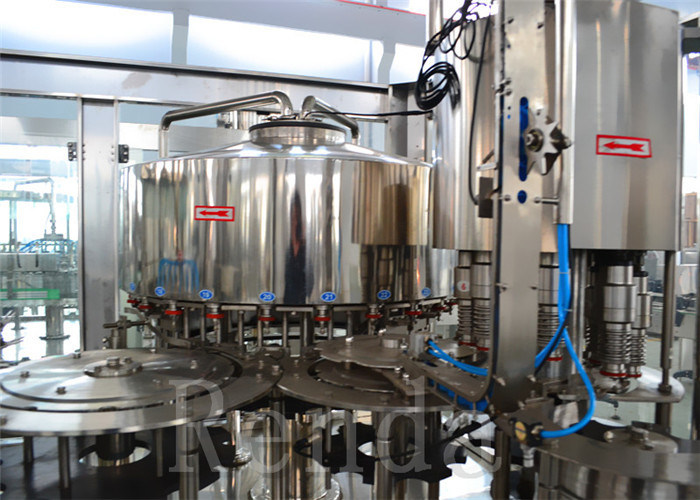

Stainless Steel Beverage Juice Filling Machine Juice Filling Production Line
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Power: 3.2KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 1900*1500*2500mm
Weight:7T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overse
Name:Juice Filling Machine
Description:
Stainless Steel Beverage Juice Filling Machine , Juice Filling Production Line
Orange Juicer Filling Machine-----Features

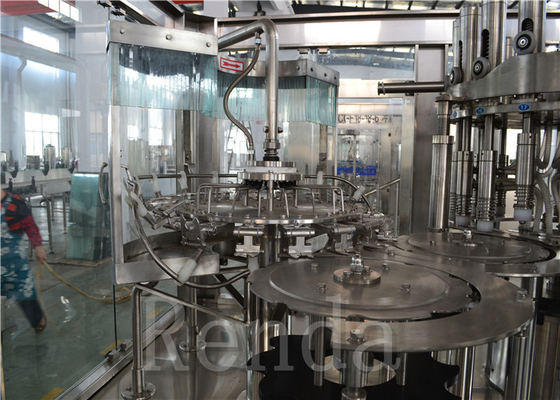

1. Air Conveyor connects with bottle-in star-wheels. Bottle neck holding transferred.

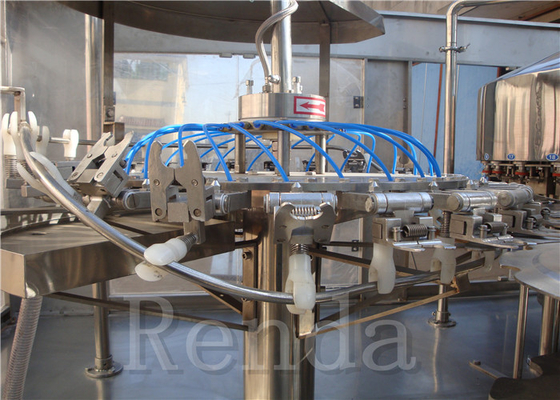

2. Clamp transferring technology varied bottle types.
3. With little abrasion. Stable Transferring. Easy to change bottles.
4. With ring type pressure bearing hydraulic cylinder.

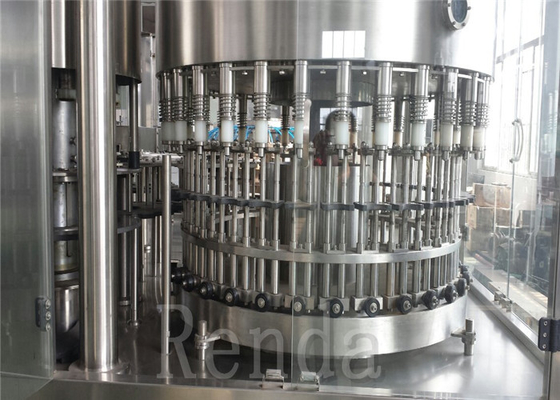

5 With high filling speed and exact liquid level.
6. Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.
7. The bottle-out star-wheel is of screw-down shape. No need to adjust transferring chain's height to different bottles.
8. Easy to operate and maintain.
9. PLC and transducers and the main electric parts are of world famous brands, such
as OMRON, MITSUBISHI etc.
Applications:
Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000BPH—4000BPH
Stainless Steel Beverage Juice Bottling Machine,Juice Making Production Line
Specifications:
| Model | CGFR | CGFR | CGFR | CGFR | CGFR | CGFR |
| Rinsing Head No | 8 | 16 | 18 | 24 | 32 | 40 |
| Filling Head No | 8 | 12 | 18 | 24 | 32 | 40 |
| Capping Head No | 3 | 6 | 6 | 8 | 10 | 10 |
| Capacity (500ml) | 2000BPH | 4000BPH | 7000-8000BPH | 10000-12000BPH | 12000-15000BPH | 15000-18000BPH |
| Overall Size | 1900*1420* | 2200*1600* | 2450*1900* | 2750*2180* | 4000*2300* | 4550*2650* |
| Weight | 1.5T | 2.2T | 3.0T | 4.0T | 8.0T | 12.0T |
| Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw | 8.3Kw |
| Rated Voltage | 380V | 380V | 380V | 380V | 380V | 380V |
Competitive Advantage:
--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling

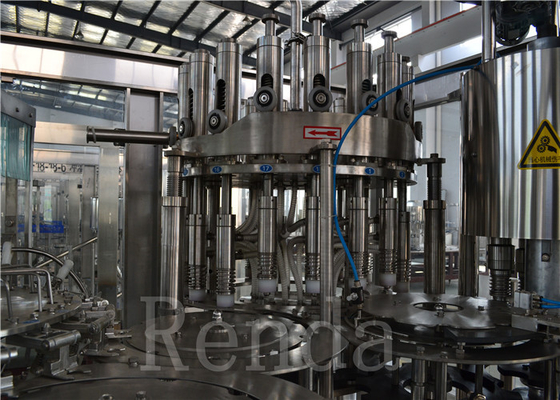

--Capping and clamping technology
Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
