CE|ISO Automatic Glass Bottle Beer Filling Machine Stainless Steel Beverage Can Filling
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Beer/carbonated Beer | Driven Type: | Electric |
|---|---|---|---|
| Material: | Stainless Steel SUS304 | Suitable Bottle: | Glass Bottle |
| Voltage: | 110V|220V|380V | Capacity: | 1000BPH-10000BPH |
| Name: | Beer Filling Machine | ||
| High Light: | beer bottle filler machine,wine bottle filler machine |
||
CE|ISO Automatic Glass Bottle Beer Filling Machine Stainless Steel Beverage Can Filling
Quick Detail:
- Driven Type: Electric
- Voltage: 110/220/380V
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Certification: CE,ISO
- Material: stainless steel
- Processing: bottle packing machine
- Suitable Bottle:Glass Bottle/cans
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: Beer Filling Machine
Description:

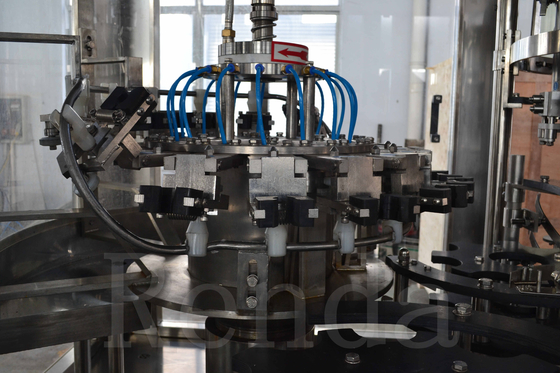

1. Filling valve adopts high-accuracy mechanical filling valve, with mechanism no bottle, no vacuum.
2. Outside mounted mechanical filling valves. There is no spring or sealing parts inside the valve.
3. Twice vacuum, with high pressure foam stimulation device.
4. Adopt open type gear and gearbox combination transmission. Adopt variable frequency stepless timing with large adjustment scope.
5. The transmission system equips automatic lubrication with grease, high-efficiency, little noise and long-life.
6. While filling gas or beer, if bottle is broken due to quality problem, the filling valve will close automatically. It also equips automatic broken bottle washing device.

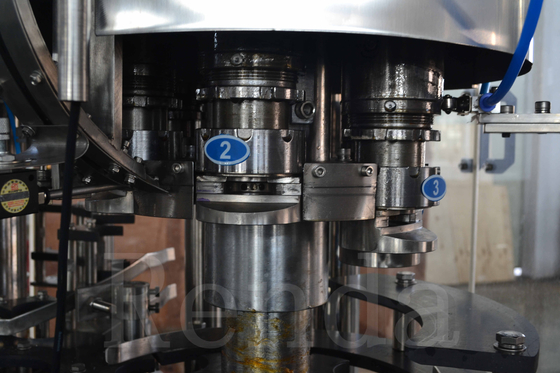

7. Equip fully stainless steel magnetic cap hopper. Cap sorting, discharge and feeing are all conveyed by magnetic force, and the cap is not easy to become distorted. Mass and smooth cap discharge. Reliable capping with automatic unloading function to lower the bottle loss rate.
8. Centering guide adopts double-leader type with pre-covering function. The bottle infeed and outfeed is table and reliable.
9. The carousel and capping head elevation is electrical to adapt to various bottles with different height.
10. The product level in the carousel is controlled by electric probe, with stable level and filling.
Applications:
The CGFD series filling machine is specialized in beer filling.
Specifications:
|
Model |
CGFD 8-8-3 |
CGFD 12-12-6 |
CGFD 18-18-6 |
CGFD 24-24-8 |
CGFD 32-32-10 |
CGFD 40-40-10 |
|
Rinsing Head No |
8 |
12 |
18 |
24 |
32 |
40 |
|
Filling Head No |
8 |
12 |
18 |
24 |
32 |
40 |
|
Capping Head No |
3 |
6 |
6 |
8 |
10 |
12/10 |
|
RatedCapacity |
1200-1500BPH |
2500BPH |
3500-4000BPH |
7000-7500BPH |
8000-10000BPH |
10000-12000BPH |
|
Overall Size |
2000*1600* 2300mm |
2200*1600* 2300mm |
2450*1900* 2300mm |
2750*1180* 2400mm |
4000*2300* 2300mm |
4550*2650* 2300mm |
|
Weight |
2T |
2.2T |
3.0T |
4.0T |
8.0T |
12.0T |
|
Power(KW) |
3KW |
3.5kw |
4.0kw |
4.8kw |
7.6kw |
8.3Kw |
|
Rated Voltage |
380V |
380V |
380V |
380V |
380V |
|
