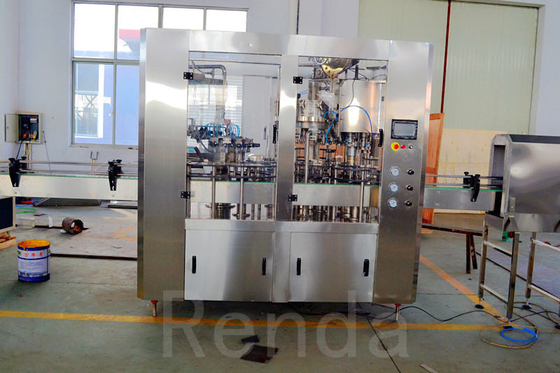

1000BPH Glass/PET Bottle Beer Filling Machine 3 In 1 Beer Filler 500ml Stainless Steel CE ISO

1000BPH Glass/PET Bottle Beer Filling Machine 3 In 1 Beer Filler 500ml Stainless Steel CE ISO

Quick Detail:

• Name: RO Water Treatment Systems
• Driven Type: Electric
• Voltage: 110/220/380V
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Renda
• Certification: CE,ISO
• Material: stainless steel
• Processing: bottle packing machine
• Suitable Bottle:Glass Bottle
•  Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery overseas

Description:

Machine Features:

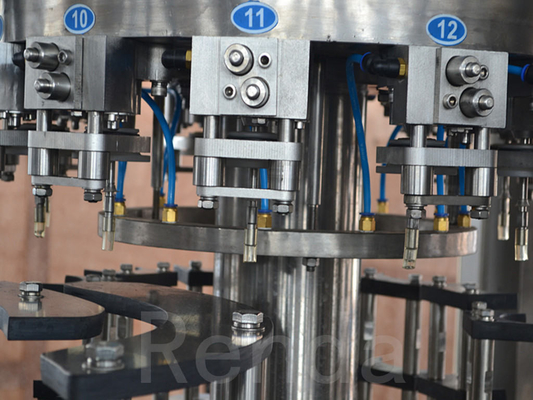

1. With high precision me chanical filling valves,our beer filling machine stops vacuumizing when there are no bottles.

2. The beer filling machine is equipped with external mechanical valve,inside which there is no spring or sealing element.

3. With high pressure frothing device,it is capable of double vacuum-pumping.

4. The beer filling machine makes use of combined transmission by open gear and gearbox,and adopts frequency conversion stepless speed control,extending the speed modulating scope.

5. The machine has an antomatic lubricating device so that the lubrication points can be automatically lubricated regularly in time.Also,our beer filling machine has high transmission efficiency,low noise and long life.

6. In case of the blowout due to poor quality of the bottles during gas or beer filling,the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.

7. With a full stainless steel magnetic hopper,the unscrambling, feeding and discharging of crown caps are all performed by magnetic force.The caps are free from deforming,and can flow smoothly in large quantities during transmission.

8. The capper has the function of automatic deloading,which helps lower the bottle breakage.

9. For the centering guide of our beer filling machine,we adopt double guide-bar mechanism,with the function of pre-covering which allows stable and reliable bottle transferring.

10. The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.

11. The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.

Applications:

The CGFD series filling machine is specialized in beer filling.

Specifications:

1000BPH Glass/PET Bottle Beer Filling Machine 3 In 1 Beer Filler 500ml Stainless Steel CE ISO

Download for details:

DCGF18-18-6 Washing filling capping machine.pdf

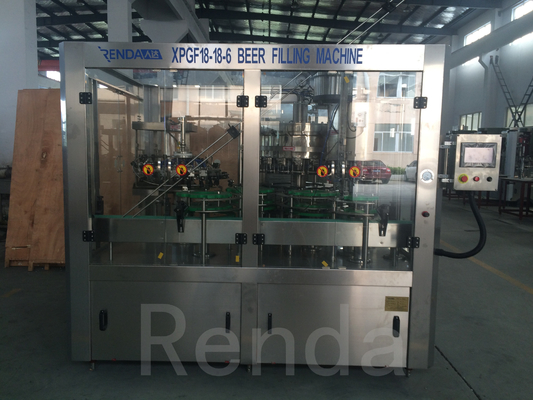

DCGF12-12-6 Beer Filling Machine.pdf

Manufacturing more machines:

Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.

1000BPH Glass/PET Bottle Beer Filling Machine 3 In 1 Beer Filler 500ml Stainless Steel CE ISO

Wooden case packing:
