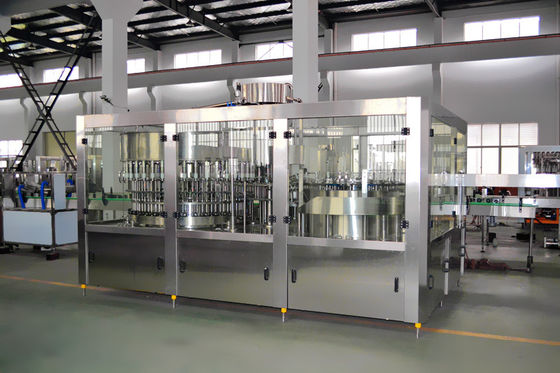

RCGF Mode SUS304 Juice Pulp Juice Filling Machine With Rinser / Filler / Capper

RCGF Mode SUS304 Juice Pulp Juice Filling Machine With Rinser / Filler / Capper


Quick Detail:


1. Driven Type: Electric
2. Voltage: 110/220/380V
3. Place of Origin: Jiangsu, China (Mainland)
4. Brand Name: Renda
5. Certification: CE,ISO
6. Processing: bottle packing machine
7. Suitable Bottle: 0.25-2L
8. Material: stainless steel
9. Warranty: 1 year
10. After-sales Service Provided: Engineers available to service machinery overse
11. Name:Juice Filling Machine


Description:

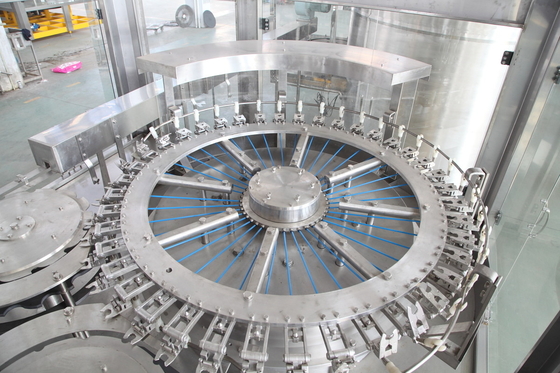

1.Hot Filling Machine:Bottles are delivered by suspension type clip bottle mouth conveying structure (except bottle out star wheel), bottle in adopts air conveying device, in the bottle washing station with flexible bottleneck clamp clamping, so that machine is more stable during operation , reliable, high-speed operation to adapt to the requirements of the machine. Simply adjust the conveyor of different bottle height and a small amount of change attachment, so for bottle faster, and effort.
2. Hot Filling Machine: Dimidiate-type washing hand tongs, empty bottles with the guide rail automatically turn 180 º on to wash in and out of the bottles.

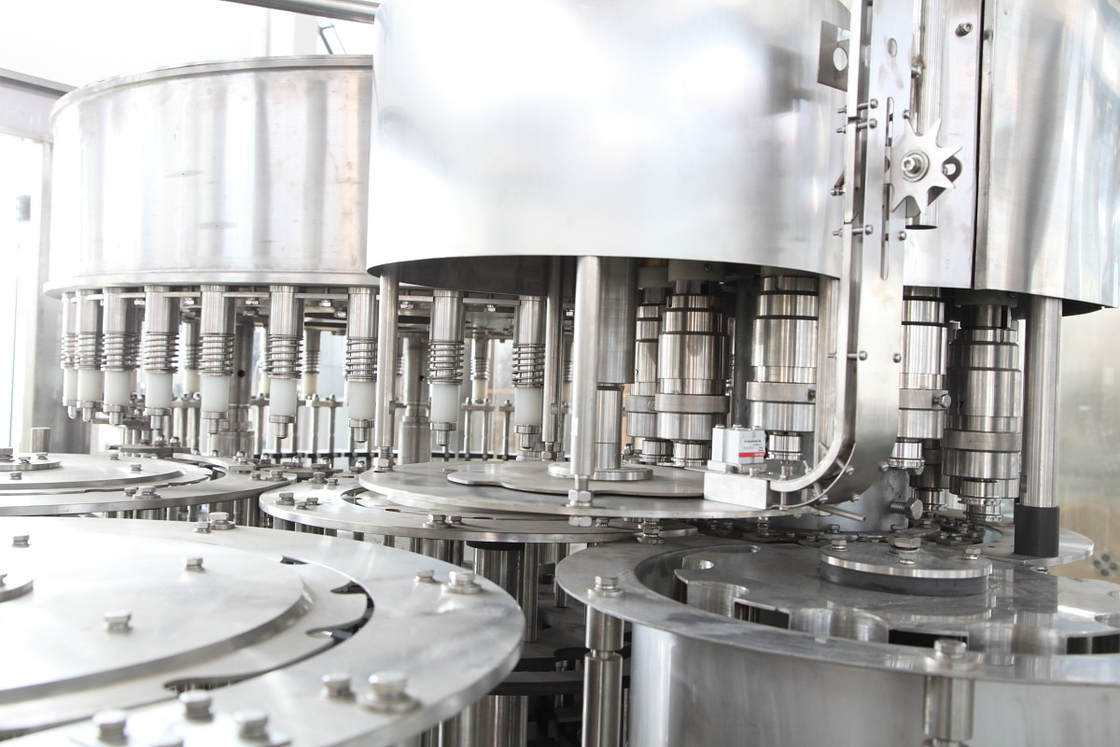

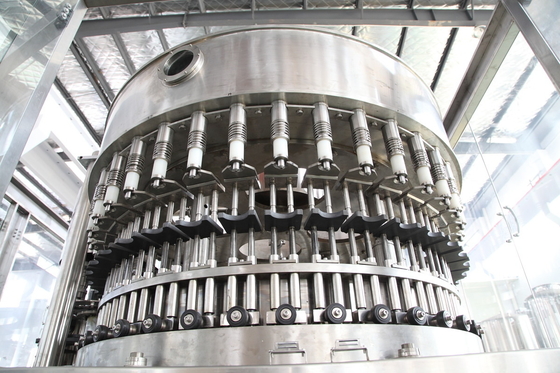

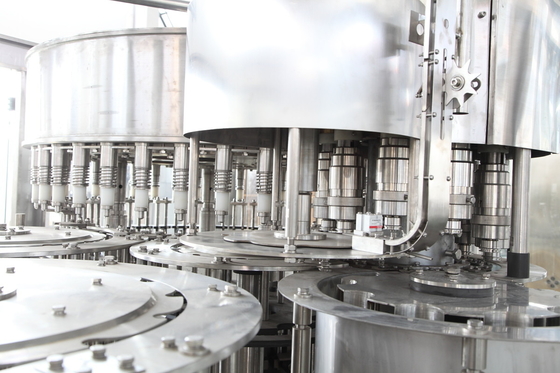

3. Filling machine uses normal pressure filling technology is filling fast, reliable, non-drip, level accuracy. The machine has no bottle no filling characteristics.

4. The Filling  machine uses magnetic torque cover, to achieve grasping cover, screw caps, screw cap stepless torque, constant torque of the screw cap, without damage cover, seal tight and reliable.
5. Hot Filling Machine:Cap arranging device ensure the cover arrange speed, no damage to the cover surface. Comprehensive testing device can guarantee no bottle no cover, lack of cover down, full cover without cover conveying of functions.

6. The Filling machine adopts advanced man-machine interface operation, PLC control, variable frequency stepless speed regulation, such as automatic control technology, so that the whole of the high degree of automation, more reliable performance, production capacity can be adjusted continuously.
7. The Hot Filling Machine main electrical, pneumatic components are imported components.


Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000-20000BPH


Specifications:




Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology

RCGF Mode SUS304 Juice Pulp Juice Filling Machine With Rinser / Filler / Capper

Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
