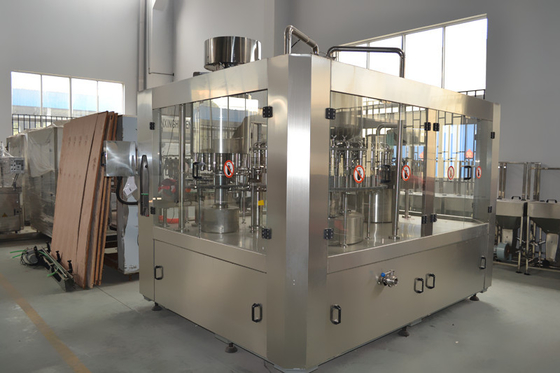

9KW Juice Filling Machine Drinks Bottle Washing Filling Capping 3-in-1 Machine 18000BPH

9KW Juice Filling Machine Drinks Bottle Washing Filling Capping 3-in-1 Machine 18000BPH


Quick Detail:


1. Driven Type: Electric
2. Voltage: 110/220/380V
3. Power: 9 KW
4. Place of Origin: Jiangsu, China (Mainland)
5. Brand Name: Renda
6. Dimension(L*W*H): 4300× 2930× 2750mm
7. Weight:7.8T
8. Certification: CE,ISO
9. Processing: bottle packing machine
10. Suitable Bottle: 0.25-2L
11. Material: stainless steel
12. Warranty: 1 year
13. After-sales Service Provided: Engineers available to service machinery overse
14. Name:Juice Filling Machine



Description:

Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water.

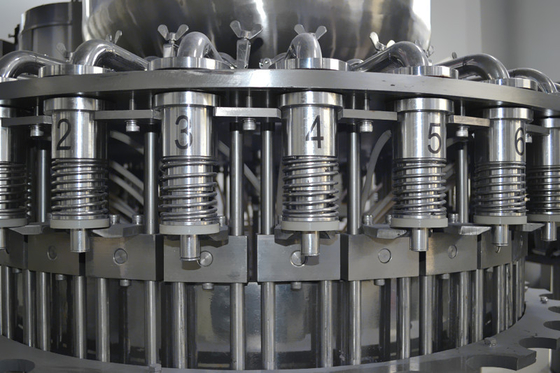

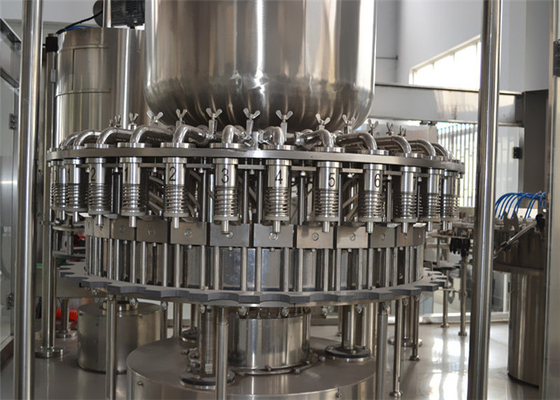

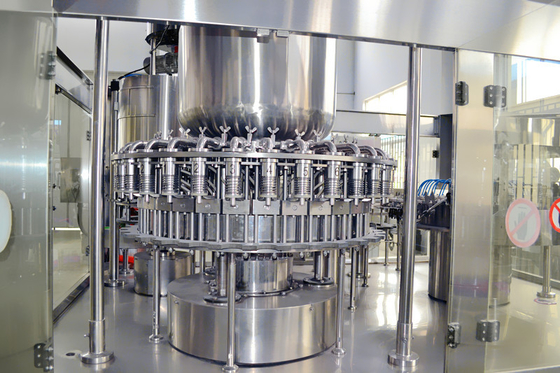

Filler
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.
Capper
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.


Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 15000-18000BPH


Specifications:



• Working Position: Rinsing 40, filling 40, capping 10
• Rated Capacity: 15, 000BPH (500ml)
• Bottle Size: Diameter 50-96mm; Height 165-310mm
• Air Supply Pressure: 0.7MPa
• Air Consumption: 0.8M3/min
• Rinsing Water Pressure: 0.2-0.25 MPa
• Consumption of Rinsing Water: 3T/hr
• Way of Filling: Gravity Filling
• Main Motor Power: 5.5KW
• Installed Power: 9KW
• Dimension: 4300× 2930× 2750 (L× W× H)
• Weight: 7800Kg

Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology

9KW Juice Filling Machine Drinks Bottle Washing Filling Capping 3-in-1 Machine 18000BPH

Download for more details:
DCGF40-40-10 Washing Filling Capping 3-in-1 Machine.pdf
