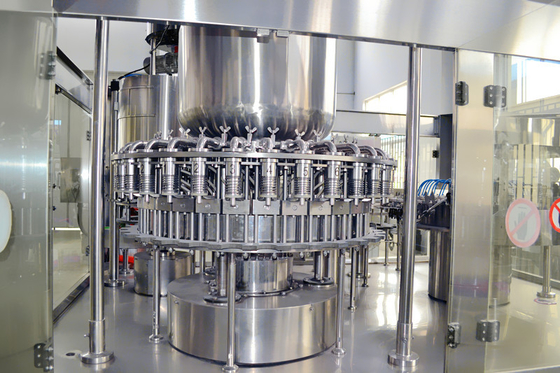

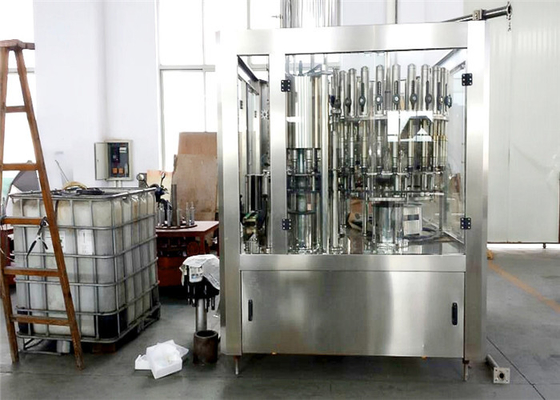

15000BPH Milk / Tea / Juice Filling Machine Equipment PET Bottle Automatic

15000BPH Milk / Tea / Juice Filling Machine Equipment PET Bottle Automatic

 Quick Detail:

• Volume of PET bottle : 0.25L-1.5L
• Diameter of bottle: 50-110mm
• Height of bottle: 170-320mm
• Cap diameter: plastic screw type cap diameter from 28mm
• Filling temperature: NORMAL TEMPERATURE
• Filling pressure: ≤0.15Mpa
• Filling precision: ±2-3%
• Pressure of washing: 0.2Mpa
• Filling temperature:  5-95℃
• Washing consuming clear water: 1500kg/h
• Gas consumption: 0.4m³ /min
• Power of main motor: 7.8KW
• Dimension: 3700×3000×2350mm
• Weight: 7000kg
• Name:Juice Filling Machine

Description:

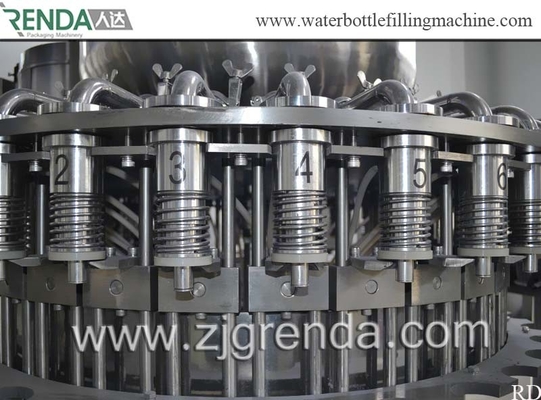

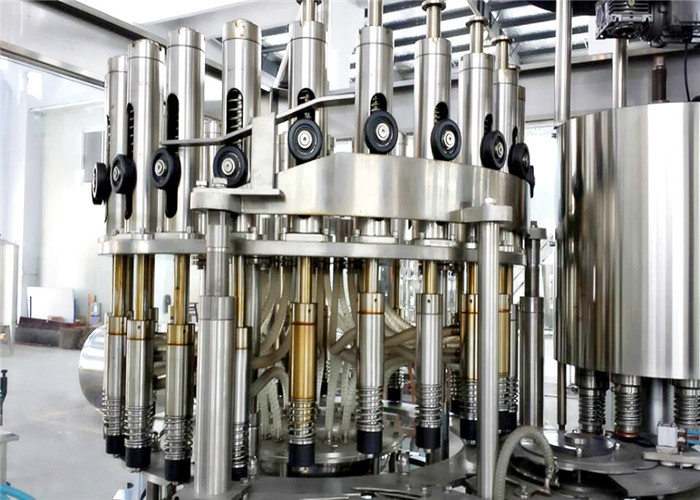

1,The all machine applies bottle handling technical and the filling valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high speed. The bottle handling technical also make the different bottle changing easily without changing too many accessories.

2, This machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.

3, The advanced a little of pressure filling principle was applied. Filling is quick, and stable. Not contacting with the liquid avoids second pollution and oxidation.

4, This machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing. The sealing cap force can be adjusted.

.5, Independent electricity box makes sure every electrical appliance works normally.


Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 12000BPH—15000BPH


Specifications:


Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology

15000BPH Milk / Tea / Juice Filling Machine Equipment PET Bottle Automatic

Download for more details:

RCGF32-32-10 Juice Washing Filling Capping Machine.pdf
