380V Stainless Steel Beverage Juice Filling Machine Packaging Machine CE / ISO 3.2KW
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Fruit Juice|beverage | Automatic Grade: | Automatic|automated |
|---|---|---|---|
| Capacity: | 15000BPH|2000-4000BPH | Driven Type: | Electric |
| Material: | Stainless Steel | Power: | 3.2KW |
| Product Name: | 380V Stainless Steel Beverage Juice Filling And Packaging Machine CE / ISO 3.2KW | Voltage: | 110V|220V|380V |
| High Light: | beverage filling machine,automatic bottle filling machine |
||
380V Stainless Steel Beverage Juice Filling Machine Packaging Machine CE / ISO 3.2KW
Quick Detail:
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 3.2KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 1900*1500*2500mm
- Weight:7T
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle: 0.25-2L
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overse
- Name:Juice Filling Machine
Description:

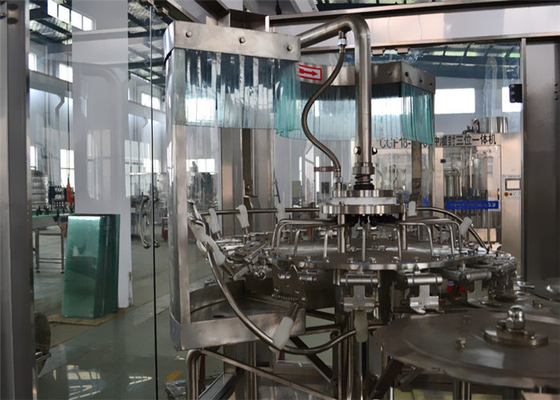

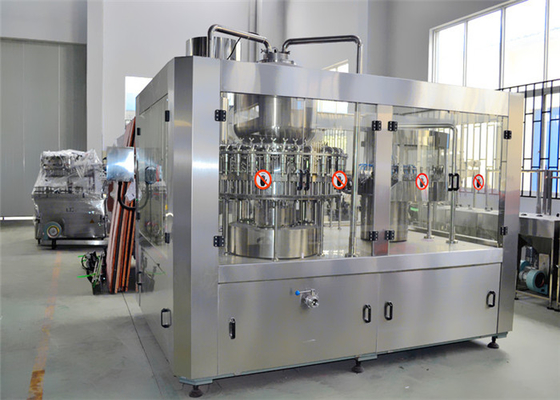

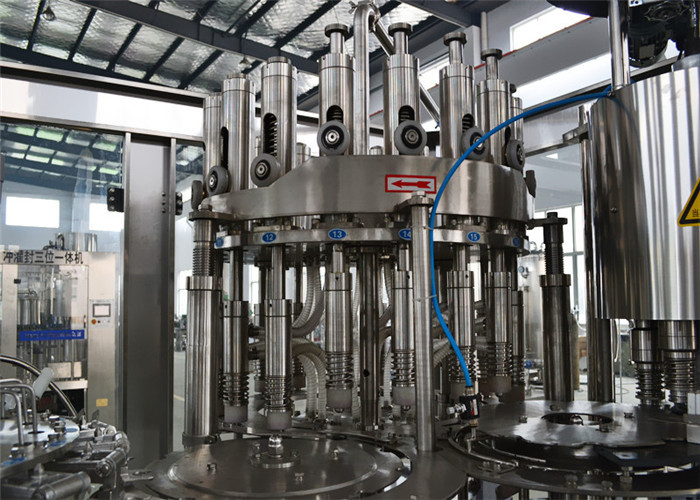

- The main equipment for hot bottling machine is fully automatic washing, bottling and capping 3-in-1 machine, the assistant equipments mainly include back-flow can, bottle feeding flue and bottle discharging chain, additionally, such equipments as manual bottle feeding platform (or bottle arranging machine ), automatic cap feeding machine (or cap disinfecting system ), bottle sterilizing chain, buffering platform, cool tunnel, air drying device, lamp inspecting case, code spraying machine, labelling machine are installed according to client’s demands.
- The equipment has advanced technology with bottle clamping, bottle shortage, cap shortage and overload alarm device with reliable performance, scientific procedures. The food sanitation meets the state foods sanitation standard, therefore, it is the ideal hot bottling equipment for various soft beverage manufacturers with automatic production and simple operation.
Applications:
Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000BPH—4000BPH
Specifications:
Main Technical Specifications | |
Model | RCGF12-12-6 |
Production Capacity (600ml)(b/h) | 2000-4000 |
Way of filling | Hot filling |
Filling precision | ±5mm |
Feedback consumption | ≤8% |
Polyester bottle standard(mm) | Bottle Diameterƒ50-ƒ92;Height:150-320 |
Suitable cap shape | Plastic cap |
Water pressure of washing bottle(Mpa) | 0.2-0.25 |
Water consumption for water bottle(kg/h) | 800 |
Gas source pressure (M Pa) | 0.4 |
Total power(Kw) | 3.2 |
Total Weight(Kg) | 2000 |
Dimension(L*W*Hmm) | 1900*1500*2500 |
Competitive Advantage:
--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology
380V Stainless Steel Beverage Juice Filling Machine Packaging Machine CE / ISO 3.2KW
Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
