Customized SUS304 Automatic Beverage Water Mango Pineapple Juice Filling Machine 220V/380V/110V Liquid Processing Line

Customized SUS304 Automatic Beverage Water Mango Pineapple Juice Filling Machine 220V/380V/110V Liquid Processing Line

Quick Detail:

• Volume of PET bottle : 0.25L-1.5L
• Diameter of bottle: 50-110mm
• Height of bottle: 170-320mm
• Cap diameter: plastic screw type cap diameter from 28mm
• Filling temperature: NORMAL TEMPERATURE
• Filling pressure: ≤0.15Mpa
• Filling precision: ±2-3%
• Pressure of washing: 0.2Mpa
• Filling temperature: 5-95℃
• Washing consuming clear water: 1500kg/h
• Gas consumption: 0.4m³ /min
• Power of main motor: 7.8KW
• Dimension: 3700×3000×2350mm
• Weight: 7000kg
• Name:Juice Filling Machine

Description:


1,The all machine applies bottle handling technical and the filling valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high speed. The bottle handling technical also make the different bottle changing easily without changing too many accessories.

2, This machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.

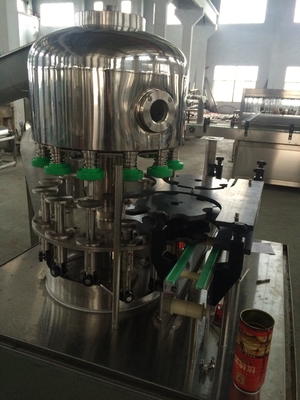

3, The advanced a little of pressure filling principle was applied. Filling is quick, and stable. Not contacting with the liquid avoids second pollution and oxidation.

4, This machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing. The sealing cap force can be adjusted.

.5, Independent electricity box makes sure every electrical appliance works normally.

Working Processing:

Pineapple→Topping table→Rollers brusher→Bubble washer

                                                                             ↓

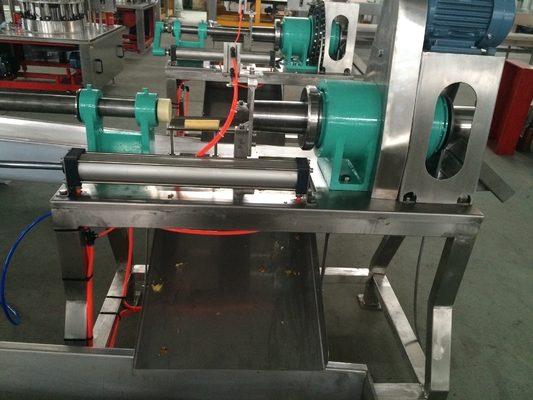

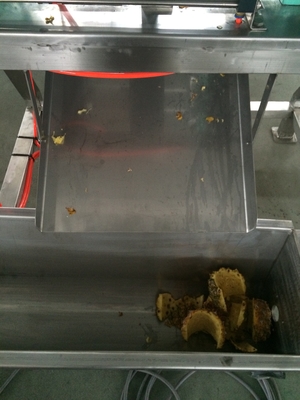

 slice filling machine   ←   slicing machine  ←Peeling&decoring

                                                                             ↓

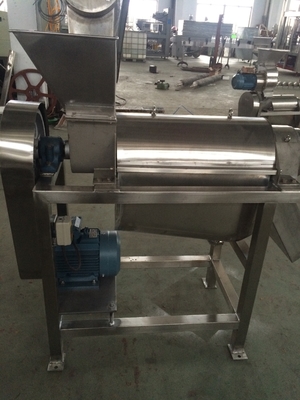

                                     Juice filling machine ←Screw extractor

Output:

• Pineapple in syrup: 4,5 t/day of sliced Pineapple;

Using 0,84 kg cans, the quantity of drained fruit in each can is 0,5 kg, which means 9.000 cans/day. That is 1.125 cans/h, or 18/19 cans/min.

(using 1,0 kg cans, the drained fruit is 0,6 kg, therefore 7.500 cans/day)

• Pineapple Juice (100%): approx. 800 lt/day.

Using 255 gr cans, there would be 3.300 cans/day (produced in 2 hours). This means 1.650 cans/h, or 27/28 cans/min.

• Pineapple Juice (not pure): depending from the dilution of the pure juice.

Customized Sus304 Automatic Beverage Water Mango Pineapple Juice Filling Machine 220V/380V/110V Liquid Processing Line

Download for more details:

Juice can washing filling capping machine.pdf
