Automatic Water Bottle Filling Machine Liquid Bottle Filling Machines 25000BPH
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 8000BPH|22000-24000BPH |
|---|---|---|---|
| Processing: | Bottle Filling And Packing Machine | Product Name: | Automatic Water Bottle Filling Machine Liquid Bottle Filling Machines 25000BPH |
| Voltage: | 110V|220V|380V | Material: | Stainless Steel |
| Power: | 7.5KW | ||
| High Light: | automatic bottle filling machine,water filling machine |
||
Automatic Water Bottle Filling Machine Liquid Bottle Filling Machines 25000BPH
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Power: 7.5KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 4800×3600×2600mm
Weight: 8.5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Name:Water Bottle Filling Machine
Description:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

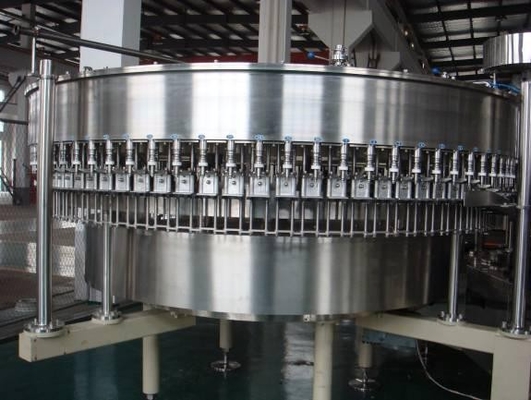

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
Automatic Water Bottle Filling Machine Liquid Bottle Filling Machines 25000BPH
Specifications:
|
Main technological Data |
|
|
Model |
CGF50-50-12 |
|
Production Capacity (500ml)(b/h) |
22000-24000 |
|
Way of filling |
micro-negative pressure filling |
|
Filling percision |
±5mm |
|
Feedback consumption |
≤5% |
|
Polyester bottle standdard(mm) |
Bottle Dimaeterƒ55-ƒ110;Height:186-320 |
|
Suitable cap shape |
Plastic cap |
|
Water pressure of washing bottle(Mpa) |
0.2-0.25 |
|
Water consumption for water bottle(kg/h) |
4500 |
|
Gas source pressure (MPa) |
0.7 |
|
Total power(Kw) |
7.5 |
|
Total Weight(Kg) |
8500 |
|
Dimension (L*W*Hmm) |
4800×3600×2600 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download for more details:
18000-20000BPH Beverage filling machine.pdf
Automatic Water Bottle Filling Machine Liquid Bottle Filling Machines 25000BPH
