Washing Filling Capping Small Scale Beverage Water Bottle Filling Machine 2000BPH 8.5KW
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 18000-20000BPH |
|---|---|---|---|
| Processing: | Bottle Filling And Packing Machine | Product Name: | Washing Filling Capping Small Scale Beverage Water Bottle Filling Machine 2000BPH 8.5KW |
| Voltage: | 110V|220V|380V | Material: | Stainless Steel |
| Power: | 8.5KW | ||
| High Light: | beverage filling machine,water filling machine |
||

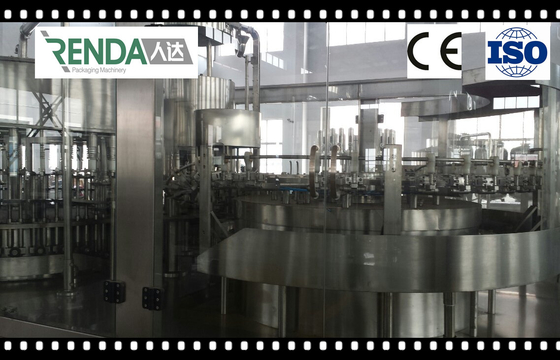

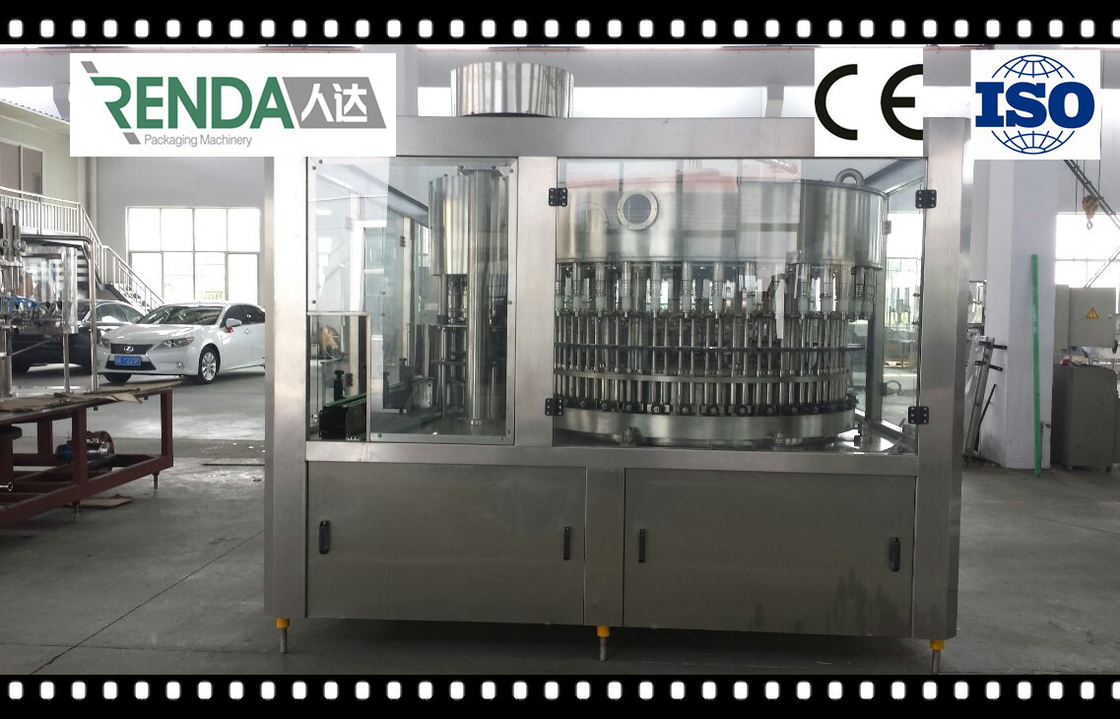

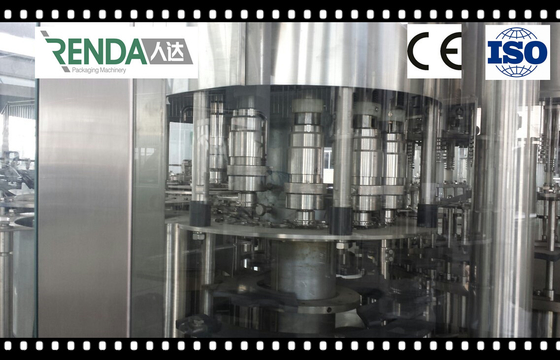

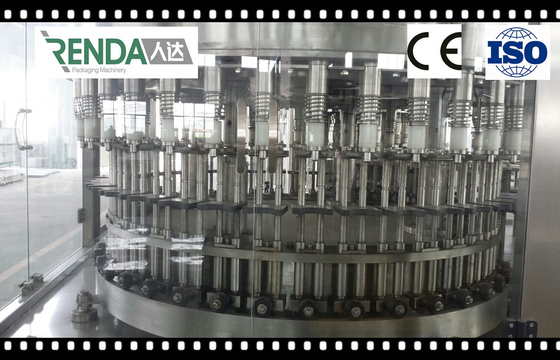

Washing Filling Capping Small Scale Beverage Water Bottle Filling Machine 2000BPH 8.5KW
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Power: 5.5KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 4300*2930*2970mm
Weight: 8.5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Name:Water Bottle Filling Machine
Description:
1,The equipment is used in production of non soda drink of fruit juice, fruit wine, minerals and pure water packed in polyster bottles. Washing, filling and capping are integrated in one machine.
2,The most advanced technology from Japan and Germany is employed in the design. The gravity fixed
liquid surface filling is fast , the amount of liquid is accurately controlled and the dropping and leakage are avoided .
3,The magnetic torque is used for screw capping. The power of screw capping can be adjusted without
steps .The power of the screw capping can also be fixed, and the caps will not be damaged ,the capping
is reliable.
4,The whole machine is controlled by PLC with touch screen as the human machine interface.
5,The amount of the drinks in the storage tank can be controlled automatically .The filling and capping will
be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are
not available, the machine can be stopped automatically.
6,The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
.
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
Specifications:
|
Main Technical Specifications |
|
|
Model |
CGF40-40-10 |
|
Production Capacity (600ml)(b/h) |
18000-20000 |
|
Way of filling |
micro-negative pressure filling |
|
Filling percision |
±5mm |
|
Feedback consumption |
≤8% |
|
Polyester bottle standdard(mm) |
Bottle Dimaeterƒ55-ƒ110;Height:186-320 |
|
Suitable cap shape |
Plastic cap |
|
Water pressure of washing bottle(Mpa) |
0.2-0.25 |
|
Water consumption for water bottle(kg/h) |
2500 |
|
Gas source pressure (MPa) |
0.7 |
|
Total power(Kw) |
5.5 |
|
Total Weight(Kg) |
8500 |
|
Dimension (L*W*Hmm) |
4300*2930*2970 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Washing Filling Capping Small Scale Beverage Water Bottle Filling Machine 2000BPH 8.5KW
Download for more details:
18000-20000BPH Beverage filling machine.pdf
