Stainless Steel 15000BPH Water Bottle Filling Machinery In 2000ml 110V
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 200ml|2000ml|12000-15000BPH |
|---|---|---|---|
| Material: | Stainless Steel | Power: | 5.5KW |
| Processing: | Bottle Filling And Packing Machine | Product Name: | Stainless Steel 15000BPH Water Bottle Filling Machinery In 2000ml 110V |
| Voltage: | 110V|220V|380V | ||
| High Light: | beverage filling machine,water filling machine |
||

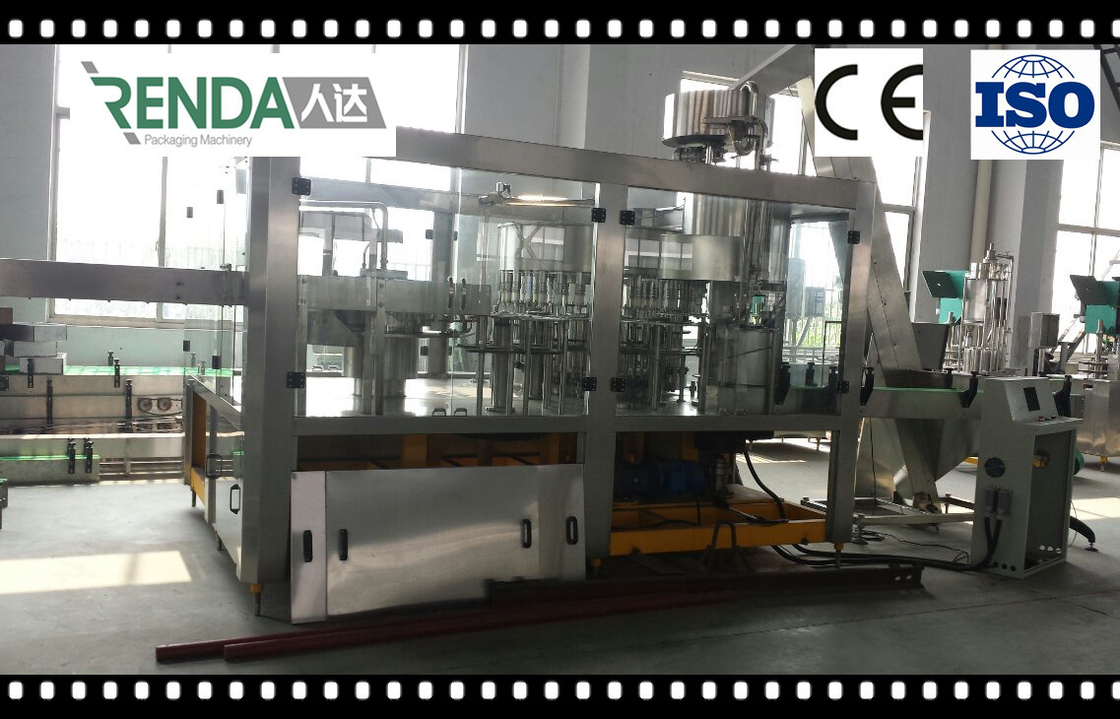

Stainless Steel 15000BPH Water Bottle Filling Machinery In 2000ml 110V
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Power: 5.5KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 3700*2750*2500mm
Weight: 4.5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Name:Water Bottle Filling Machine
Description:
-for 200-2000ml bottle filling
-12000-15000 BPH
-no bottle no filling
-Easy operation and maintenance
1.All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
2. The water filling machine was equipped with suspension type air conveyor and frequency control of motor speed.
3. This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
4. This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
5.It has touch screen control, very easy to operate.
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
Specifications:
|
Main Technical Specifications |
|
|
Model |
CGF32-32-10 |
|
Production Capacity (600ml)(b/h) |
12000-15000 |
|
Way of filling |
micro-negative pressure filling |
|
Filling percision |
±5mm |
|
Feedback consumption |
≤8% |
|
Polyester bottle standdard(mm) |
Bottle Dimaeterƒ50-ƒ92;Height:150-320 |
|
Suitable cap shape |
Plastic cap |
|
Water pressure of washing bottle(Mpa) |
0.2-0.25 |
|
Water consumption for water bottle(kg/h) |
2500 |
|
Gas source pressure (M Pa) |
0.8 |
|
Total power(Kw) |
5.5 |
|
Total Weight(Kg) |
4500 |
|
Dimension(L*W*Hmm) |
3700*2750*2500 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download:
12000-15000BPH Water Filling Production Line.pdf
