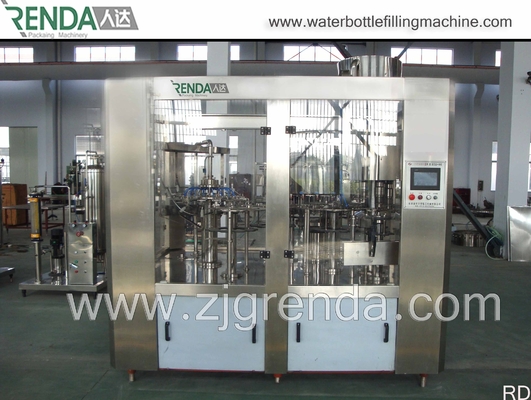

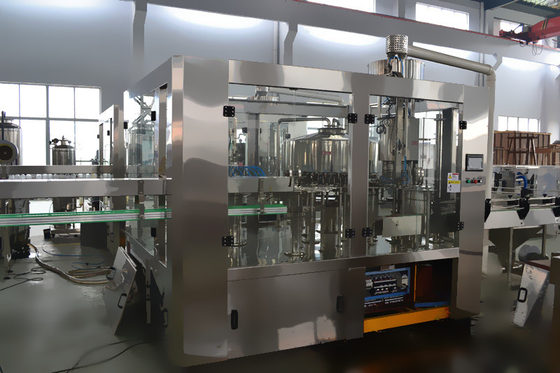

Electric 3 In 1 Automatic Water Bottle Filling Machine Customized Made Plastic Cap 500ml PET Beverage Equipment

Electric 3 In 1 Automatic Water Bottle Filling Machine Customized Made Plastic Cap 500ml PET Beverage Equipment

Quick Detail:

Driven Type: Electric

Voltage: 110/220/380V

Power: 3.8KW

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H): 3100*2300*2800mm

Weight: 3.5T

Certification: CE,ISO

Processing: bottle packing machine

Suitable Bottle: 0.25-2L

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Name:Water Bottle Filling Machine

Description:

-for 200-2000ml bottle filling
-8000-10000 BPH
-no bottle no filling
-Easy operation and maintenance

1.All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

2. The water filling machine was equipped with suspension type air conveyor and frequency control of motor speed.

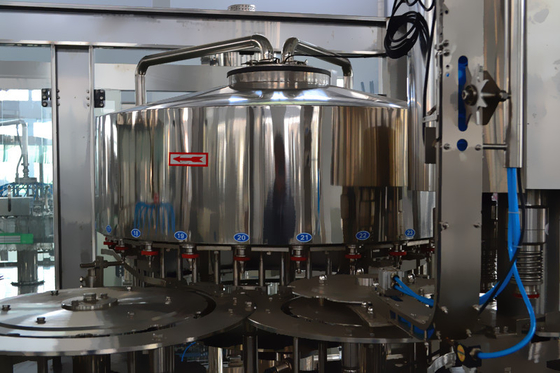

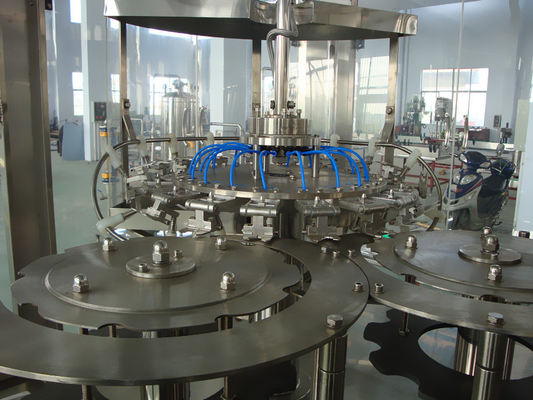

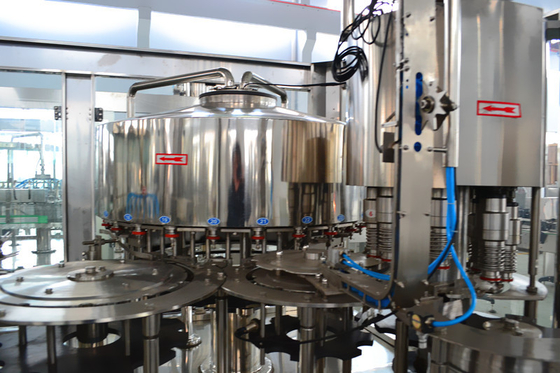

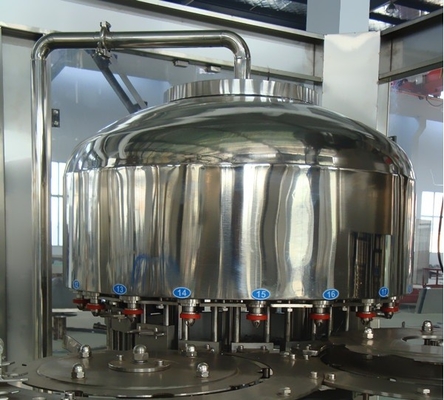

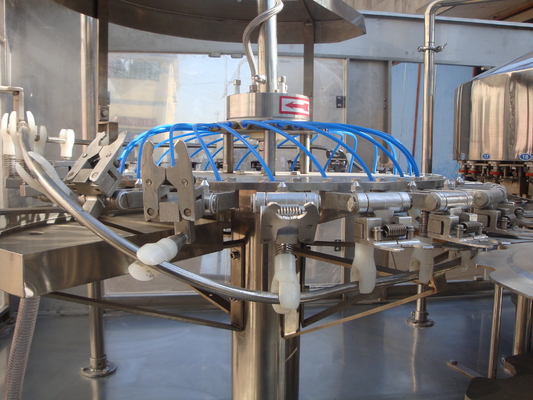

3.  This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

4. This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

5. It has touch screen control, very easy to operate.

Applications:

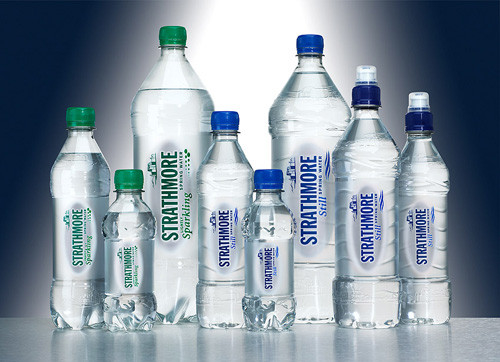

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

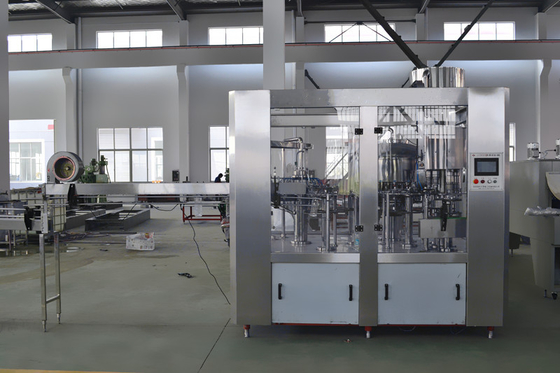

Electric 3 In 1 Automatic Bottling Equipment Customized Made Plastic Cap 500ml PET Beverage Filling Machine

Specifications:

Competitive Advantage:

1. Best price & best quality

2. Custom-made details

3. Delievery in time.

4. Life-time good service.

Download for more details:

2000-4000 Bottles per hour water filling plant.pdf

6000-8000 Water Bottling Production Line.pdf

8000-10000Water Bottling Equipment.pdf

12000-15000BPH Water Filling Production Line.pdf

18000-20000BPH Beverage filling machine.pdf

Manufacturing more machines:

Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.

Electric 3 In 1 Automatic Bottling Equipment Customized Made Plastic Cap 500ml PET Beverage Filling Machine

Wooden case packing:
