8000BPH Full Automatic Electric Water Bottle Filling Machine Equipment For Liquid Drinks
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 2000ml|8000BPH |
|---|---|---|---|
| Material: | Stainless Steel | Processing: | Bottle Filling And Packing Machine |
| Product Name: | 8000BPH Full Automatic Electric Water Bottling Equipment For Liquid Drinks | Voltage: | 110V|220V|380V |
| Power: | 3.2KW | ||
| High Light: | beverage filling machine,automatic bottle filling machine |
||

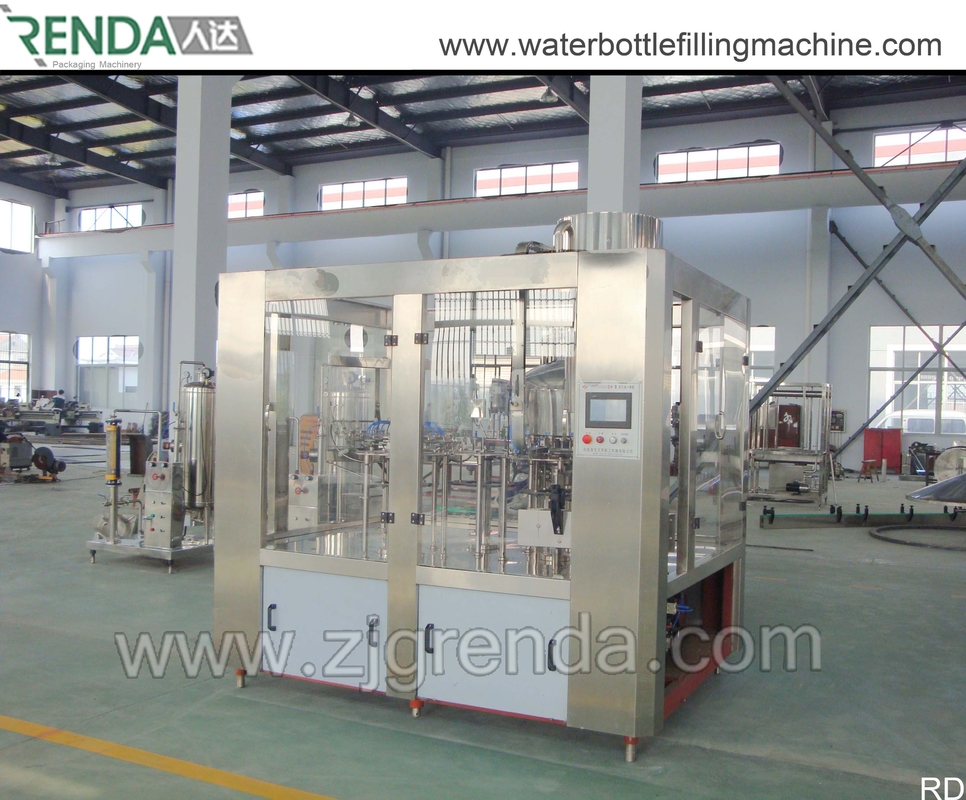

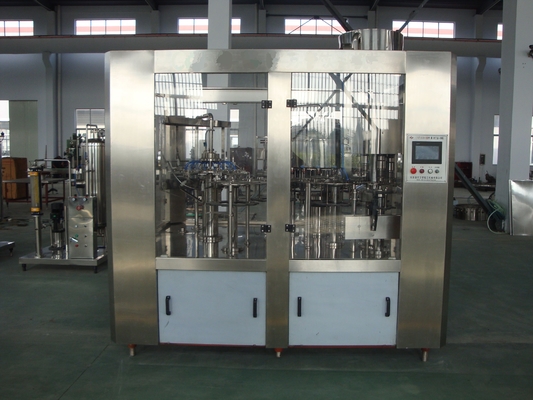

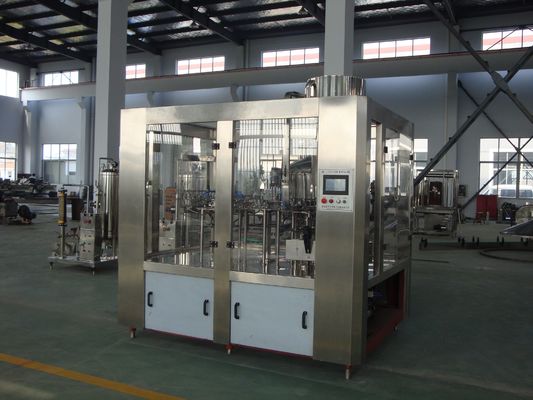

8000BPH Full Automatic Electric Water Bottle Filling Machine Equipment For Liquid Drinks
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
no bottle, no filling
easy operation and maintenance
Name:Water Bottle Filling Machine
Description:
These series of machines integrate washing, filling and capping into one unit, can be used in production of non-soda drink of pure water , fruit juice, fruit wine, and mineral water.

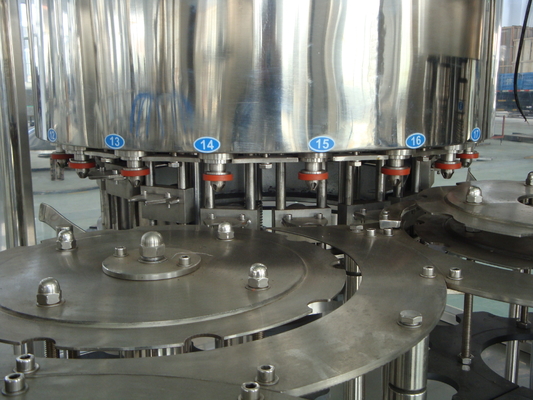

The most advanced technology from Japan and Germany is in employed in the design.The gravity fixed liquid surface filling is fast , the amount of liquid is accurately controlled and the dropping and leakage are avoided.

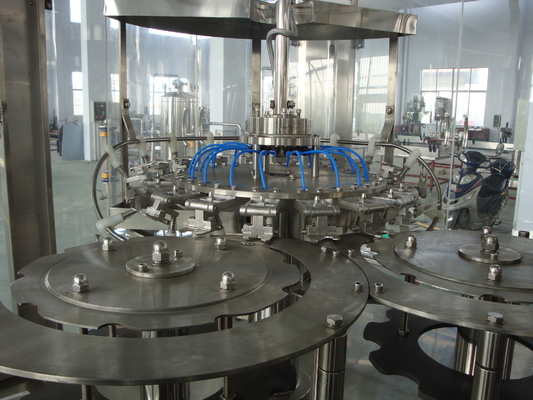

Spring cramps are used in the bottle washing process , the empty bottles can be turned over180º along the conveying rail. There are two times of internal and external washing , the efficiency of bottle washing is high.
The magnetic torque is used for screw capping .The power of the screw capping can also be fixed, and the caps will not be damaged ,the capping is reliable.
The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping willed be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
Specifications:
|
Main Technical Specifications |
|
|
Model |
CGF18-18-6 |
|
Production capacity(500ml)(b/h) |
6000-8000b/h |
|
Way of filling |
micro-negative pressure filling |
|
Filling precision |
±5mm |
|
Feedback consumption |
≤8% |
|
Polyester bottle standard(mm) |
Bottle Dimaeterƒ50-ƒ92;Height:150-320 |
|
Suitable cap shape |
Plastic cap |
|
Water pressure of washing bottle(M pa) |
0.2-0.25 |
|
Water consumption for water bottle(kg/h) |
800 |
|
Gas source pressure (M Pa) |
0.4 |
|
Total power(Kw) |
3.2 |
|
Total Weight(Kg) |
2500 |
|
Dimension(L*W*Hmm) |
2500*2010*2500 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
8000BPH Full Automatic Electric Water Bottling Equipment For Liquid Drinks
Download for more details:
6000-8000 Water Bottling Production Line.pdf
