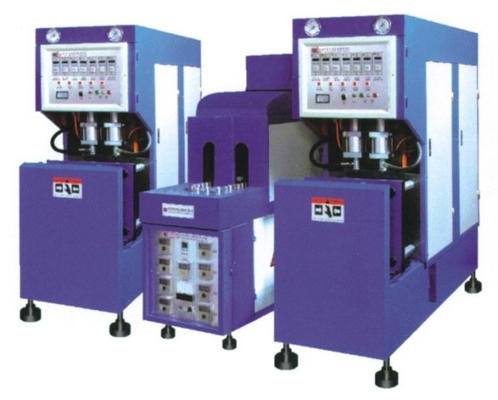

1000 - 1500 BPH Semi Automatic Bottle Blowing Machines For PET Bottles Blow Moulding Machine

Large Image : 1000 - 1500 BPH Semi Automatic Bottle Blowing Machines For PET Bottles Blow Moulding Machine Get Best Price

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	CM-8Y

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiated
Packaging Details:	wooden case packing
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20sets per month

Contact Now

Detailed Product Description

Name:	Bottle Blowing Machine	Material:	Stainless Steel
Capacity:	1000-1500BPH	Volume:	200-2000L
Suitable Bottle:	PET Bottle	Driven:	Electric
High Light:	blow moulding machine , bottle blow molding machine

1000 - 1500 BPH Semi Automatic Bottle Blowing Machines For PET Bottles Blow Moulding Machine

Description:

CM-8Y semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and

bottles from 200-2000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle,

pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to

heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet

the different requirements for the action and blow .It can provide sufficient and steady high pressure

for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the

machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .

Specification:

Type	Item	Unit	Parameter
Container	Product Material	/	PET PP PE
	Volume	L	0.1-2
	Theoretical Output	PCS/H	800-1000
	Parison Length	MM	5-350
	Preform Inner Diameter	MM	5-38
Moulding	Mould Board Max Mould Plate Dimension(LxW)	MM	350x380
	Max Mould Thickness	MM	180
	Clamping Force	KN	45
	Openning Stroke	MM	16
Machine Size And Weight	Machine Size (LxWxH)	CM	160x60x161
	Machine Weight	KG	500
	Heater Oven Size	CM	187x63x45
	Heater Oven Weight	KG	250
	Total Power	KW	24.8
