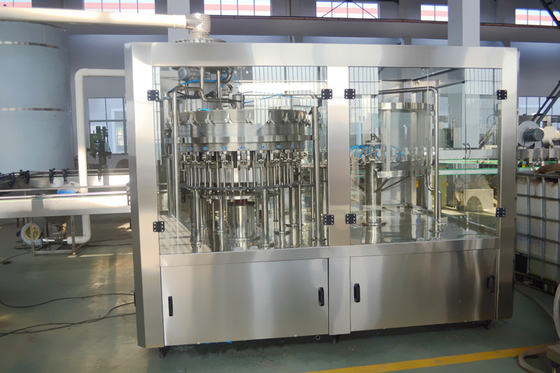

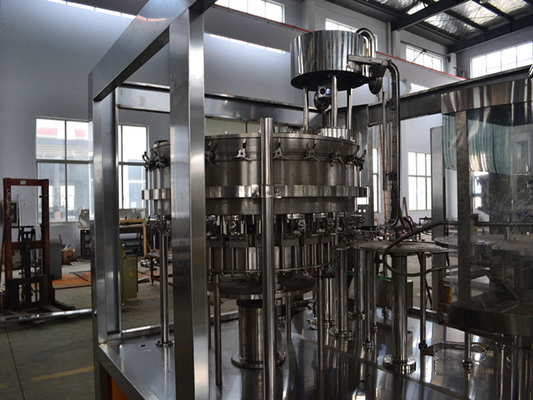

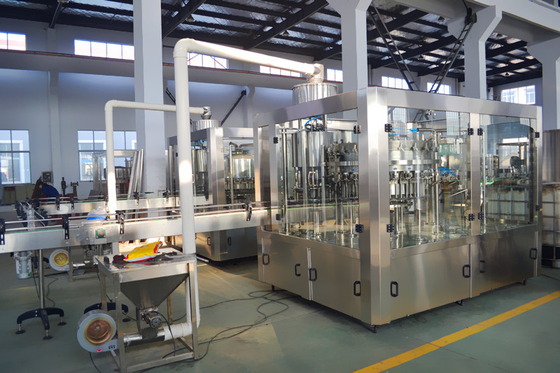

Full Automatic PET Glass Bottle Carbonated Drink Filling Machine Stainless Steel Beverage for Soft Drinks

Full Automatic PET Glass Bottle Carbonated Drink Filling Machine Stainless Steel Beverage for Soft Drinks


Quick Detail:


1. Driven Type: Electric
2. Voltage: 110/220/380V
3. Power: 5.5KW
4. Place of Origin: Jiangsu, China (Mainland)
5. Brand Name: Renda
6. Dimension(L*W*H): 2500*1900*2400mm
7. Weight:5T
8. Certification: CE,ISO
9. Processing: bottle packing machine
10. Suitable Bottle: 0.25-2L
11. Material: stainless steel
12. Warranty: 1 year
13. After-sales Service Provided: Engineers available to service machinery overse
14. Name:Carbonated Drink Filling Machine



Description:

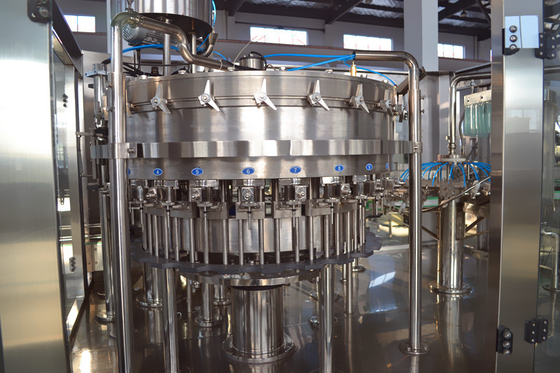

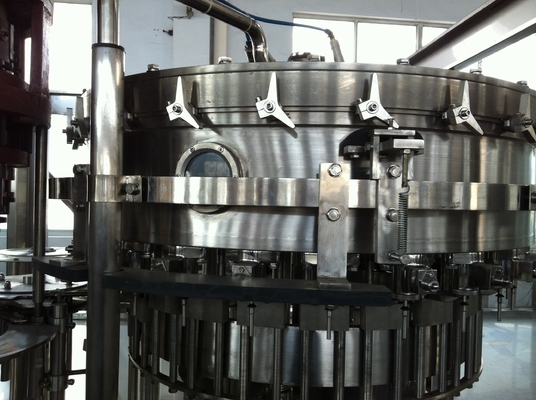

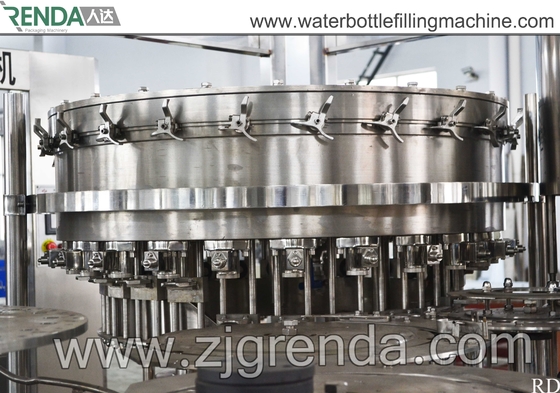

1 The suspending bottleneck clamping designmake the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily

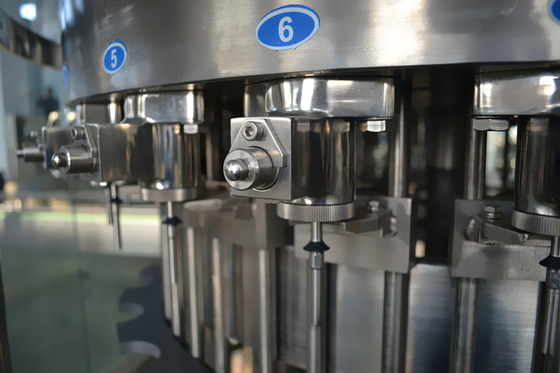

2 The new generation of stainless steel grabis adopted and the grabs have no contact with the area above the bottle"s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle
3 The advanced micro negative -pressure filling technology used in this machine makes the filling quick, steady and accurate. The beverage-holding tank is fully-closed and also, temperature-control device and CIP washing interface are installed
4 Before capping, bottle-mouth will be cleaned by R.O. Washing device.
5 Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.
6 Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
7 All parts that have direct contact with the beverages are made of high quality stainless steel. And many critical components such as the decelerator, the motor, are from famous international companies.

Applications:

Applicable for: Cola, Carbonated beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Production capacity: 5000BPH—7000BPH


Specifications:




Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology


Full Automatic PET Glass Bottle Stainless Steel beverage filling machine for Soft Drinks

Download for more details:
Soft Drinks Filling Machine(Washing, Filling, Capping 3-In-1 Unit)DCGF32-32-10.pdf
