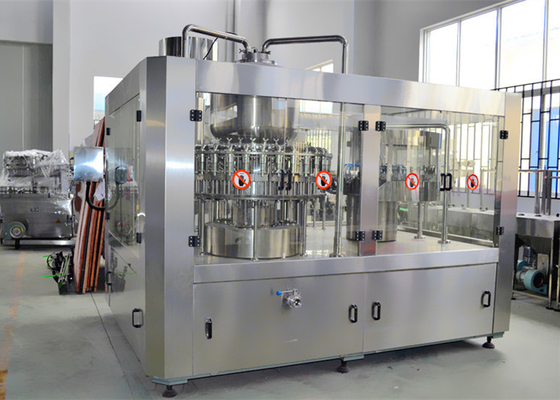

380V Stainless Steel CE Juice Filling Machine / 9kw Liquid Filling Machine

380V Stainless Steel CE Juice Filling Machine / 9kw Liquid Filling Machine

Quick Detail:

1. Driven Type: Electric
2. Voltage: 110/220/380V
3. Power: 9KW
4. Place of Origin: Jiangsu, China (Mainland)
5. Brand Name: Renda
6. Dimension(L*W*H): 2900*2500*2900mm
7. Weight:7T
8. Certification: CE,ISO
9. Processing: bottle packing machine
10. Suitable Bottle: 0.25-2L
11. Material: stainless steel
12. Warranty: 1 year
13. After-sales Service Provided: Engineers available to service machinery overse
14. Name: Juice Filling Machine

Description:

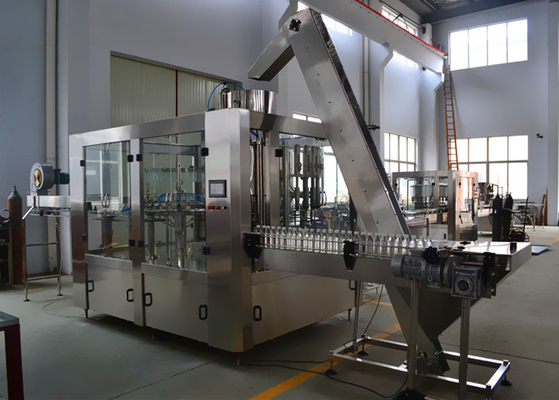

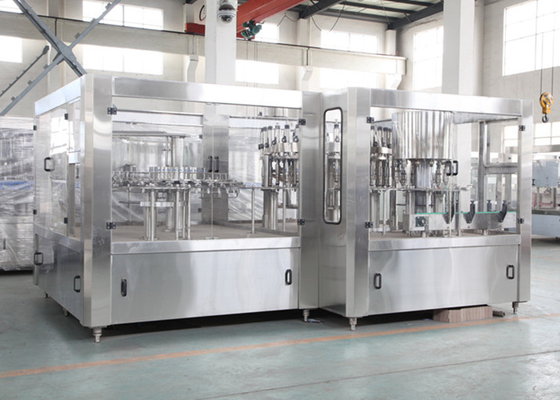

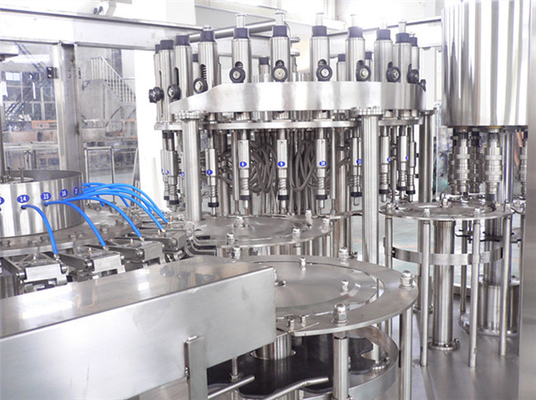

The main equipment for hot bottling machine is fully automatic washing, bottling and capping 3-in-1 machine, the assistant equipments mainly include back-flow can, bottle feeding flue and bottle discharging chain, additionally, such equipments as manual bottle feeding platform (or bottle arranging machine ), automatic cap feeding machine (or cap disinfecting system ), bottle sterilizing chain, buffering platform, cool tunnel, air drying device, lamp inspecting case, code spraying machine, labelling machine are installed according to client’s demands.

The equipment has advanced technology with bottle clamping, bottle shortage, cap shortage and overload alarm device with reliable performance, scientific procedures. The food sanitation meets the state foods sanitation standard, therefore, it is the ideal hot bottling equipment for various soft beverage manufacturers with automatic production and simple operation.

Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.

Applicable container: various PET bottles with different capacities and shapes

Bottling system: gravity bottling, low vacuum bottling etc.

Production capacity: 12000BPH—15000BPH

Specifications:

Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles

--Precise control bottling fluid level, powerfully prevent air bubble

--Sanitary class circulating pipe assures the temperature when bottling

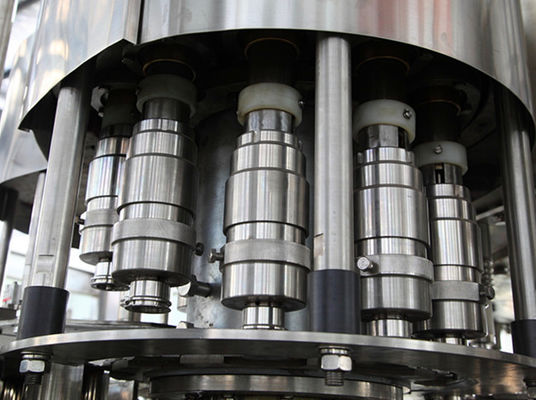

--Capping and clamping technology

380V Stainless Steel CE Juice Filling Machine / 9kw Liquid Filling Machine

Download for more details:

RCGF12-12-6 Juice Washing Filling Machine.pdf

RCGF32-32-10 Juice Washing Filling Capping Machine.pdf
