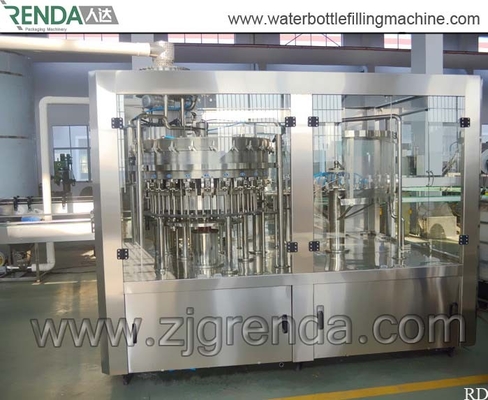

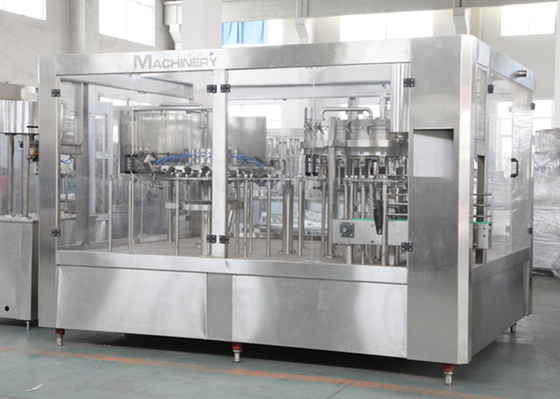

PET Bottle Liquid Bottle Carbonated Drink Filling Machine , Electric Filling Equipment


PET Bottle Liquid Bottle Carbonated Drink Filling Machine , Electric Filling Equipment

Quick Detail:

1. Driven Type: Electric
2. Voltage: 110/220/380V
3. Power: 7.5KW
4. Place of Origin: Jiangsu, China (Mainland)
5. Brand Name: Renda
6. Dimension(L*W*H): 2500*1900*2400mm
7. Weight:7T
8. Certification: CE,ISO
9. Processing: bottle packing machine
10. Suitable Bottle: 0.25-2L
11. Warranty: 1 year
12. After-sales Service Provided: Engineers available to service machinery oversea
13. Name:Carbonated Drink Filling Machine

Description:

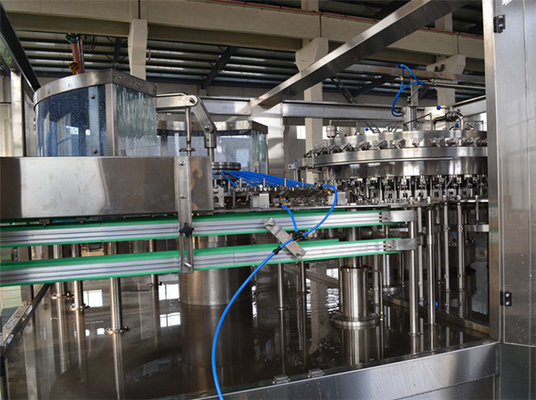

1,The air conveyor is directly connected with bottle inlet starwheel. The bottles are transferred by neck holding.
2,High speed filling line is of clamping transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.

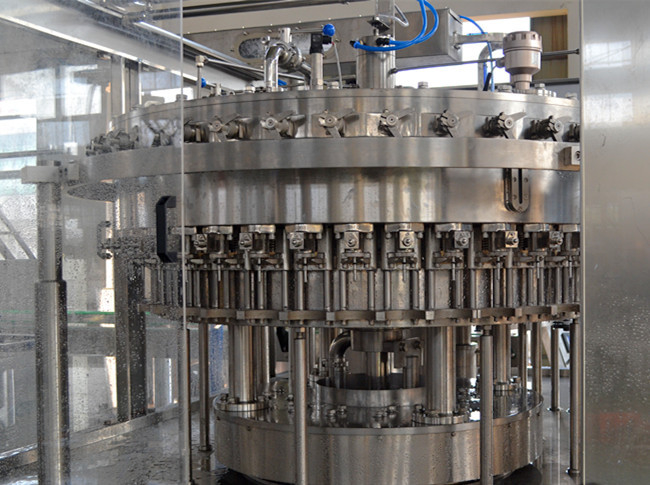

3,By 3-in-1 monoblock, the bottle goes through air/water rinsing, isobaric filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
4,Specially designed stainless steel bottle clamps don't contact the thread parts of the bottle neck, avoiding the second contamination.
5,The high speed line is of ring type pressure bearing hydraulic cylinder.

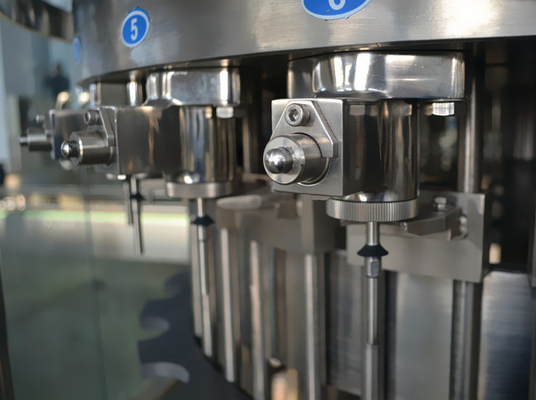

6,High speed and large flow filling valve assures the high filling speed and exact fluid level.
7,Liquid contact parts are all of excellent stainless steel or food level rubber. The electrical parts and pneumatic components are of international brand and achieve the national food sanitary standard. Such as PLC from OMRON, motors from SEW, pneumatic components from SMC, etc.
8,The bottle outlet starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.
9,According to customer’s requirement to the high speed line, the bedplate can be designed and manufactured as gable top shape. This design reduce the rinsing water accumulating on the table-board. 10,The capping heads can be designed and manufactured as COP capping heads. These two designs realize more sanitation than conventional design.


Applications:

Applicable for: Cola, Carbonated beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Production capacity: 7000BPH—9000BPH


Specifications:




Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology

PET Bottle Liquid Bottle Filling Machine , Electric Filling Equipment

Download for more details:
DCGF40-40-10 Washing Filling Capping 3-in-1 Machine.pdf
Soft Drinks Filling Machine(Washing, Filling, Capping 3-In-1 Unit)DCGF32-32-10.pdf
