2L Semi Automatic Bottle Blowing Machine 1600BPH in Stretch Blow Moulding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Bottle|water Bottle | Plastic Processed: | PET|plastic |
|---|---|---|---|
| Product Name: | Bottle Blowing Machine|blow Moulding Machine | Voltage: | 220V |
| Volume: | 2L | Name: | Name:Bottle Blowing Machine |
| Material: | SUS 304 316 | ||
| High Light: | blow moulding machine,bottle blow molding machine |
||
2L Semi Automatic Bottle Blowing Machine 1600BPH in Stretch Blow Moulding Machine
Quick Detail:
- Condition: New
- Application: Bottle
- Plastic Processed: PET
- Blow Moulding Type: Stretch Blow Moulding
- Automatic: Yes
- Model Number: CM-8Y
- Name:Bottle Blowing Machine
Description:
CM-8Y Semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L to 2L. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
*Adopting double crank to adjust mould, heavy locking mould, stable and fast.

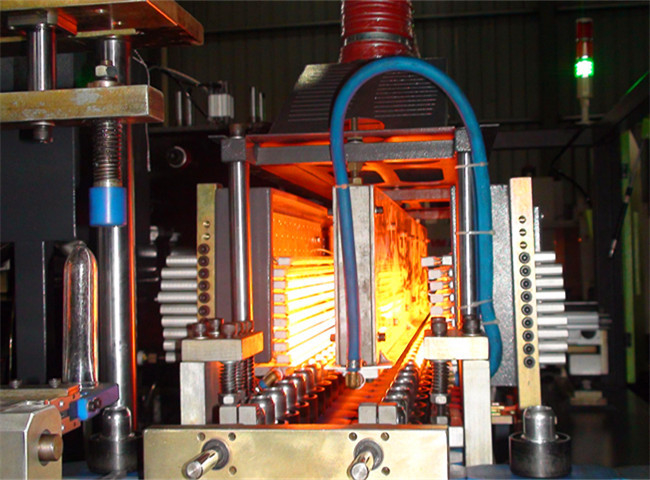

*Adopting infrared oven to heat the preform, the preform rotated and heated equally.
*The air system has been divided into two parts: pneumatic action part and bottle blowing part to meet the different requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
*The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
*The machine can be operated in the step-by-step mode and the semi-auto mode.
*The machine is small with low investment, easy and safe for operating.
Applications:
CM-8Y Semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L to 2L.
Specifications:
Model | ITEM |
| CM-8Y |
Container | Product material | / | PET |
Volume | L | 0.1-2 | |
Theoretical output | pcs/h | 1400-1800 | |
Preform length | mm | ≤350 | |
Preform inner diameter | mm | φ5-38 | |
Mould | Max.mould plate Diameter(L*W) | mm | 350*380 |
Max.mould thickness | mm | 180 | |
Clamping force | kn | 45 | |
Mould opening stroke | mm | 160 | |
Machine size and Weight | Main machine (L*W*H) | cm | 1600*600*1610 |
Main machine weight | kg | 500 | |
Heater (L* W*H) | cm | 1870*630*1450 | |
Heater weight | kg | 250 | |
Power | kw | 17.5 |
Competitive Advantage:
- Save Cost
- Stable Quality
- Save Place
2L Semi Automatic Bottle Blowing Machine 1600BPH in Stretch Blow Moulding Machine
Download for more details:
Automatic Shrink Packing Machine.pdf
