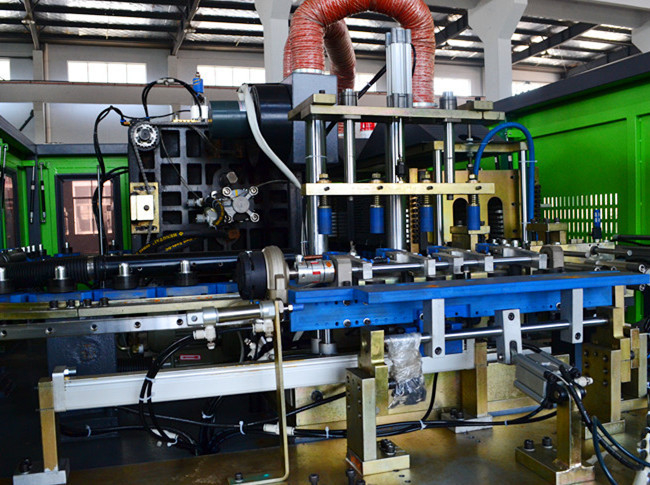

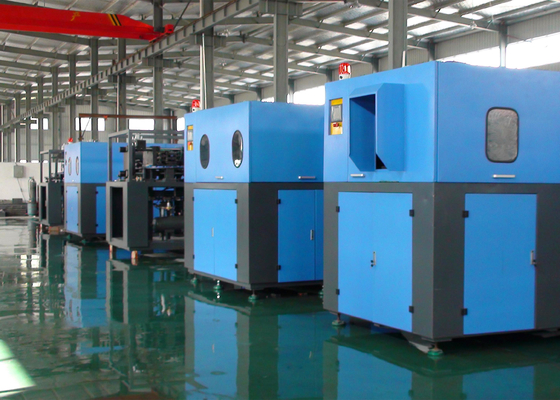

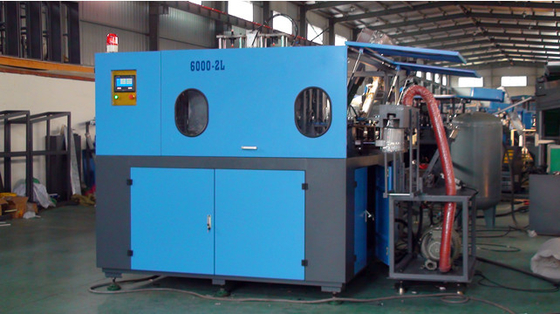

Full Automatic Bottle Blowing Machine with 4 Cavity for Watter Bottling Line

Large Image : Full Automatic Bottle Blowing Machine with 4 Cavity for Watter Bottling Line Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	CM-A4

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	30 pcs/month

Contact Now

Detailed Product Description

Application:	Bottle\|water Bottle	Plastic Processed:	PET\|plastic
Product Name:	Full Automatic Bottle Blowing Machine With 4 Cavity For Watter Botting Line	Voltage:	220V\|380V
Volume:	2L	Material:	SUS 304/316
High Light:	blow moulding machine , automatic blow moulding machine

Full Automatic Bottle Blowing Machine with 4 Cavity for Watter Bottling Line

Quick Detail:

Condition: New
Application: Bottle
Plastic Processed: PET
Blow Moulding Type: Stretch Blow Moulding
Automatic: Yes
Model Number: CM-A4
Name: Bottle Blowing Machine

Description:

1.Bottle blow molding machinery is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
2.PLC control, full-automatic working
3.High adjusting performance to enable preheat the pre-forms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
4.High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
5.Introduce the FESTO air cylinder to avoid contamination and noise.
6.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
7.Strong clamping force with high pressure and double crank links to lock the mould.
8.Two ways of operating: automatic and manual.
9.Ideal cooling system makes the finished bottles without any flaws
10. Low rejection rate: less than 0.2 percent.

Applications:

CM-A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes.

Specifications:

Model	ITEM	CM-A2	CM-A4
Productivity	Depend on bottle design	1800-2000PCS/H	3200-4000PCS/H
Product type	Volume	0.1-2L	0.1-2L
	Body diameter	≤100mm	≤100mm
	Height	≤310mm	≤310mm
	Neck diameter	≤38mm	≤38mm
Mould	Cavity	2	4
	Mold thickness	240mm	240mm
	Mold size	260240370mm	510240360mm
Main machine power	Electrical source power	380V/220V 50/60HZ 3Phase	380V/220V 50/60HZ 3Phase
	Power	25kw	49kw
	Really use power	6.5kw	13kw
Air system	HP air compressor	1.4 m3/min 3.0Mpa	2.0 m3/min 3.0Mpa
	LP air compressor	1.0 m3/min 1.0Mpa	1.6 m3/min 1.0Mpa
	Air Tank	0.6m3 3.0Mpa	0.6m3 3.0Mpa
	Air dryer	1.0m3/min 3.0Mpa	2.0m3/min 3.0Mpa
Cooling water	Water Chiller	3HP	3HP
Machine	Size(LWH)	190012801930mm	190018601930mm
Machine	Weight	2000kg	3600kg
Preform unscrambler	Size(LWH)	20009502480mm	20009502480mm
Preform unscrambler	Weight	250kg	250kg

Competitive Advantage:

*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.

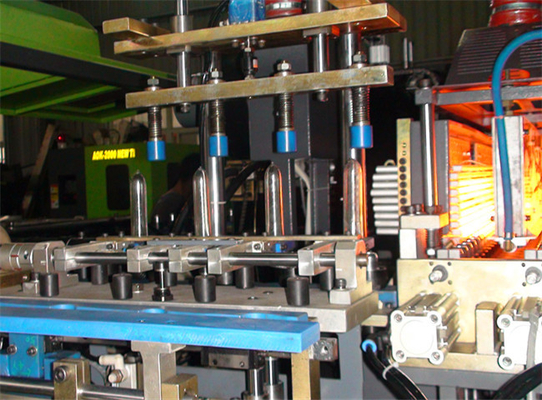

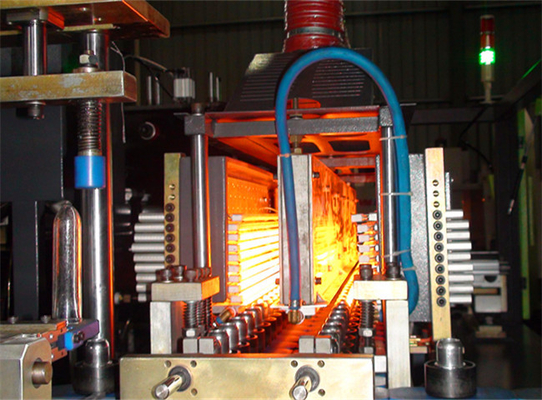

*Infrared oven adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.

Full Automatic Bottle Blowing Machine with 4 Cavity for Watter Botting Line

Download for more details:

Full Automatic Bottle blowing machine.pdf
