5 gallon Semi Automatic Bottle Blowing Machine Stretch Blow Moulding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 5 Gallon Semi Automatic Bottle Blowing Machine Stretch Blow Moulding Machine | Capacity: | 300-450BPH |
|---|---|---|---|
| Suitable Mould: | 5L | Voltage: | 110V L 220V L 380V |
| Material: | Stainless Steel |

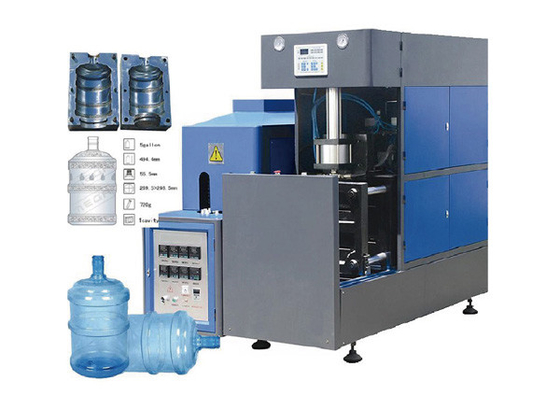

5 gallon Semi Automatic Bottle Blowing Machine Stretch Blow Moulding Machine
Quick Details:
- Condition: New
- Application: 5 gallon
- Plastic Processed: PET
- Blow Moulding Type: Stretch Blow Moulding
- Automatic: Yes
- Name: Bottle Blowing Machine
- Machine Size:L*W*H:193×72×183mm
- Power:17.5Kw
Description:
CM-9B semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 3000-10000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .

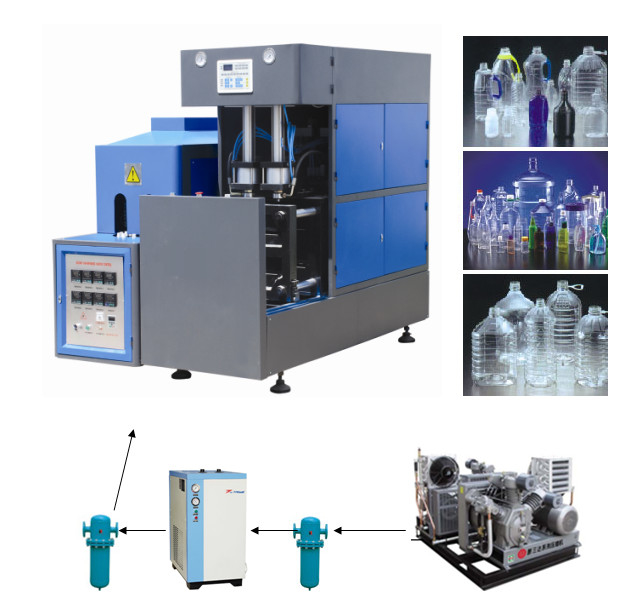

| ITEMS | Semiautomatic blow molding machine | MODEL | QUANTITY | NOTE |
| 1 | Semiautomatic blow molding machine | CM-9B | 1 |
Including 1-main machine and 1- Infrared oven |
| 2 | Mould | 5L | 1 | 2 cavity |
| 3 | HP Air Compressor | 1.2m3/min 30Kg | 1 | / |
| 4 | Air dryer | 2.0 m3/min 30Kg | 1 | / |
| 5 | Air filter | 2.0 m3/min 30Kg | 2 | / |
| 6 | High pressure hose | / | 1 | / |
