Full Automatic Capping Machine Water Bottle Filling Machine Capping Machine

Full Automatic Capping Machine Water Bottle Filling Machine Capping Machine

Quick Details:

Driven Type: Electric

Voltage: 110/220/380V

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Suitable Bottle: 0.25-1.5L

Inner Diameter of Bottle Mouth: φ20 - φ30mm

Diameter Range of The Bottle: φ50-φ92mm

Dimension(L*W*H): 1170×1050×2300mm

Weight: 800KG

Processing:Capping Machine Base, Transition Gear Device, Capping Device, Base and Drive

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Name:Full Automatic Capping Machine Water Bottle Filling Machine Capping Machine

Description:

1. Production capacity:5000 bottles / H

2. Number of capping heads:6

3. Bottle specifications:round

4.Bottle diameter:φ50-φ88mm,

5.Bottle height between:150-300mm

6. Air supply pressure 0.5MPa

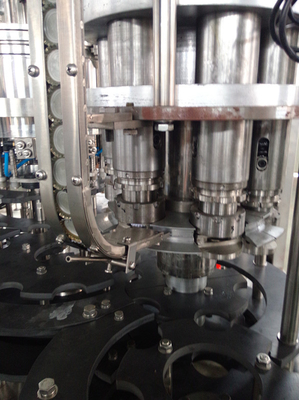

7.The capping part is composed of 6 sets of screw head, capping drive part and sorting part. The plastic bottle of completion of filling is transferred by the bottle-dialing wheel to the capping position. The capping head with the magnetic torque drops to align the bottle head for capping. When the torque force exceeds 7kgf, the capping head automatically slips, thereby protecting the bottle cap from being pulled bad by capping sleeve. Those bottles that have completed capping heads are sent by the bottle-dialing wheel to the conveyor belt for output.

Applications:

FBZ-6 full-automatic capping machine can be used alone, meanwhile, it can also be used to make up filling production line with other equipment.

Specifications:
