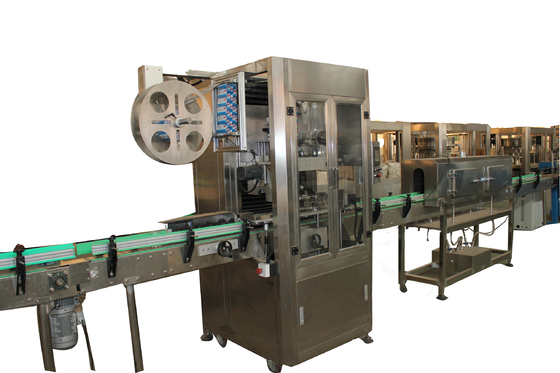

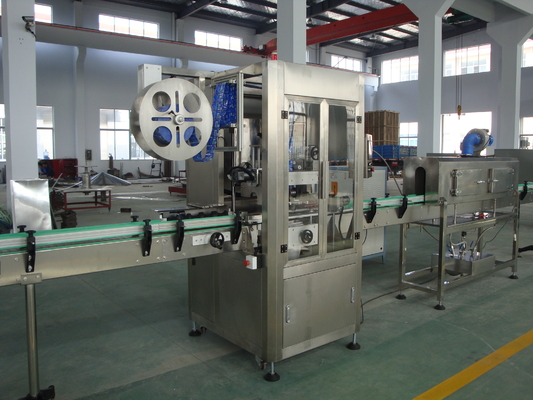

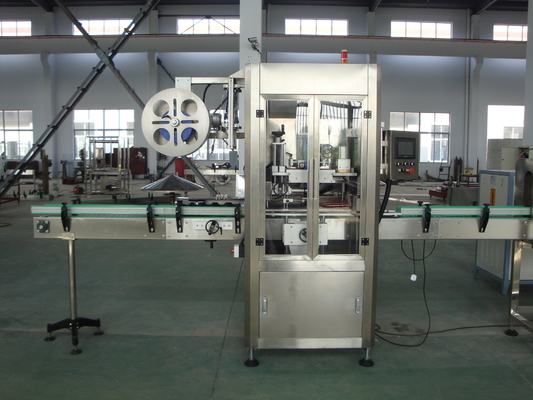

High Speed Single / Double Head Sleeve Sticker Labeling Machine 380V 3 Phase 480 kg

High Speed Single / Double Head Sleeve Sticker Labeling Machine 380V 3 Phase 480 kg

Download:
Automatic Sleeve Labeling Machine.pdf

Quick Detail:

1. Name: Sticker Labeling Machine
2. Driven Type: Electric
3. Voltage: 110/220/380V
4. Brand Name: Renda
5. Dimension(L*W*H): 2220*1100*2100mm
6. Weight:480kg
7. Certification: CE,ISO
8. Processing: labeling machine
9. Suitable Bottle: 0.25-2L
10. Material: stainless steel
11. Warranty: 1 year
12. After-sales Service Provided: Engineers available to service machinery oversea

Advantages:
The machine can be used in two ways. It not only reduces a trapping label machine. But also saves the cost for customers.
It reduces the length of conveying line or avoids the secondary transportation, so that it increases the production efficiency and the floor areas of equipment.
It reduces the length of conveying line or avoids the secondary transportation, so that it increases the quality of product.

Electrical Appliance Configuration Specification:
It adopts equivalent PLC, positioning module, servo motor and frequency converter. Besides, its touch screen is featured with a humanized operation.

Varieties for Casting Label :
With the accurate casting label, the equipment applies to the casting label and sealing foe bottles with various shapes and hexagonal oil drum. Suitable for large bottle-type (3-5 liters barrel containers).the products are sold in quantity to the domestic and overseas markets.

PM-150D technical character:
1. Whole machine adopt qualified stainless steel and good-quality of aluminum alloy, compact and reasonable fracture, convenient to adjust
2. The label roll frame of shrinkage film with adjustable device, convenient to adjust according to differ volume label 5~10paper tube.
3. Simply installation, then can convenient for square and round bottle.
4. No need of instrument, rotary mechanism is convenient to adjust, apply to different bottle type.
5. Unique sleeve labeling method, adopt pressing sleeve labeling method, not only convenient but also reasonable.
6. Control the feeding system automatically, and flat the shrinkage film and adjust strain simultaneity.
7. Unique design knife plate, in the determined range, can change the knife base. Knife changing quickly and conveniently.
8. Middle guide-pole clip system, mould changing quickly, no need any instrument.
9. Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.
10. Imported servo system and high-sensitivity photoelectric from Japan, with high cutting precision of label.
11. Stainless steel electric control cabinet, OMRON PLC, imported from Japan.
12. Adopt advanced man-computer Interface auto controlling technology, key electric component all adopt international famous industrial brand.





High Speed Single / Double Head Sleeve Labeling Machine 380V 3 Phase 480 kg
