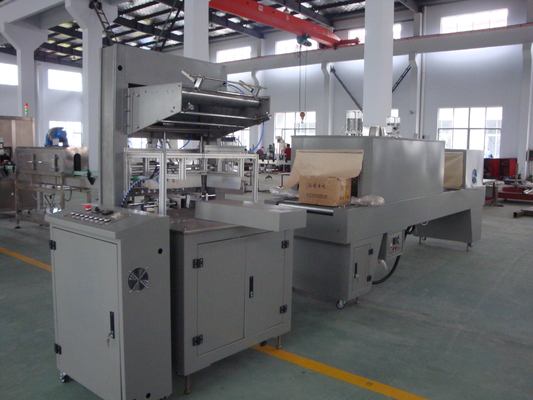

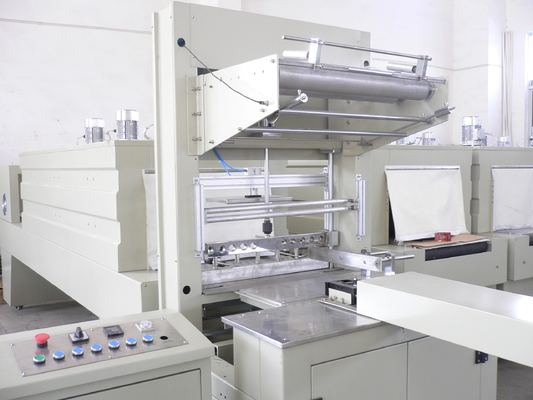

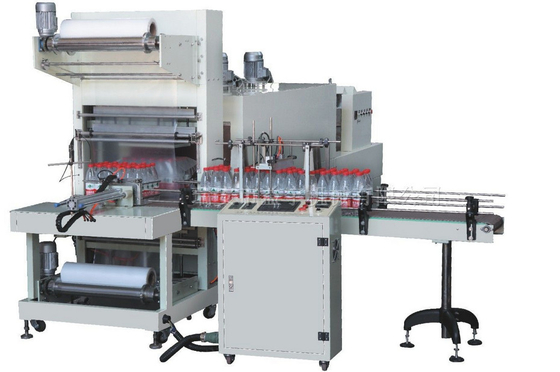

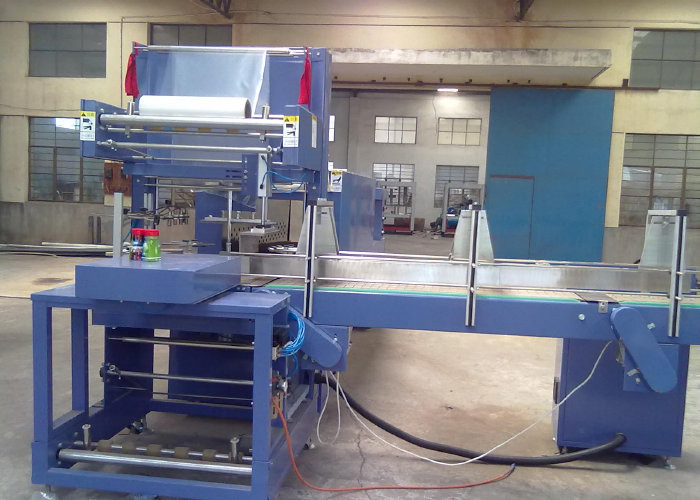

Bottling / Sealing Shrink Automated Packaging Machines Bottle Shrink Wrapping Machine

Bottling / Sealing Shrink Automated Packaging Machines Bottle Shrink Wrapping Machine

Download for more details:
Automatic Shrink Packing Machine.pdf

Name: Automated Packaging Machines

Technical parameter

Facility type MB-6545 type
Facility external size L5050× W3300× H2100mm
Wrappage max size L600× W400× H350mm
Shrinkage film size PEPVCPOF
Shrinkage thermo thickness 0.03-0.15mm
Thermo shrinkage tunnel temperature: 160 - 260° Can adjust at will.

Max output per minute 8-12bag
Facility power 18Kw
Actual power 15Kw/hr
Pressure requirement 380/220V
Facility weight 1.2T
Fan machine 1.1Kw 2set 380V, 65W 4set 380V

Facility basic configuration

Taiwan Weinview touch screen, Panasonic PLC controlling system
Taiwan AIRTAC pneumatic component 1set
Taiwan Teco frequency converter 3 set
Stainless steel wing heating tube 12 piece
China-America cooperation Teflon convey belt.
Shanghai Hemei electric-motor and Zhejiang Taili worm speed-regulation machine.
South-Korea Autonics photoelectric switch, proximity.
Thermo sealing knife Aluminum-mould heating board, even temperature, long life, our company special production.
Whole machine plastic-sprayed, machine rack adopt to high-quality carbon steel, main part adopt to stainless steel.
Bottle convey machine length 2600mm
Carton and wrappage film pack separately.

Product description


1. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc.

2. Adopt with PLC automatic program circulation control with stable and reliable performance.

3. 3 layers of heat insulation treatment with good insulting property, quick temperature rise and energy saving.

4.The enhanced cooling shaping passage can quickly turn the packing membrane into high strength status that is conveniently stored and transported.

5.It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine

Technical condition and requirement
