Product Details:
Payment & Shipping Terms:
|
Features: | Automatic | Material: | Stainless Steel |
---|---|---|---|
Power: | 10 KW|11 KW|13 KW|15 KW | Product Name: | CE ISO China New Automatic Heat Shrink Film Wrapper Packing Machinery |
Suitable Bottle: | Glass Bottle|PET Bottle | Voltage: | 50HZ|380V |
High Light: | liquid packing machine,beverage Packaging Machine |

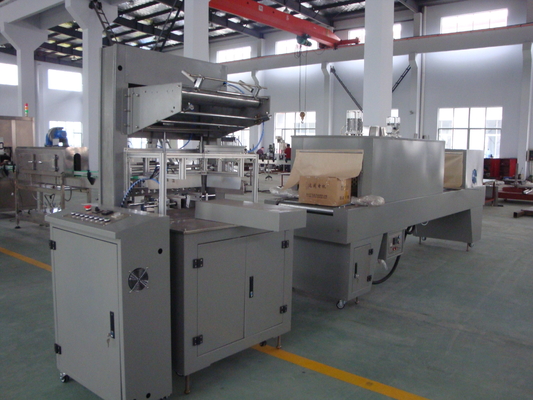

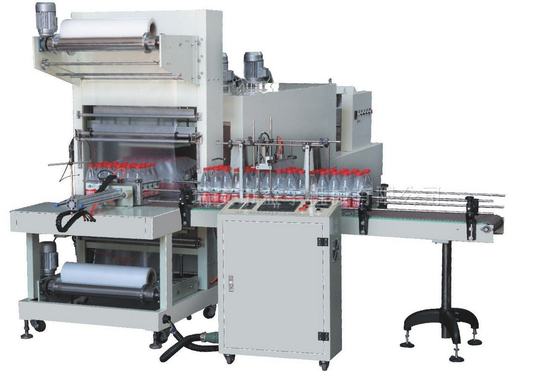

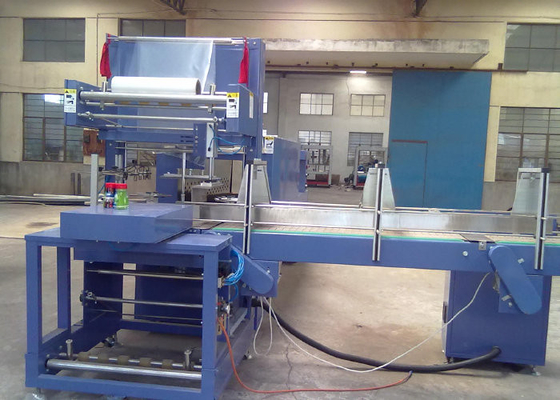

ISO Heat Shrink Film Automated Packaging Machines Wrapper Packing Machinery
Quick Detail:
Name: Automated Packaging Machines
Driven Type: Electric
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle:Glass Bottle,PET Bottle
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Description:
Our automatic shrink packing machine will be connected to the producing line directly, the bottled or canned beverage after filling, labeling, will be send to the heat shrink wrapping machine, and the machine will adjust the packing speed automatically.
After the bottles or cans arrived our machine, the mechanical hands will push bottles into the machine together with the PE film , and then will cut the PE film as required, be send to heat shrinking stove, finish the heating and cooling process.

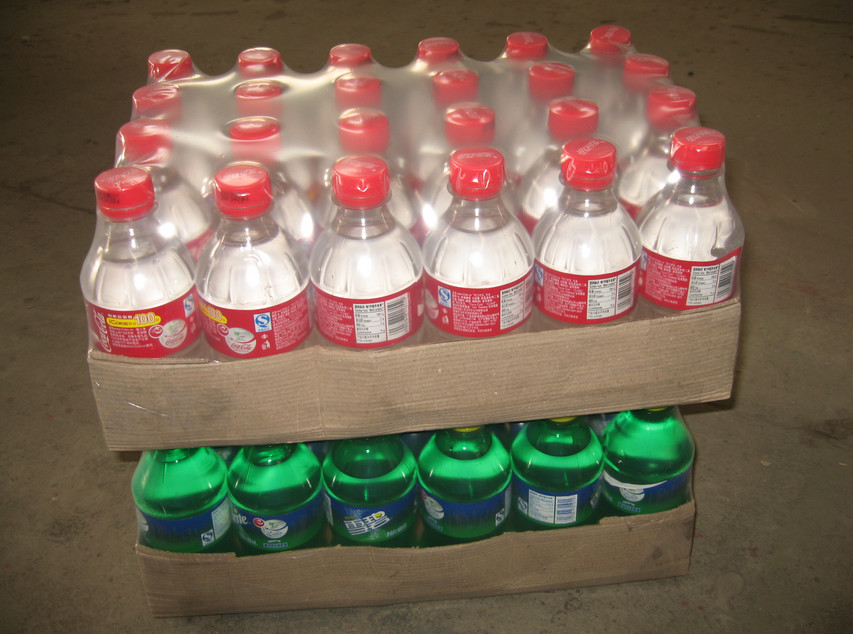

The bottles after packing will be with nice appearance, easy for transporting. And our machine can be widely used in bottled beverage, food, medicine, etc.
Applications:
This type of cartoon packing machine is suit for beverage, drinking water, beer, wine and infusion bottle ect.
Specifications:
Dimension for the whole unit: | L5500mm×W3200mm×H2100mm |
Thermal shrinkage passage dimension: | L1800mm×W650mm×H450mm |
Max. package dimension: | L600mm×W400mm×H350mm |
Transfer belt dimension: | 800-1200mm |
Packaging speed: | 10-12Packages/Minute |
Operating power supply/power: | 380V, 19Kw |
Sealing and cut time/temperature: | 0.5-1.5S,140oC-160oC |
Operating air pressure: | 0.6-0.8Mpa |
Air consumption: |
0.5m3/Minute |
CE ISO China New Automatic Heat Shrink Film Wrapper Packing Machinery
