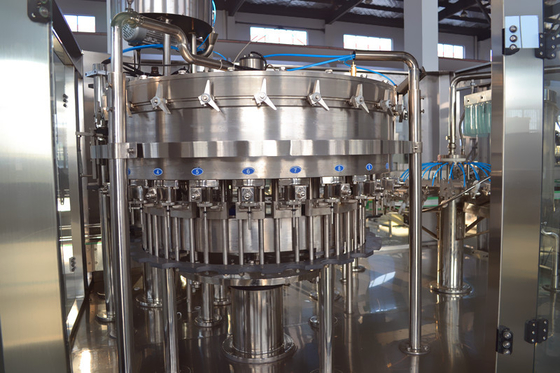

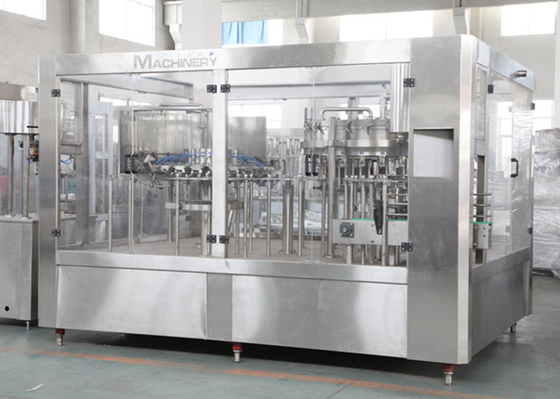

DCGF40-40-10 Automated SUS. 304 Carbonated Drink Filling Machine Gas Beverage Bottling Equipment

DCGF40-40-10 Automated SUS. 304 Carbonated Drink Filling Machine Gas Beverage Bottling Equipment

Quick Detail:

Driven Type: Electric

Voltage: 110/220/380V

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Certification: CE,ISO

Processing: bottle packing machine

Suitable Bottle: 0.25-2L

Material: stainless steel

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overse

Name:Carbonated Drink Filling Machine

Description:

• Model: DCGF404010

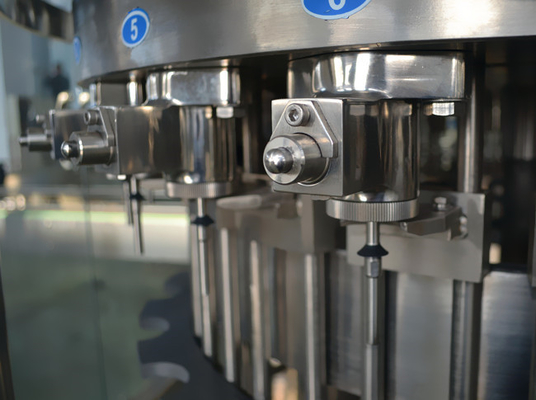

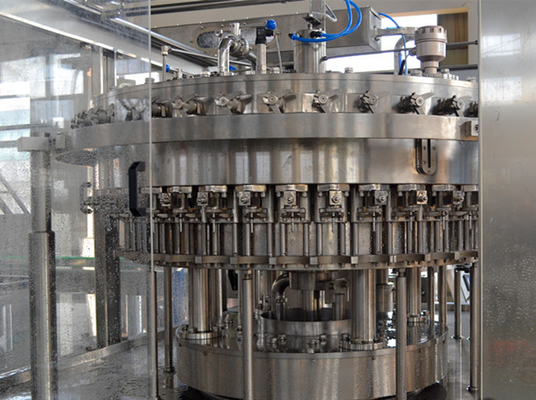

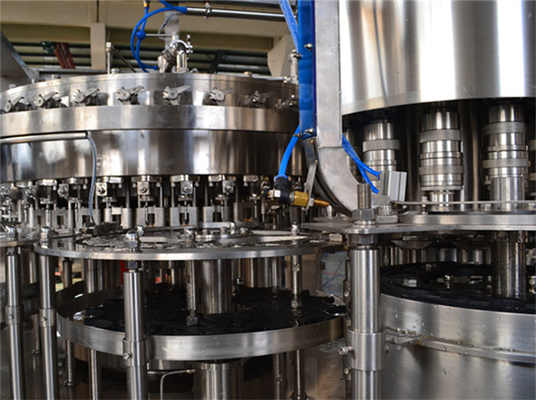

• Number of heads: 40 washing heads, 40 filling    heads and 10capping heads
• Capacity: 10000-15000B/H (500ml PET standard bottle)
• Material: The material which contact directly with the liquid is the SUS304 (Food grade), made in china. The transmission mechanism and the gear are equipped with firing A4 carbon steel.
• The 3-in-1 is mainly used to fill carbonated aerated beverage.
• Disposition :

1,Motor: SIMENS BEIDE

 2,Speed reducer: JIE brand Hangzhou

3,Invert speed control: Japanese Mitsubishi

4,PLC: Japanese Mitsubishi

5,Touch screen: Made in Taiwan

6,Pneumatic component: DELIXI

7  pneumatic component: Taiwan AIRTAC

8  liquid level control: Taiwan

• Volume of PET bottle : 0.25L-2L
• Diameter of bottle: 50-100mm
• Height of bottle: 170-310mm
• Cap diameter: plastic screw type cap diameter Φ30
• Filling temperature: 3-6 degrees
• Filling pressure: ≤0.4Mpa
• Filling precision: ±2-3%
• Pressure of washing: 0.3Mpa
• Washing consuming water: 1200kg/h
• Gas consumption: 0.4m³ /min
• Power of main motor: 7.5KW
• Dimension: 4200×2250×2250mm
• Weight: 7500kg

Applications:

Applicable for: Cola, Carbonated beverage etc.

Applicable container: various PET bottles with different capacities and shapes

Production capacity: 8000BPH—10000BPH

Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles

--Precise control bottling fluid level, powerfully prevent air bubble

--Sanitary class circulating pipe assures the temperature when bottling

--Capping and clamping technology

DCGF40-40-10 Automated SUS. 304 Carbonated Gas Beverage Bottling Equipment

Download for more details:

DCGF40-40-10 Washing Filling Capping 3-in-1 Machine.pdf
