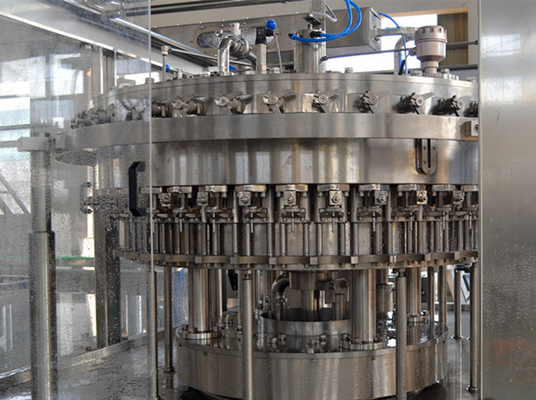

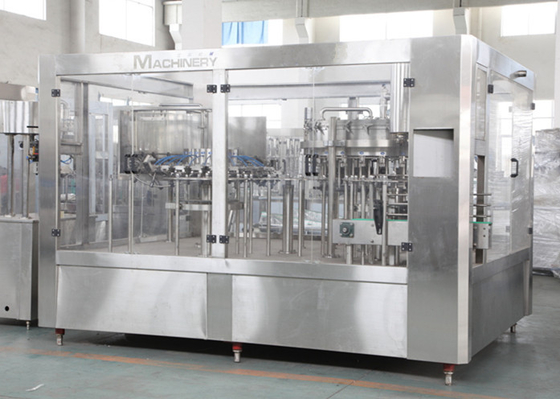

8000BPH Carbonated Drink Filling Machine / Soda Beverage Filling Machine

8000BPH Carbonated Drink Filling Machine / Soda Beverage Filling Machine

Quick Detail:

Driven Type: Electric

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H):3000*2500*2400mm

Weight:9.8T

Certification: CE,ISO

Processing: bottle packing machine

Suitable Bottle: 0.25-2L

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery oversea

Name:Carbonated Drink Filling Machine

Description:

1.Direct connection technology between air conveyor and in-feeding starwheel is applied to replace in-feeding screw and conveying chain to ease bottle changing process with only to change few parts. Newly-designed bottle-separating grippers are assembled to starwheel.

 2.Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily, without equipment height adjustment ,only few parts need to be adjusted,carbonated drink machine.

 3.Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution.

 4. splint of starwheel using twist descending way to simplify the process of bottle-size-changing. Only need to change arch board and starwheel ,within ten minutes.

Applications:

Applicable for: Cola, Carbonated beverage etc.

Applicable container: various PET bottles with different capacities and shapes

Production capacity: 8000BPH—10000BPH

Specifications:

Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles

--Precise control bottling fluid level, powerfully prevent air bubble

--Sanitary class circulating pipe assures the temperature when bottling

--Capping and clamping technology

8000BPH Carbonated Drink Filling Machine / Soda Beverage Filling Machine

Download for more details:

DCGF40-40-10 Washing Filling Capping 3-in-1 Machine.pdf
