Glass Bottle Wine Filling Machine for Whisky Sparkling , Liquid Filling Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Wine|Beer | Certification: | CE|ISO |
|---|---|---|---|
| Processing: | Bottle Packing Machine | Product Name: | Glass Bottle Wine Filling Machine For Whisky Sparkling , Liquid Filling Machine |
| Suitable Bottle: | Glass Bottle | Voltage: | 110V|220V|380V |
| Material: | SUS 304 316 | ||
| High Light: | water filling machine,automatic bottle filling machine |
||

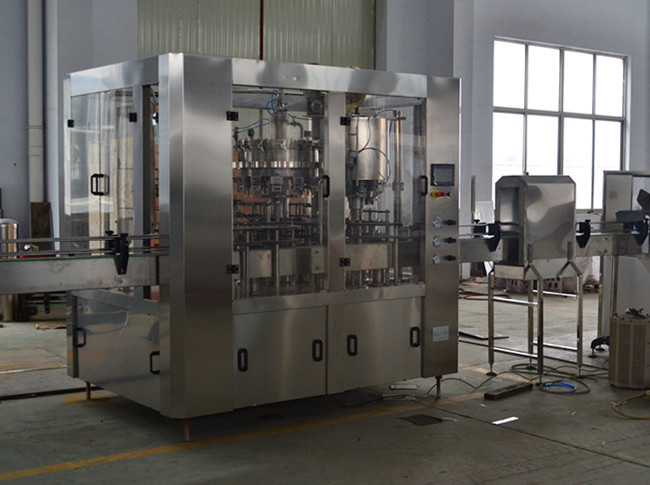

Glass Bottle Wine Filling Machine for Whisky Sparkling , Liquid Filling Machine
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Material: stainless steel
Processing: bottle packing machine
Suitable Bottle:Glass Bottle
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Name: Wine Filling Machine
Description:
Alcohol / Vodka Wine Filling Machine ,TOKAY filling machine and so on .with CE ISO certificate
This whisky/wine bottling machine with washing filling and capping, normally used for glass bottle and ROPP cap, or crown cap.This is our alcohol filling machine .The capacity is from 2,000-12,000 bottles per hour.It is our Alcohol filling line ,belongs to low pressure filling ,can promise the filling precision
Applications:
The CGFD series filling machine is specialized in wine filling.
Download for more details:
DCGF40-40-10 Washing Filling Capping 3-in-1 Machine.pdf
Specifications:
|
Model |
CGFD 8-8-3 |
CGFD 12-12-6 |
CGFD 18-18-6 |
CGFD 24-24-8 |
CGFD 32-32-10 |
CGFD 40-40-10 |
|
Rinsing Head No |
8 |
12 |
18 |
24 |
32 |
40 |
|
Filling Head No |
8 |
12 |
18 |
24 |
32 |
40 |
|
Capping Head No |
3 |
6 |
6 |
8 |
10 |
12/10 |
|
RatedCapacity |
1200-1500BPH |
2500BPH |
3500-4000BPH |
7000-7500BPH |
8000-10000BPH |
10000-12000BPH |
|
Overall Size |
2000*1600* 2300mm |
2200*1600* 2300mm |
2450*1900* 2300mm |
2750*1180* 2400mm |
4000*2300* 2300mm |
4550*2650* 2300mm |
|
Weight |
2T |
2.2T |
3.0T |
4.0T |
8.0T |
12.0T |
|
Power(KW) |
3KW |
3.5kw |
4.0kw |
4.8kw |
7.6kw |
8.3Kw |
|
Rated Voltage |
380V |
380V |
380V |
380V |
380V |
|
