220V PET Bottle Blowing Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Automatic | Application: | Bottle|water Bottle |
|---|---|---|---|
| Plastic Processed: | PET|plastic | Product Name: | Bottle Blowing Machine|stretch Blow Molding Machine |
| Voltage: | 220V|380V | Volume: | 2L |
| Material: | SUS 304 316 | ||
| Highlight: | automatic blow moulding machine,bottle blow molding machine |
||

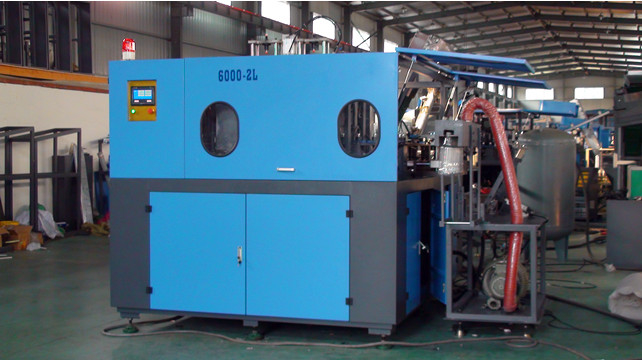

220V PET Bottle Blowing Machine , 2000BPH Auto Blowing Molding Machine
Quick Detail:
- Condition: New
- Application: Bottle
- Plastic Processed: PET
- Blow Moulding Type: Stretch Blow Moulding
- Automatic: Yes
- Model Number: CM-A2
Description:
CM-A2/A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot filling bottle etc.
Applications:
CM-A2 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes.
Specifications:
|
Model |
ITEM |
CM-A2 |
CM-A4 |
|
Productivity |
Depend on bottle design |
1800-2000PCS/H |
3200-4000PCS/H |
|
Product type |
Volume |
0.1-2L |
0.1-2L |
|
Body diameter |
≤100mm |
≤100mm |
|
|
Height |
≤310mm |
≤310mm |
|
|
Neck diameter |
≤38mm |
≤38mm |
|
|
Mould |
Cavity |
2 |
4 |
|
Mold thickness |
240mm |
240mm |
|
|
Mold size |
260*240*370mm |
510*240*360mm |
|
|
Main machine power |
Electrical source power |
380V/220V 50/60HZ 3Phase |
380V/220V 50/60HZ 3Phase |
|
Power |
25kw |
49kw |
|
|
Really use power |
6.5kw |
13kw |
|
|
Air system |
HP air compressor |
1.4 m3/min 3.0Mpa |
2.0 m3/min 3.0Mpa |
|
LP air compressor |
1.0 m3/min 1.0Mpa |
1.6 m3/min 1.0Mpa |
|
|
Air Tank |
0.6m3 3.0Mpa |
0.6m3 3.0Mpa |
|
|
Air dryer |
1.0m3/min 3.0Mpa |
2.0m3/min 3.0Mpa |
|
|
Cooling water |
Water Chiller |
3HP |
3HP |
|
Machine |
Size(L*W*H) |
1900*1280*1930mm |
1900*1860*1930mm |
|
Weight |
2000kg |
3600kg |
|
|
Preform unscrambler |
Size(L*W*H) |
2000*950*2480mm |
2000*950*2480mm |
|
Weight |
250kg |
250kg |
Competitive Advantage:
*Reasonable design, full automaticlly control, save power and labor.

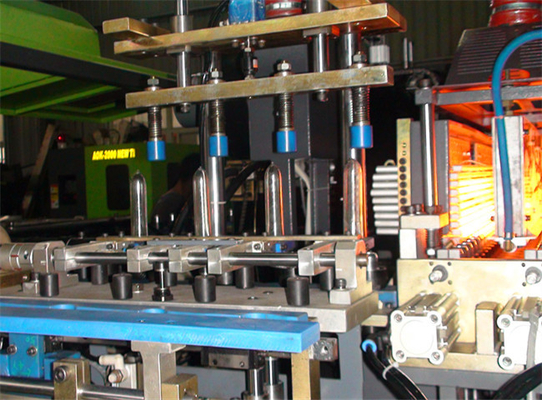

*Feeding system carries the preforms by robot arms automatically.

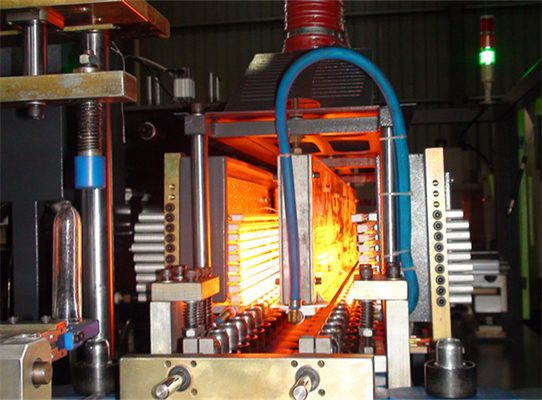

*Infrared oven adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.
